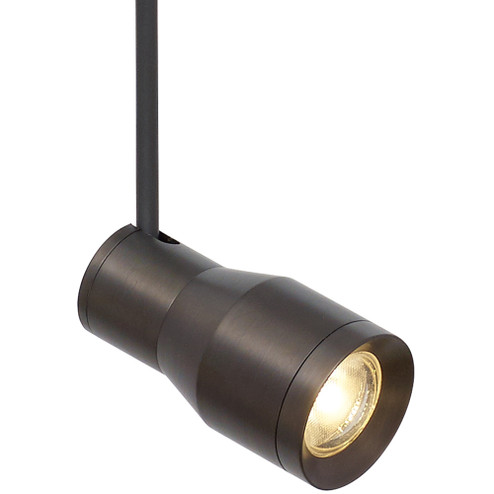

The Ace Task Head light by Sean Lavin is simply efficient featuring a classic adjustable spot head design with variable stem lengths and beam spread choices. Available in modern finishes. This practical and efficient task head scales at 3.5'' in length and 1.8'' in width making it ideal for residential and commercial lighting spaces. Combine the Ace Task Head with our complementary MonoRail system for even greater design customization in your unique space. The Ace comes with your choice of two integrated LED lamp options, both lamps are fully dimmable to create the desired ambiance in your any space. Includes 12 Volt 9.4 Watt, 518.5 Delivered Lumens, 2700K Or 3000K, LED Module. Dimmable With Most LED Compatible Or Elv And Triac Dimmers. Ace Head Can Pivot 90° (Horizontal To Straight Down). Integrated Lens Holder Accommodates Up To (2) Lenses And Louvers (Sold Separately). As A General Rule When Using The Ace Head, We Do Not Recommend Using Greater Than 33% Of The Maximum Wattage Specified For The Low Voltage Transformer Due To Inrush Current Requirements. For Assistance In Calculations, Please Contact Technical Support. {ADDITIONAL FINISH INFORMATION: ''Antique Bronze''}
- OPTION:
- DRY RATED
- SHADE:
- Metal Task Head
- STYLE:
- Contemporary
- STYLE1:
- CONTEMPORARY
- STYLE2:
- Industrial
- STYLE3:
- Mid-Century
- NUMBER OF BULBS:
- 1
- ADDITIONAL INFO:
- Includes 12 volt 9.4 watt 518.5 delivered lumens 2700K or 3000K LED module. Dimmable with most LED compatible or ELV and Triac dimmers. Ace head can pivot 90° (horizontal to straight down). Integrated lens holder accommodates up to (2) ...
- BULB DIMMABLE:
- YES
- BULB SHAPE:
- Integrated LED
- BULB TYPE:
- INTEGRATED LED
- DESIGNER:
- Sean Lavin
- DIAMETER:
- 1.9
- INTRODUCTION DATE:
- 01/01/2018
- KELVIN:
- 3000
- LENGTH:
- 3.60
- MATERIAL:
- Metal
- MAX HEIGHT:
- 5''
- SHIP CARTON HEIGHT:
- 3''
- SHIP CARTON LENGTH:
- 12
- SHIP CARTON WIDTH:
- 3''
- SHIP WEIGHT:
- 2.5
- SPECIAL FEATURES:
- 5 Year Warranty With No Lamping Option. 5 Year Warranty With Led Lamping Option Visit Techlighting.Com For More Warranty Details
- SPECIAL FEATURES1:
- Adjustable Spot Head Design And Variable Stem Length Options Available
- SPECIAL FEATURES2:
- EFFICIENT CLASSIC ADJUSTABLE SPOT HEAD DESIGN
- SPECIAL FEATURES3:
- FROM THE BRAND FORMERLY KNOWN AS TECH LIGHTING
- SPECIAL FEATURES4:
- FULLY DIMMABLE INTEGRATED LED LAMP
- SPECIAL FEATURES5:
- Idea For Residential And Commercial Lighting Applications
- VENDOR SHIP METHOD:
- UPS FEDEX
- VOLTAGE:
- 12 V
- WARRANTY:
- 5 YEARS
- WEIGHT:
- 1.5
- ADA COMPLIANT:
- NO
- ADJUSTABLE HEAD:
- TRUE
- CABLE FIELD CUTTABLE:
- NO
- CANNOT SHIP TO CALIFORNIA:
- FALSE
- CANNOT SHIP TO CANADA:
- FALSE
- CRI:
- 90
- DAMP RATED:
- FALSE
- DARK SKY:
- NO
- DEFAULT WATTAGE:
- 9.4
- DIMMER TYPE:
- ELV TRIAC
- DRY RATED:
- YES
- EFFICACY:
- 55.2
- FWC COMPLIANT:
- FALSE
- HARDWARE MATERIAL:
- Metal
- INTEGRATED LED:
- TRUE
- IS 24 VOLT:
- FALSE
- L70:
- >50000
- LAMP INCLUDED:
- TRUE
- LIGHT OUTPUT:
- 518.5
- MAX WATTAGE:
- 9.4 W
- MINIMUM HEIGHT:
- 5.00''
- MOTION SENSOR INCLUDED:
- FALSE
- PHOTOCELL INCLUDED:
- NO
- REPLACEABLE LAMP:
- NO
- REVERSIBLE:
- FALSE
- SAFETY RATING:
- ETL APPROVED
- SHADE DESCRIPTION:
- Metal task head
- SHADE DIAMETER:
- 1.9
- SHADE HEIGHT:
- 1.9''
- SHADE LENGTH:
- 3.6
- SHADE MATERIAL:
- Metal
- SHADE WIDTH:
- 1.9''
- SHORT DESCRIPTION:
- Mo Ace Hd 9 30 40 5In Bz
- SLOPED CEILING COMPATIBLE:
- NO
- SOLAR POWERED:
- FALSE
- SORAA:
- FALSE
- STOCKING TYPE:
- Assemble to Order
- SYSTEM:
- Monorail
- TITLE 20:
- NO
- TITLE 24:
- YES
- TOTAL MAX WATTAGE:
- 9.4
- TRANSFORMER REQUIRED:
- FALSE
- WARM COLOR DIMMING:
- NO
- WET IP65:
- FALSE
- WET RATED:
- FALSE
- HEIGHT:
- 1.90
- HEIGHT RANGE:
- 0-15''
- WIDTH:
- 1.90
- WIDTH RANGE:
- 0-15''
- CEILING:
- YES
- FINISH:
- BRONZE
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- BULBS:
- 9.4 Watt Integrated LED:9.4 Watt Integrated LED:1
- STANDARD STYLE:
- CONTEMPORARY
- AVAILABLE FOR PURCHASE:
- NO
- QUANTITY AVAILABLE AT MANUFACTURER:
- 0
- OPTION1:
- LED
- OPTION2:
- TITLE 24
- SPECIAL FEATURES6:
- MONOPOINT VERSION - THE LED DRIVER IS HOUSED WITHIN THE JUNCTION BOX FOR THIS PRODUCT
- 24 VOLT:
- FALSE
- BULB BASE:
- INTEGRATED LED
- BULB CRI:
- 90
- BULB INCLUDED:
- YES
- BULB WATTAGE:
- 9.4 W
- ENERGY STAR:
- NO
- PRIMARY MATERIAL:
- METAL
- UPS FEDEX:
- TRUE
- FAMILY:
- ACE
- LUMENS / LIGHT OUTPUT:
- 518.5
- More Info {1}:
- 5 YEAR WARRANTY WITH NO LAMPING OPTION. 5 YEAR WARRANTY WITH LED LAMPING OPTION VISIT TECHLIGHTING.COM FOR MORE WARRANTY DETAILS
- More Info {2}:
- ADJUSTABLE SPOT HEAD DESIGN AND VARIABLE STEM LENGTH OPTIONS AVAILABLE
- More Info {3}:
- EFFICIENT CLASSIC ADJUSTABLE SPOT HEAD DESIGN
- More Info {4}:
- FULLY DIMMABLE INTEGRATED LED LAMP
- More Info {5}:
- IDEA FOR RESIDENTIAL AND COMMERCIAL LIGHTING APPLICATIONS
- BATTERY INCLUDED:
- NO
- IP65 RATED:
- NO
- IS SOLAR POWERED:
- NO
- LED:
- YES
- LOCATION RATING:
- DRY RATED
- MIN HEIGHT:
- 5''
- PROP 65:
- NO
- REVERSABLE:
- NO
- STYLE-2:
- MID-CENTURY
- STYLE-3:
- INDUSTRIAL MODERN
