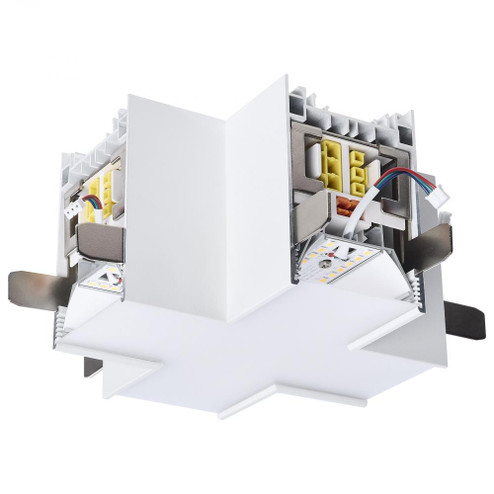

Momentum; X-Connector for LED Linear System; White Finish SATCO's 65-1184 X-Connector is available in a white finish. This accessory item is sold separately for use with the Momentum linear architectural system. It is ideal for complex junction points and multi-directional light runs in grid-like designs. {ADDITIONAL FINISH INFORMATION: ''White''}
- AVAILABLE FOR PURCHASE:
- YES
- WATTAGE:
- 6.6W
- BULB TYPE:
- NOT APPLICABLE
- DIMMABLE:
- YES-DIMMABLE
- KELVIN:
- 3000K/4000K/5000K
- LENGTH:
- 5.8
- LUMENS / LIGHT OUTPUT:
- 750L
- SHIP CARTON HEIGHT:
- 7.87''
- SHIP CARTON LENGTH:
- 7.87
- SHIP CARTON WIDTH:
- 4.33''
- AMPS:
- 0.200A
- AVG RATED HOURS:
- 50000
- BAA COMPLIANT:
- NO
- BEAM ANGLE:
- 120
- CA PROP-65:
- LEAD
- CARTON CUBIC FEET:
- 0.1552
- CARTONS PER UNIT:
- 1
- CCT SELECTABLE:
- YES
- COLOR TEMPERATURE:
- SOFT WHITE TO NATURAL LIGHT
- CRI:
- 80+
- DAMP RATED:
- YES
- DIMENSION STRING:
- L:5.80'' W:5.80'' H:3.40''
- DIMMABLE DOWN TO:
- 100 TO 10 PERCENT
- DIMMABLE FUNCTION:
- 0-10V
- EFFICACY:
- 113.64 LPW
- FCC COMPLIANT:
- YES
- LENS MATERIAL:
- POLYCARBONATE (PC)
- MATERIAL:
- ALUMINUM
- MOUNTING PROCEDURE:
- CEILING/WALL
- OPERATING FREQUENCY:
- 50/60HZ
- OPERATING TEMP:
- -20C (-4F) TO +45C (+113F)
- PACK TYPE:
- BOX
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- SAFETY LISTING:
- CETLUS - LISTED
- SHORT DESCRIPTION:
- LED X-CONNECTOR LINEAR SYSTEM
- TARIFF CODE:
- 9405.11.6010
- UNSPSC:
- 31163100
- WARRANTY:
- 1-YEAR
- QUANTITY AVAILABLE AT MANUFACTURER:
- UNKNOWN
- LOCAL_ON_DISPLAY:
- 0
- ON DISPLAY IN SHOWROOM:
- No
- LOCAL_COUNT_ON_DISPLAY:
- 0
- LOCAL_SALE:
- 0
- LOCAL_COUNT_SALE:
- 0
- LOCAL_IN_STOCK:
- 0
- IN STOCK IN SHOWROOM:
- No
- LOCAL_COUNT-IN_STOCK:
- 0
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- HEIGHT:
- 3.40
- HEIGHT RANGE:
- 0-15''
- WIDTH:
- 5.80
- WIDTH RANGE:
- 0-15''
- FEATURE 1:
- MOMENTUM X-CONNECTOR
- ROMANCE COPY:
- THE SATCO/NUVO MOMENTUM SYSTEM DELIVERS A SEAMLESS CUSTOMIZABLE LIGHTING SOLUTION ENGINEERED FOR ARCHITECTS DESIGNERS AND INSTALLERS WHO NEED BOTH PRECISION AND FLEXIBILITY IN COMMERCIAL HOSPITALITY RETAIL INSTITUTIONAL AND MODERN O...
- IMAGE INFO:
- ''65-1184.JPG:DEFAULT''
- TITLE 20 COMPLIANT:
- EXEMPT
- TITLE 24 COMPLIANT:
- NO
