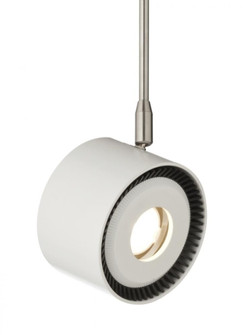

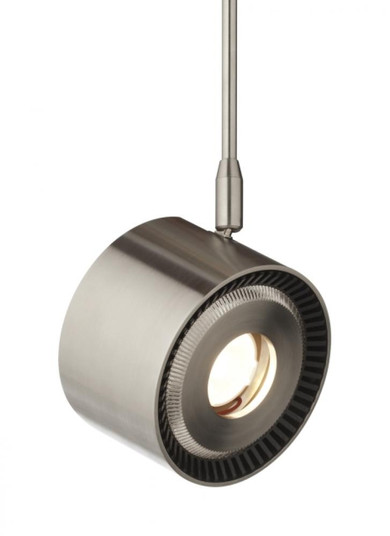

The Iso display head by Sean Lavin combines sleek design with lighting precision. Light hits in the desired location with beam spreads of 20°, 30° or 50°. These wide ranges of light spread are made possible with the Iso due to its full 360° head rotation and 90° pivot. Customize the Iso by combining it with the complementary Monorail or Monopoint systems by Sean Lavin for VC Modern. Available in modern finishes. This low-voltage display head is ideal for commercial lighting applications such as retail stores, libraries and galleries. Includes 16 Watt, 704.1 Delivered Lumens, 3000K, 80 Cri Field Replaceable LED Module. Dimmable To 10% Dimmer Type Determined By Low-Voltage Transformer. The Heat Sink Remains With The Fixture Minimizing Any Waste At The End Of The Lamp Module'S Life. The Head Rotates 360° And Pivots 90° To Direct The Beam. As A General Rule When Using The Iso Head, We Do Not Recommend Using Greater Than 33% Of The Maximum Wattage Specified For The Low-Voltage Transformer Due To The Inrush Current Requirements. For Assistance In Calculations, Please Contact Our Technical Support Department. {ADDITIONAL FINISH INFORMATION: ''Satin Nickel''}
- OPTION:
- DRY RATED
- STYLE:
- Contemporary
- NUMBER OF BULBS:
- 1
- BULB DIMMABLE:
- YES
- BULB TYPE:
- INTEGRATED LED
- CANOPY:
- 4.4 W X 4.4 L X 0.5 H X 4.4 DIA
- INTRODUCTION DATE:
- 01/01/2013
- KELVIN:
- 3000
- MATERIAL:
- Metal
- SHIP CARTON HEIGHT:
- 16''
- SHIP WEIGHT:
- 3
- SPECIAL FEATURES:
- COMPLEMENTRAY MONORAIL OR MONOPOINT SYSTEMS BY TECH LIGHTING
- VENDOR SHIP METHOD:
- UPS FEDEX
- VOLTAGE:
- 120 V
- WEIGHT:
- 1.58
- ADA COMPLIANT:
- NO
- BULB WATTAGE:
- 16 W
- CABLE FIELD CUTTABLE:
- NO
- CRI:
- 90
- DAMP RATED:
- FALSE
- DARK SKY:
- NO
- DRY RATED:
- YES
- ENERGY STAR:
- NO
- FWC COMPLIANT:
- FALSE
- LIGHT OUTPUT:
- 704.1
- PRIMARY MATERIAL:
- Metal
- REVERSIBLE:
- FALSE
- SAFETY RATING:
- ETL APPROVED
- SHORT DESCRIPTION:
- Mp-Iso Hd 930K 20°12In Sn-Led
- STOCKING TYPE:
- Made to Order
- SYSTEM:
- Monopoint
- TITLE 20:
- NO
- TRANSFORMER REQUIRED:
- FALSE
- WARM COLOR DIMMING:
- NO
- WET IP65:
- FALSE
- WET RATED:
- FALSE
- HEIGHT:
- 3.60
- WIDTH:
- 2.80
- FINISH:
- NICKEL
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- BULBS:
- 16 WATT INTEGRATED LED:16 WATT INTEGRATED LED:1
- STANDARD STYLE:
- CONTEMPORARY
- SPECIAL FEATURES1:
- FROM THE BRAND FORMERLY KNOWN AS TECH LIGHTING
- SPECIAL FEATURES2:
- IDEAL FOR COMMERCIAL AND RESIDENTIAL LIGHTING APPLICATIONS
- SPECIAL FEATURES3:
- MONOPOINT VERSION - THE LED DRIVER IS HOUSED WITHIN THE JUNCTION BOX FOR THIS PRODUCT
- SPECIAL FEATURES4:
- PROTECTED BY A 5-YEAR WARRANTY
- SPECIAL FEATURES5:
- SLEEK AND CONTEMPORARY DESIGN COMBINED WITH LIGHTING PRECISION
- WIDTH RANGE:
- 0-15''
- AVAILABLE FOR PURCHASE:
- YES
- QUANTITY AVAILABLE AT MANUFACTURER:
- 85
- STYLE1:
- CONTEMPORARY
- STYLE2:
- INDUSTRIAL
- STYLE3:
- URBAN LOFT
- OPTION1:
- TITLE 24
- BULB HOURS:
- 50000
- BULB SHAPE:
- INTEGRATED LED
- LENGTH:
- 3.60
- MAX HEIGHT:
- 12''
- SHIP CARTON LENGTH:
- 16
- SHIP CARTON WIDTH:
- 16''
- SPECIAL FEATURES6:
- WIDE RANGE OF BEAM SPREADS 20° 30° OR 50°
- WARRANTY:
- 5 YEARS
- WIRE INCLUDED:
- 18''
- 24 VOLT:
- FALSE
- ADJUSTABLE HEAD:
- FALSE
- BULB BASE:
- INTEGRATED LED
- BULB CRI:
- 90
- BULB INCLUDED:
- YES
- CANNOT SHIP TO CALIFORNIA:
- FALSE
- CANNOT SHIP TO CANADA:
- FALSE
- DEFAULT WATTAGE:
- 16
- DESIGNER:
- SEAN LAVIN
- DIMMER TYPE:
- ELV
- EFFICACY:
- 48.75
- INTEGRATED LED:
- FALSE
- L70:
- 50000
- LAMP INCLUDED:
- TRUE
- MAX WATTAGE:
- 16 W
- MINIMUM HEIGHT:
- 12.00''
- MOTION SENSOR INCLUDED:
- FALSE
- PHOTOCELL INCLUDED:
- NO
- REPLACEABLE LAMP:
- NO
- SLOPED CEILING COMPATIBLE:
- NO
- SOLAR POWERED:
- FALSE
- SORAA:
- FALSE
- TITLE 24:
- YES
- TOTAL MAX WATTAGE:
- 16
- UPS FEDEX:
- TRUE
- CEILING:
- YES
- HEIGHT RANGE:
- 0-15''
- BEAM SPREAD:
- 20 DEGREES
- FAMILY:
- ISO
- LUMENS / LIGHT OUTPUT:
- 704.1
- More Info {1}:
- COMPLEMENTARY MONORAIL OR MONOPOINT SYSTEMS BY VISUAL COMFORT MODERN COLLECTION
- More Info {2}:
- IDEAL FOR COMMERCIAL AND RESIDENTIAL LIGHTING APPLICATIONS
- More Info {3}:
- PROTECTED BY A 5-YEAR WARRANTY
- More Info {4}:
- SLEEK AND CONTEMPORARY DESIGN COMBINED WITH LIGHTING PRECISION
- More Info {5}:
- WIDE RANGE OF BEAM SPREADS 20° 30° OR 50°
- BATTERY INCLUDED:
- NO
- HARDWARE MATERIAL:
- METAL
- IP65 RATED:
- NO
- IS SOLAR POWERED:
- NO
- LED:
- NO
- LOCATION RATING:
- DRY RATED
- MIN HEIGHT:
- 12''
- PROP 65:
- NO
- REVERSABLE:
- NO
- STYLE-2:
- MODERN
- STYLE-3:
- INDUSTRIAL URBAN LOFT
- WIRE CORD LENGTH:
- 18''
