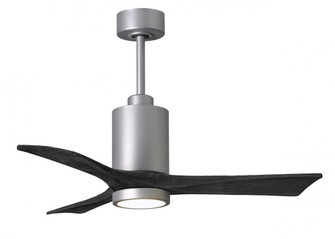

A complement to any commercial or residential space, the PatrÃcia–3 seamlessly combines innovation with simple, refined design. Its elegant aesthetic belies its robust construction. Solid wood walnut, matte black, matte white, or barn wood tone blades revolve around a balanced, cylindrical DC motor housing. Air is circulated efficiently with barely more than a whisper. An eco-conscious LED light kit completes the package, making PatrÃcia–3 sophisticated, efficient and green. Constructed of cast aluminum and heavy stamped steel, the PatrÃcia–3 carries a limited lifetime warranty. {ADDITIONAL FINISH INFORMATION: ''Brushed Nickel''}
- AVAILABLE FOR PURCHASE:
- NO
- REQUIRED (NOT INCLUDED):
- 1 16W WATT INTEGRATED LED BULBS
- SIZE:
- 42
- STYLE:
- CONTEMPORARY TRANSITIONAL
- FAMILY:
- PATRICIA-3
- LUMENS:
- 1063/1088/1234/1221/1107
- AIR FLOW CFM:
- 4285.66
- AIR FLOW EFFICIENCY:
- 166
- BLADE PITCH:
- 15
- BLADES INCLUDED:
- 3
- BULB HOURS:
- 30000
- DEPTH:
- 13'' PLUS DOWNROD
- DOWN ROD INCLUDED:
- 10
- ELECTRICITY USED:
- 16.6
- KELVIN:
- 2700/3000/4000/5000/6500
- MAX HEIGHT:
- 86''
- MOTOR FAN SPEED:
- 6-SPEED
- MOTOR RPM:
- 232
- MOTOR TYPE:
- DC
- SHIP CARTON HEIGHT:
- 17''
- SHIP CARTON LENGTH:
- 28
- SHIP CARTON WIDTH:
- 12''
- SOLD IN PACK OF:
- 2
- WARRANTY:
- LIMITED LIFETIME
- WEIGHT:
- 19
- 12:
- SILENT OPERATION FOR COOLING WITHOUT NOISE
- APPLICATION:
- INDOOR OUTDOOR DAMP KITCHEN LIVINGROOM PATIO LANAI PORCH DEN BEDROOM NOISE SENSITIVE ENVIRONMENTS GREAT ROOM OFFICE
- BLADE MATERIAL:
- SOLID WOOD
- BLADE SHIPPING DIMENSIONS-H:
- 8
- BLADE SHIPPING DIMENSIONS-L:
- 23
- BLADE SHIPPING DIMENSIONS-W:
- 12
- BLADE SHIPPING WEIGHT-LBS:
- 5
- BRAND:
- ATLAS
- CANCELLABILITY - STOCKING:
- YES
- CRI:
- 90
- DIMMABLE LK:
- YES
- FAN SHIPPING WEIGHT-LBS:
- 17
- FEATURE:
- 42'' DIAMETER WITH THREE SOLID WOOD MATTE WHITE MACHINE-CUT BLADES.
- FEATURE1:
- CONSTRUCTED OF CAST ALUMINUM AND HEAVY STAMPED STEEL
- FEATURE2:
- ENERGY EFFICIENT ULTRA-QUIET SIX SPEED REVERSIBLE DC MOTOR WITH NEW RELIABLE TECHNOLOGY.
- FEATURE3:
- LIMITED LIFETIME WARRANTY
- FEATURE4:
- STANDARD EQUIPMENT: SLANT CEILING CANOPY MOUNTING SYSTEM FOR UP TO 29 DEGREES. OPTIONAL 60 DEGREE CATHEDRAL CANOPY MOUNTING SYSTEM AVAILABLE.
- FEATURE5:
- STANDARD EQUIPMENT: - ONE DOWNROD OF 10'' AND CAN BE MOUNTED WITH ANY ONE OF THE FOLLOWING OTHER DOWNROD LENGTHS: 5'' 10'' 20'' 30'' 48'' 72''
- FEATURE6:
- STANDARD EQUIPMENT: 16W LIGHT KIT DELIVERING 690 LUMENS WITH DELIVERED TEMPERATURE OF 3104 K
- FEATURE7:
- STANDARD EQUIPMENT: ONE SIX SPEED HAND-HELD AND ONE SIX SPEED DECORA STYLE WHITE WALL MOUNTED CONTROL. BOTH CONTROLS REVERSE DIRECTION OF FAN.
- HARMONIZED CODE:
- 8414.51.30
- INCLUDED CONTROL EQUIPMENT:
- REMOTE CONTROL WALL CONTROL
- INTEGRATED LIGHT KIT:
- INTEGRATED
- IP RATING:
- IP20
- LEAD TIME:
- 3 DAYS
- LO CRM:
- 860
- LO RPM:
- 52
- LOCATION RATING:
- DAMP RATED
- PROP 20:
- YES
- ROD LENGTH:
- 5'' 10'' 20'' 30'' 48'' 72''
- SAFETY RATING:
- ETL APPROVED CETL APPROVED
- STANDARD CARRIERS:
- FEDEX OR UPS
- QUANTITY AVAILABLE AT MANUFACTURER:
- UNKNOWN
- FINISH:
- NICKEL
- IMAGE INFO:
- ''PA3-BN-MWH-42-01.JPG:DEFAULT''
- LOCAL_ON_DISPLAY:
- 0
- ON DISPLAY IN SHOWROOM:
- No
- LOCAL_COUNT_ON_DISPLAY:
- 0
- LOCAL_SALE:
- 0
- LOCAL_COUNT_SALE:
- 0
- LOCAL_IN_STOCK:
- 0
- IN STOCK IN SHOWROOM:
- No
- LOCAL_COUNT-IN_STOCK:
- 0
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- STANDARD STYLE:
- CONTEMPORARY
- WIDTH:
- 42.00
- WIDTH RANGE:
- 40-45''
- FAN OR PART:
- FAN
- OPTION:
- LED
- OPTION1:
- OUTDOOR
- OPTION2:
- TITLE 20
- VOLTAGE:
- 110 V OR 220 V
- AMPERAGE:
- 0.5
- BLADE SPAN:
- 42
- BULB DIMMABLE:
- YES
- CANOPY:
- 6 W X 6 D X 2 H
- INTRODUCTION DATE:
- 01/01/2020
- LIGHT KIT INCLUDED:
- YES
- LUMENS / LIGHT OUTPUT:
- 1063/1088/1234/1221/1107
- MATERIAL:
- CAST ALUMINUM HEAVY STAMPED STEEL
- ORDER MINIMUM:
- 1
- SHIP WEIGHT:
- 17
- VENDOR SHIP METHOD:
- SMALL PARCEL
- More Info {1}:
- ADJUSTABLE LUMENS AND COLOR TEMPERATURE
- More Info {2}:
- COMPATIBLE WITH SLANTED CEILINGS UP TO 30 DEGREES FOR FLEXIBLE INSTALLATION. OPTIONAL 60 DEGREES CATHEDRAL CANOPY MOUNTING SYSTEM AVAILABLE
- More Info {3}:
- CONSTRUCTED OF CAST ALUMINUM AND HEAVY STAMPED STEEL
- More Info {4}:
- ENERGY EFFICIENT ULTRA-QUIET 6-SPEED REVERSIBLE DC MOTOR WITH NEW RELIABLE TECHNOLOGY
- More Info {5}:
- ENHANCE COMFORT AND EFFICIENCY THROUGHOUT DIFFERENT SEASONS BY ADJUSTING THE DIRECTION OF AIRFLOW WITH THE REVERSE FUNCTION
- More Info {6}:
- IDEAL FOR MEDIUM-SIZED BEDROOMS SMALL HOME OFFICES OR KITCHENS.
- More Info {7}:
- INTEGRATED 5CCT COLOR CHANGING LED ENHANCES THE FUNCTIONALITY OF YOUR SPACE WHILE PROVIDING LONG-TERM COST SAVINGS AND ENVIRONMENTAL BENEFITS
- More Info {8}:
- IP20
- More Info {9}:
- MADE WITH MOISTURE AND HUMIDITY-RESISTANT MATERIALS SUITABLE FOR COVERED OUTDOOR SPACES SUCH AS PATIOS PORCHES OR SUNROOMS
- 10:
- MEDIUM: ROOMS 76-144 SQ. FT. 36-42 INCH BLADE SPAN
- 11:
- ONE 6-SPEED HAND-HELD AND ONE 6-SPEED DECORA STYLE WHITE WALL MOUNTED CONTROL. BOTH CONTROLS CAN REVERSE DIRECTION OF FAN
- 13:
- SOLID WOOD CNC CUT BLADES
- 14:
- STANDARD EQUIPMENT: 10'' DOWNROD. ADDITIONAL DOWNROD LENGTHS ARE AVAILABLE AND SOLD SEPARATELY TO ACHIEVE THE OPTIMAL LOOK AND FUNCTIONALITY FOR YOUR SPACE
- 15:
- THREE SOLID WOOD MACHINE-CUT BLADES
- ASSEMBLY REQUIRED:
- YES
- BLADE SIZE:
- 42
- BLADE WIDTH:
- 7''
- BULB CRI:
- 90
- BULB INCLUDED:
- YES
- CARTON 2 HEIGHT:
- 8''
- CARTON 2 LENGTH:
- 23
- CARTON 2 WEIGHT:
- 5
- CARTON 2 WIDTH:
- 12''
- CFM AVERAGE:
- 2999
- CFM HIGH:
- 5137
- CFM LOW:
- 860
- COLOR:
- NICKEL SILVER GRAY WHITE
- COMMERCIAL OR RESIDENTIAL USE:
- BOTH
- CONTROL FREQUENCY 110V:
- 304MHZ
- CONTROL FREQUENCY 220V:
- 434MHZ
- DELIVERED LUMENS:
- 1063/1088/1234/1221/1107
- DOWNROD DIAMETER:
- 1
- FAN WATTAGE AT HIGH SPEED:
- 16.6
- HANGING TYPE:
- DOWNROD
- HEIGHT ADJUSTABLE:
- YES''
- INCANDESCENT EQUIVALENT:
- 220
- INDOOR:
- YES
- LED:
- YES
- LED MODULE QUANTITY:
- 1
- LED MODULE WATTAGE:
- 22 W
- MARINE RATED:
- NO
- MATERIAL PERCENTAGE:
- 50% CAST ALUMINUM 50% HEAVY STAMPED STEEL
- MAX WATTAGE:
- 16 W
- MIN HEIGHT:
- 19''
- MOTOR REVERSIBLE:
- YES
- NOISE LEVEL:
- SILENT
- NUMBER OF BLADES:
- 3
- NUMBER OF BOXES:
- 2
- NUMBER OF SPEEDS:
- 6
- OSCILLATES:
- NO
- OUTDOOR:
- YES
- PROP 65 DESCRIPTION:
- WARNING: THIS PRODUCT CAN EXPOSE YOU TO CHEMICALS WHICH ARE KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. WWW.P65WARNINGS.CA.GOV.
- RETURNABLE:
- YES
- RPM HIGH:
- 261
- RPM LOW:
- 52
- SHIP CONTAINER:
- BOX
- SHIP LEAD TIME:
- 3 DAYS
- SLOPED CEILING COMPATIBLE:
- YES
- SOCKET TYPE:
- INTEGRATED LED
- TITLE 20:
- YES
- TOTAL WATTAGE:
- 17 W
- WOOD TYPE:
- PAULOWNIA
- CEILING:
- YES
- HEIGHT:
- 14.00
