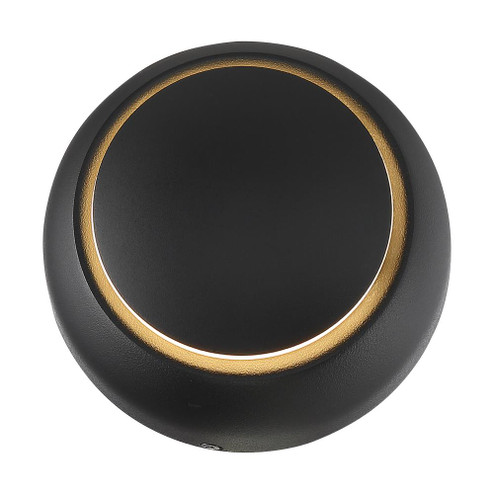

Pinion; LED Sconce; 5W; Black Finish; 3000K {ADDITIONAL FINISH INFORMATION: ''Black''}
- AVAILABLE FOR PURCHASE:
- YES
- REQUIRED (NOT INCLUDED):
- 1 INTEGRATED BULBS
- COLLECTION:
- PINION
- BULB HOURS:
- 30000
- BULB SHAPE:
- INTEGRATED LED
- BULB TYPE:
- LED
- DIMMABLE:
- YES-DIMMABLE
- EXTENDS:
- 2.75
- HARMONIZED CODES:
- 9405.11.6010
- LUMENS:
- 200L
- SHIP CARTON HEIGHT:
- 5.5''
- SHIP CARTON LENGTH:
- 7.88
- SHIP CARTON WIDTH:
- 7.88''
- SHIP WEIGHT:
- 1.57
- WARRANTY:
- 3 YEAR LIMITED - FIXTURES
- CARTON CUBIC FEET:
- 0.1976
- CARTONS PER UNIT:
- 1
- CEC:
- T20 EXEMPT - FIXTURES NOT REGULATED
- COLOR TEMPRATURE:
- WARM WHITE
- CRI:
- 90
- DIMMABLE FUNCTION:
- DIMMING RANGE FROM 100 TO LESS THAN OR EQUAL TO 20 PERCENT DEPENDING ON DIMMER CONTROL
- LOCATION RATING:
- DAMP
- PACK TYPE:
- BOX
- QUANTITY AVAILABLE AT MANUFACTURER:
- 118
- FINISH:
- BLACK
- LOCAL_ON_DISPLAY:
- 0
- ON DISPLAY IN SHOWROOM:
- No
- LOCAL_COUNT_ON_DISPLAY:
- 0
- LOCAL_SALE:
- 0
- LOCAL_COUNT_SALE:
- 0
- LOCAL_IN_STOCK:
- 0
- IN STOCK IN SHOWROOM:
- No
- LOCAL_COUNT-IN_STOCK:
- 0
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- STANDARD STYLE:
- TRANSITIONAL
- HEIGHT:
- 5.50
- HEIGHT RANGE:
- 0-15''
- WIDTH:
- 5.50
- WIDTH RANGE:
- 0-15''
- ANSI BASE:
- INTEGRATED
- CONNECTION:
- DIRECT WIRED
- DIMMING TYPE:
- REVERSE PHASE
- FCC COMPLIANT:
- YES
- FEATURE 1:
- 90 CRI HIGH COLOR RENDITION
- FEATURE 2:
- MODERN STYLE
- FEATURE 3:
- DAMP RATED FOR OUTDOOR USE
- FEATURE 4:
- DIMMABLE LED MODULE BLACK
- FINISH FAMILY:
- BLACK
- INDOOR OUTDOOR:
- OUTDOOR
- LONG DESCRIPTION:
- THE PINION 62-1469 LED 5-WATT OUTDOOR WALL SCONCE FEATURES A BLACK FINISH AND OFFERS DIMMABLE CAPABILITY TO CREATE THE PERFECT MOOD. ELEGANTLY ILLUMINATE PATHWAYS DRIVEWAYS FRONT AND BACK YARDS WITH THIS SLEEK AND CONTEMPORARY OUTDOOR WA...
- MATERIAL:
- ALUMINUM / POLYCARBONATE (PC)
- MOUNTING DIAMETER:
- 5.5
- MOUNTING PROCEDURE:
- WALL
- NUMBER OF LAMPS:
- 1
- POWER FACTOR:
- >0.9
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- TEMPERATURE (CCT):
- 3000K
- TOP TO OUTLET:
- 3.5
- WEIGHT LB.:
- 1.49
- LAMPS:
- YES
- AMPS:
- 0.042A
- SDS SHEET LINK:
- #REF!
- SDS CLASS:
- LED_FIXTURE
- BULB KELVIN:
- WARM WHITE
- CA PROP-65:
- LEAD
- CEC WEB TEXT:
- LAWFUL FOR SALE
- INSTALLATION NOTES:
- TOP TO OUTLET IS 3.50 INCHES WHEN EXTENDED AND 2.50 INCHES WHEN CLOSED.
- REPLACEABLE LIGHT SOURCE:
- NO
- SAFETY LISTING:
- CETLUS - LISTED
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- CCT SELECTABLE:
- NO
- WATTAGE SELECTABLE:
- NO
- INCANDESCENT EQUIVALENT:
- 20W
- REPLACES:
- #REF!
- AVG RATED HOURS:
- 30000
- BULB SHAPE1:
- INTEGRATED LED
- BULB TYPE1:
- LED
- COLOR TEMPERATURE:
- WARM WHITE
- EACH HEIGHT:
- 5.5''
- EACH LENGTH:
- 7.88
- EACH WIDTH:
- 7.88''
- TARIFF CODE:
- 9405.11.6010
- BAA COMPLIANT:
- NO
- DIMMABLE DOWN TO:
- 100 TO 20 PERCENT
- EACH CUBE:
- 0.1976
- EACH QUANTITY:
- 1
- EFFICACY:
- 40.00 LPW
- JA8 COMPLIANT:
- NO
- MOUNTING EXTENDS:
- 1.75
- SHORT DESCRIPTION:
- PINION LED WALL SCONCE
- TITLE 20 COMPLIANT:
- NO
- WALL:
- YES
