- AVAILABLE FOR PURCHASE:
- YES
- QUANTITY AVAILABLE AT MANUFACTURER:
- UNKNOWN
- LOCAL_ON_DISPLAY:
- 0
- ON DISPLAY IN SHOWROOM:
- No
- LOCAL_COUNT_ON_DISPLAY:
- 0
- LOCAL_SALE:
- 0
- LOCAL_COUNT_SALE:
- 0
- LOCAL_IN_STOCK:
- 0
- IN STOCK IN SHOWROOM:
- No
- LOCAL_COUNT-IN_STOCK:
- 0
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- OPTION:
- DAMP RATED
- FAMILY:
- PYRAMID
- GLASS:
- OPAL FROSTED
- NUMBER OF BULBS:
- 1
- AIR FLOW CFM:
- 5217
- AIR FLOW EFFICIENCY:
- 92
- BLADE PITCH:
- 13
- BULB TYPE:
- 18W LED MODULE
- CANOPY:
- 6.1 DIA 2.24 H
- HARMONIZED CODES:
- 8414.51.3000
- KELVIN:
- 3000
- LENGTH:
- 52
- LIGHT KIT INCLUDED:
- YES
- LUMENS / LIGHT OUTPUT:
- 1400
- MOTOR SIZE:
- 153 X 20
- MOTOR TYPE:
- AC
- SHIP CARTON HEIGHT:
- 8.98''
- SHIP CARTON LENGTH:
- 24.41
- SHIP CARTON WIDTH:
- 9.65''
- SHIP WEIGHT:
- 19.29
- SOLD BY:
- EACH
- VOLTAGE:
- 120V
- WARRANTY:
- LIMITED LIFETIME
- WEIGHT:
- 17.4
- More Info {1}:
- 3-SPEED REVERSIBLE AC MOTOR PROVIDES AIRFLOW UP TO 5217 CFM. COMPATIBLE WITH FANIMATION BLUETOOTH FANSYNC AND MOST SMART HOME DEVICES (REQUIRED CONTROLS SOLD SEPARATELY)
- More Info {2}:
- DAMP RATED FOR INDOOR AND OUTDOOR USE
- More Info {3}:
- DOWNROD INCLUDED - 1'' DIAMETER X 4.5'' LENGTH
- More Info {4}:

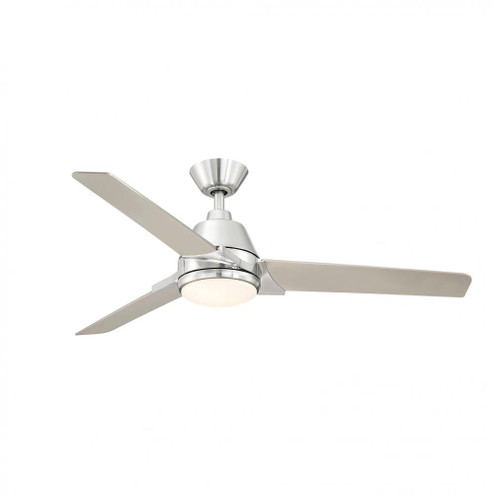

- FEATURES 3 BLADES AND AN 18-WATT LED LIGHT KIT WITH FROSTED GLASS SHADE
- More Info {5}:
- TR500 HAND-HELD REMOTE CONTROL IS INCLUDED. PUSH BUTTON REMOTE CONTROL WITH VARIABLE FAN SPEEDS INFINITE LIGHT LEVELS AND OFF BUTTON
- AIRFLOW EFFICIENCY LOW:
- 171
- AIRFLOW EFFICIENCY MEDIUM:
- 119
- AVG AIRFLOW EFFICIENCY:
- 110
- AVG CFM ENERGY:
- 4165
- AVG ENERGY USE WATTS:
- 38
- AVG ESTIMATED YEARLY ENERGY COST:
- 11
- AVG ESTIMATED YEARLY ENERGY COST ON HIGH:
- 16
- BLADE MATERIAL:
- COMPOSITE
- BLADE REVERSIBLE:
- NO
- BLADE SWEEP:
- 52
- BULB BASE:
- CONNECTOR PIN
- BULB CRI:
- 90
- BULB WATTAGE:
- 18
- CANOPY DIAMETER:
- 6.1
- CANOPY HEIGHT:
- 2.24''
- CAP INCLUDED:
- YES
- CASE QUANTITY:
- 1
- CEC UPLOADED:
- YES
- CEILING TO BLADE EDGE:
- 12.18
- CEILING TO BOTTOM NO LK:
- 13.15
- CEILING TO BOTTOM WITH LK:
- 14.52
- CFM LOW:
- 2166
- CFM MEDIUM:
- 3638
- COMPATIBLE ACCESSORIES:
- CCK8002BN DR1-12BN DR1-18BN DR1-24BN DR1-36BN DR1-48BN DR1-60BN DR1-72BN SCK1-52BN
- COMPATIBLE CONTROLS:
- BTCR9 BTR9 CRL4WH WFR50
- COMPATIBLE WALL CONTROLS:
- CWRL4LA CWRL4WH WC1WH WC2WH WR500WH WR501WH
- CURRENT DRAW HIGH:
- 0.47
- CURRENT DRAW LOW:
- 0.22
- CURRENT DRAW MEDIUM:
- 0.35
- DAMP RATED:
- YES
- DOE CLASSIFICATION:
- LSSD
- DOEFTC UPLOADED:
- YES
- DOWNROD LENGTH:
- 4.5
- EXEMPT FROM DOE PROCEDURE:
- NO
- HOUSING DIAMETER:
- 8.27
- INCLUDED CONTROL:
- TR500
- INCLUDED CONTROL TYPE:
- HANDHELD
- LEADWIRE:
- 54
- MAX CEILING SLOPE:
- 19
- MAX WATT:
- 57
- MOTOR REVERSIBLE:
- YES
- NUMBER OF BLADES:
- 3
- NUMBER OF SPEEDS:
- 3
- REGULATED PRODUCT:
- YES
- REVERSE SWITCH LOCATION:
- MOTOR HOUSING
- RPM HIGH (VI):
- 187
- RPM LOW (II):
- 77
- RPM MEDIUM (IV):
- 131
- SAFETY RATING:
- UL APPROVED CUL APPROVED
- VOLTAGE CYCLES:
- 60HZ
- WATTS LOW:
- 13
- WATTS MEDIUM:
- 31
- WATTS PER BULB:
- 18
- CEILING:
- YES
- WALL:
- YES
- HEIGHT:
- 14.52
- WIDTH:
- 52.00
- WIDTH RANGE:
- 50-55''
- FINISH:
- NICKEL
