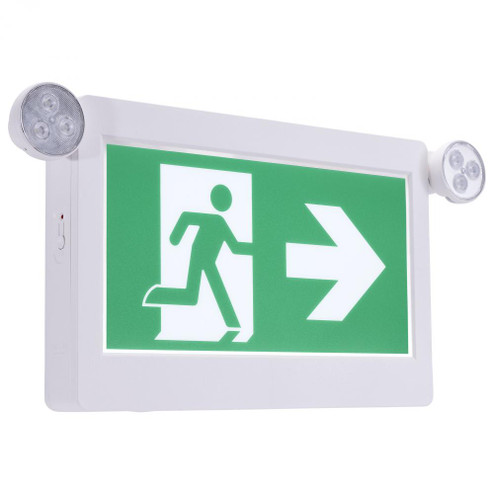

Running Man Green Combo Exit Sign/Emergency Light; 120/347V; 90min backup; Single/Dual Face; Universal Mounting; Thermoplastic; Remote-Capable {ADDITIONAL FINISH INFORMATION: ''White''}
- AVAILABLE FOR PURCHASE:
- NO
- REQUIRED (NOT INCLUDED):
- 1 INTEGRATED BULBS
- STYLE:
- UTILITY
- ADDITIONAL INFO:
- REMOTE CAPABLE POWER RATING: 3.6V/4W
- BULB SHAPE:
- INTEGRATED LED
- BULB TYPE:
- LED
- DIMMABLE:
- NON-DIMMABLE
- HARMONIZED CODES:
- 9405.61.6000
- LUMENS:
- 150L
- SHIP CARTON HEIGHT:
- 9.29''
- SHIP CARTON LENGTH:
- 13.86
- SHIP CARTON WIDTH:
- 2.56''
- WARRANTY:
- 2-YEARS
- AMPS:
- 0.060/0.021A
- ANSI BASE:
- INTEGRATED
- BATTERY CHEMISTRY:
- NI-MH
- CA PROP-65:
- LEAD
- CARTON CUBIC FEET:
- 0.1908
- CARTONS PER UNIT:
- 1
- CCT SELECTABLE:
- NO
- CEC:
- NON-COMPLIANT - ONLY FOR SALE IN CANADA
- CEC TERSE:
- NON-COMPLIANT
- CEC WEB TEXT:
- NON-COMPLIANT
- CRI:
- 80+
- DEPTH:
- 2.58
- EFFICACY:
- 20.83 LPW
- FEATURE 1:
- SINGLE OR DUAL FACE
- FEATURE 10:
- >500 LIFE CYCLES
- FEATURE 2:
- INTEGRATED BATTERY BACKUP
- FEATURE 3:
- INTERCHANGEABLE PICTOGRAMS
- FEATURE 4:
- CEILING WALL OR SIDE MOUNTING ACCESSORIES INCLUDED
- FEATURE 5:
- DAMP LOCATION RATED
- FEATURE 6:
- 90-MINUTE BATTERY RUN TIME
- FEATURE 7:
- COMPLIES WITH ICES-005 CLASS B
- FEATURE 8:
- CSA OSHA AND NFPA COMPLIANT
- FEATURE 9:
- PUSH-TO-TEST BUTTON
- HAS EMERGENCY BATTERY:
- YES
- INDOOR OUTDOOR:
- INDOOR
- IP RATING:
- IP40
- JA8 COMPLIANT:
- NO
- LENS MATERIAL:
- POLYCARBONATE (PC)
- LONG DESCRIPTION:
- KEEP YOUR BUILDING SAFE AND SECURE WITH THE SATCO NUVO 67-512 LED RUNNING MAN SIGNS AND EMERGENCY LIGHT COMBOS. CHOOSE SINGLE OR DUAL-FACE INSTALLATION AND CUSTOMIZE THE INTERCHANGEABLE PICTOGRAMS TO FIT YOUR NEEDS. COMBO MODELS OFFER TWO ...
- MATERIAL:
- THERMOPLASTIC
- MOUNTING PROCEDURE:
- UNIVERSAL
- OPERATING FREQUENCY:
- 50/60HZ
- OPERATING TEMPRATURE:
- +10C (+50F) TO +40C (+104F)
- ORDER IN MULTIPLES OF:
- 1
- PACK TYPE:
- BOX
- POWER FACTOR:
- 0.8
- QUANTITY IN PACK:
- 1
- R9 VALUE:
- 13
- REPLACEABLE LIGHT SOURCE:
- NO
- ROHS COMPLIANT:
- YES
- ROMANCE COPY:
- KEEP YOUR BUILDING SAFE AND SECURE WITH THE SATCO NUVO LED RUNNING MAN SIGNS AND EMERGENCY LIGHT COMBOS. CHOOSE SINGLE OR DUAL-FACE INSTALLATION AND CUSTOMIZE THE INTERCHANGEABLE PICTOGRAMS TO FIT YOUR NEEDS. COMBO MODELS OFFER TWO ADJUSTA...
- SAFETY LISTING:
- CSA - LISTED
- SDS CLASS:
- LED_FIXTURE
- SHORT DESCRIPTION:
- EX COMBO-CAN-RC
- SLOPED CEILING COMPATIBLE:
- NO
- SPECIFICATION NOTES:
- NI-MH BATTERY 90 MINUTE DISCHARGE TIME REMOTE COMPATIBLE 24 HOUR RECHARGE TIME
- TEMPERATURE (CCT):
- 5700K
- TITLE 20 COMPLIANT:
- NO
- TITLE 24 COMPLIANT:
- NO
- TOTAL HARMONIC DISTORTION:
- 35%-45%
- WATTAGE SELECTABLE:
- NO
- WEIGHT LB.:
- 3.31
- CEILING:
- YES
- QUANTITY AVAILABLE AT MANUFACTURER:
- 0
- IMAGE INFO:
- ''67-512.JPG:DEFAULT''
- LOCAL_ON_DISPLAY:
- 0
- ON DISPLAY IN SHOWROOM:
- No
- LOCAL_COUNT_ON_DISPLAY:
- 0
- LOCAL_SALE:
- 0
- LOCAL_COUNT_SALE:
- 0
- LOCAL_IN_STOCK:
- 0
- IN STOCK IN SHOWROOM:
- No
- LOCAL_COUNT-IN_STOCK:
- 0
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- HEIGHT:
- 11.36
- WIDTH:
- 14.84
- HAS CAMERA:
- NO
- IOT ENABLED:
- NO
- BAA COMPLIANT:
- NO
