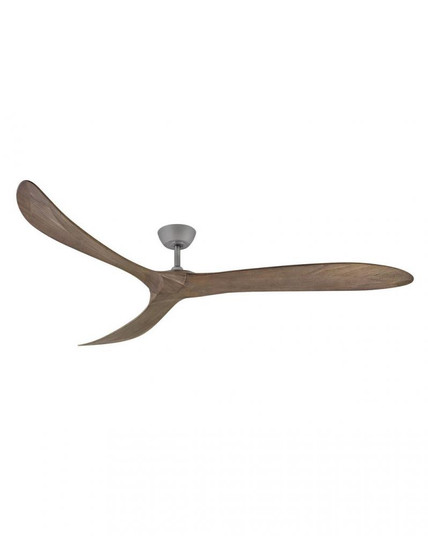

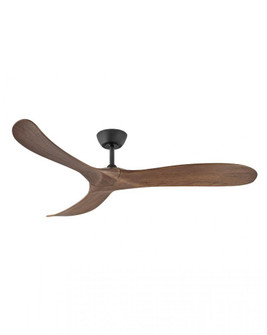

Swell is sophisticated and distinct in design without sacrificing on its purpose. Available in Matte Black with Walnut blades or Graphite with Driftwood blades, Swell sets the tone for all contemporary spaces. Swell is DAMP rated, making it perfect for both interior and outdoor settings.
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- OPTION:
- DAMP RATED
- STYLE:
- Modern
- FAMILY:
- Swell
- AIR FLOW CFM:
- 10955.00
- AIR FLOW EFFICIENCY:
- 10955
- AMPERAGE:
- 0.5
- BLADE FINISH:
- Driftwood
- BLADE PITCH:
- 14
- BLADE SPAN:
- 80
- BLADES INCLUDED:
- 3
- BLADES INCLUDED1:
- YES
- CANOPY:
- 6 DIA. X 2.5 D
- CANOPY1:
- Width: 6''
- ELECTRICITY USED:
- 39.70
- INTRODUCTION DATE:
- 01/01/2021
- LENGTH:
- 80.00
- MATERIAL:
- Steel
- MOTOR RPM:
- 102.0000
- MOTOR TYPE:
- DC
- SHIP CARTON HEIGHT:
- 11.42''
- SHIP CARTON LENGTH:
- 42.91
- SHIP CARTON WIDTH:
- 12.6''
- SHIP WEIGHT:
- 20.29
- VENDOR SHIP METHOD:
- Parcel
- VOLTAGE:
- 120 V
- WEIGHT:
- 17.42
- WIRE INCLUDED:
- 1 X 76''
- BLADE MATERIAL:
- Wood
- BLADE OPTIONS AVAILABLE:
- NO
- BLADE REVERSIBLE:
- NO
- CEILING:
- YES
- CONTROL TYPE:
- HIRO CONTROL - 6 SPEED REVERSING
- DAMP RATED:
- Yes
- DUAL MOUNT:
- NO
- ENERGY COST HIGH:
- 11
- ENERGY COST LOW:
- 6
- ENERGY STAR:
- No
- F&B AUTOMATIC F&B:
- Damp Rated Finish Group - Gray Single Circuit Required Wifi control compatible
- F&B INCLUDED:
- Fan Control included 6 Spd wall
- F&B MOUNTING:
- FAN: 6'' Rod Included FAN: 7ft from floor FAN: Install Slope Ceiling
- F&B STYLE:
- Style Fan - Modern
- FAN CONTROL INCLUDED:
- Yes
- FAN CONTROL PART NUMBER:
- 980014FWH-R
- INSTALL SLOPED CEILING:
- Yes
- LIGHT KIT ADAPTABLE:
- NO
- LIGHT KIT INCLUDED REMOVEABLE:
- NO
- MOTOR NAME:
- 130 X 16
- OPERATING FREQUENCY:
- 60
- OPTIONAL ITEMS:
- 980003FWH 980015FAS-0388
- OPTIONAL REMOTE CONTROL:
- 980003FWH
- OPTIONAL WIFI MODULE ACCESSORY:
- 980015FAS-0388
- PROP 65:
- Yes
- PROP 65 WARNING:
- CALIFORNIA PROP 65: WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- RECEIVER INCLUDED:
- YES
- REVERSING CONTROL:
- Yes
- SINGLE POWER SWITCH:
- YES
- SLOPE DEGREE:
- 20
- TITLE 20:
- NO
- TITLE 24:
- NO
- WIFI CONTROL:
- YES
- FINISH:
- GRAY
- HEIGHT:
- 13.75
- WIDTH:
- 80.00
- STANDARD STYLE:
- MODERN
- More Info {1}:
- BLADES CONTROLS SWITCHES CAPACITORS AND HARDWARE CARRY A 1-YEAR WARRANTY
- MOTOR FAN SPEED:
- 6
- REGENCY SERIES:
- NO
- AVAILABLE FOR PURCHASE:
- YES
- WARRANTY:
- FANS - MOTOR - RES999999 - COM999999 FANS - BLADES CONTROLS SWITCHES CAPACITORS HARDWARE - RES365 - COM365 INDOOR OUTDOOR FANS - BASE WARRANTY - RES730 - COM730
- AIRFLOWCFM LOW:
- 8554
- AIRFLOWEFFICIENCY LOW:
- 433
- AMPS LOW:
- 0.3
- BLADES REVERSIBLE:
- NO
- ELECTRICITYUSED LOW:
- 20
- MOTORRPM LOW:
- 74
- SAFETY RATING:
- ETL APPROVED C-US APPROVED
- SAFETY RATING1:
- ETL
- BULB DIMMABLE:
- DOES NOT APPLY
- BRAND:
- HINKLEY FAN
- CANOPY DEPTH:
- 2.5
- AIRFLOWCFM AVG:
- 8554.0000
- AIRFLOWEFFICIENCY AVG:
- 433.0000
- AMPS AVG:
- 0.3
- ELECTRICITYUSED AVG:
- 20.00
- ENERGY COST AVG:
- 6
- F B INCLUDED:
- FAN CONTROL INCLUDED 6 SPD HIRO:R
- F B MOUNTING:
- FAN: 6 ROD INCLUDED FAN: 7FT FROM FLOOR FAN: INSTALL SLOPE CEILING
- MOTORRPM AVG:
- 74.0000
- QUANTITY AVAILABLE AT MANUFACTURER:
- UNKNOWN
- WIDTH RANGE:
- 56'' AND OVER
- OPTION1:
- PROP 65
- AIR FLOW AVERAGE:
- 433.00
- AIR FLOW EFFICIENCY AVERAGE:
- 6.00
- AMPS AVERAGE:
- 0.30
- BULB INCLUDED:
- NO
- ENERGY USED AVERAGE:
- 20.00
- NUMBER OF BLADES:
- 3
- RPMS AVERAGE:
- 74.00
- RPMS HIGH:
- 102
- WIFI CONTROL INCLUDED:
- YES
- WIFI CONTROL OPTIONAL:
- NO
- MOTOR SIZE:
- 130 X 16
- AIR FLOW CFM1:
- 276.00
- AIR FLOW AVERAGE1:
- 8554.00
- BLADE SWEEP:
- 80
- BULBS INCLUDED:
- NO
- IMAGE INFO:
- ''''
- More Info {2}:
- BOLD SILHOUETTE WITH DRAMATIC DETAILS CREATES A MODERN STATEMENT
- More Info {3}:
- FAN CONTROL INCLUDED HIRO CONTROL - 6 SPEED REVERSING
- More Info {4}:
- FANS SHOULD BE INSTALLED AT A MINIMUM OF 7 FEET FROM THE FLOOR
- More Info {5}:
- FOR MORE INFORMATION ON HOW TO CONTROL YOUR CEILING FAN VIA THE HINKLEY HOME AUTOMATION APP CLICK HERE.
- More Info {6}:
- MOTOR CARRIES A LIFETIME WARRANTY
- More Info {7}:
- POWERED BY A HIGHLY EFFICIENT AND QUIET DC MOTOR
- More Info {8}:
- SUITABLE FOR USE IN DAMP LOCATIONS AS DEFINED BY NEC AND CEC. MEETS UNITED STATES UL UNDERWRITERS LABORATORIES & CSA CANADIAN STANDARDS ASSOCIATION PRODUCT SAFETY STANDARDS.
- More Info {9}:
- THIS ITEM INCLUDES A 6'' DOWN ROD. OTHER VARIOUS LENGTHS OF DOWN RODS ARE AVAILABLE AND SOLD SEPARATELY TO CUSTOMIZE THE INSTALLATION HEIGHT.''
- More Info {10}:
- THIS ITEM MAY BE HUNG ON A SLOPED CEILING
- 10:
- WIFI COMPATIBLE WITH INCLUDED FAN CONTROL
- AIRFLOW AVG:
- 8554
- AVG ENERGY USE:
- 20
- BLADE TO CEILING HEIGHT:
- 13.75''
- EFFICIENCY AVG:
- 433
- EFFICIENCY HIGH:
- 276
- ENERGY USE HIGH:
- 39.7
- FLUSH MOUNT FAN:
- NO
- LOCATION RATING:
- DAMP RATED
- PROP 65 DESCRIPTION:
- CALIFORNIA PROP 65: WARNING: THIS PRODUCT CAN EXPOSE YOU TO CHEMICALS INCLUDING LEAD WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. FOR MORE INFORMATION GO TO WWW.P65WARNINGS.CA.GOV
- RPMS AVG:
- 74
- SLOPED CEILING ADAPTABLE:
- YES
- STAND BY POWER:
- 0.2
