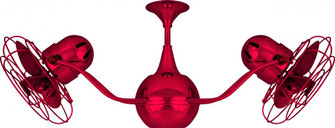

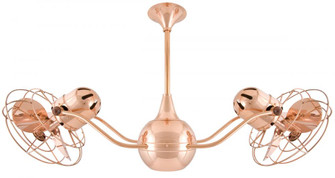

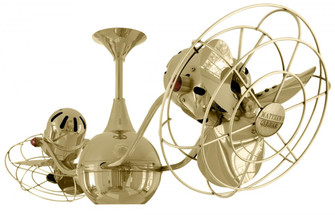

The Vent-Bettina 360° rotational fan is thoughtfully designed with its arms gently upward curving. The fan offers fluid lines and quiet axial rotation with motor heads which can be infinitely positioned in 180-degree arcs for optimum air movement; the greater the angles of the motors to the horizontal support rods (up or down), the faster the axial rotation. A slow, controlled axial rotation is achieved by both fan head position and fan blade speed. Matthews 360° rotational fans circulate heat and air conditioning more efficiently than traditional paddle fans. Constructed of cast aluminum, heavy spun and stamped steel, the Vent-Bettina carries a limited lifetime warranty. {ADDITIONAL FINISH INFORMATION: ''Polished Chrome''}
- AVAILABLE FOR PURCHASE:
- NO
- STYLE:
- CONTEMPORARY TRANSITIONAL
- FAMILY NAME:
- VENT-BETTINA
- AIR FLOW CFM:
- 2077
- AIR FLOW EFFICIENCY:
- 23.17
- BLADE PITCH:
- 31 DEGREES
- BLADES INCLUDED:
- 6
- DEPTH:
- 7'' PLUS DOWNROD
- DOWN ROD INCLUDED:
- LENGTH- 10'' DIAMETER- 3/4''
- ELECTRICITY USED:
- 89.63
- MAX HEIGHT:
- 7'' PLUS DOWNROD''
- MOTOR FAN SPEED:
- 3-SPEED
- MOTOR RPM:
- 1101
- MOTOR TYPE:
- AC
- SHIP CARTON HEIGHT:
- 11''
- SHIP CARTON LENGTH:
- 34
- SHIP CARTON WIDTH:
- 14''
- SOLD IN PACK OF:
- 2
- WARRANTY:
- LIMITED LIFETIME
- WEIGHT:
- 19
- 120 V SAFETY RATING:
- UL CUL
- APPLICATION:
- INDOOR OUTDOOR DAMP KITCHEN LIVINGROOM PATIO LANAI PORCH DEN GREAT ROOM
- BLADE MATERIAL:
- ALUMINUM
- BLADE SHIPPING DIMENSIONS-H:
- 11
- BLADE SHIPPING DIMENSIONS-L:
- 16
- BLADE SHIPPING DIMENSIONS-W:
- 15
- BLADE SHIPPING WEIGHT-LBS:
- 8
- BRAND:
- MATTHEWS-GERBAR
- CANCELLABILITY - STOCKING:
- YES
- FAN SHIPPING WEIGHT-LBS:
- 22
- FEATURE:
- CONSTRUCTED OF CAST ALUMINUM HEAVY SPUN AND STAMPED STEEL THS FAN CARRIES A LIMITED LIFETIME WARRANTY.
- FEATURE1:
- DAMP LOCATION WITH POWDER OR CLEAR COAT ONLY. NOT RECOMMENDED FOR SALT WATER/OCEAN FRONT APPLICATIONS.
- FEATURE2:
- EACH UNIQUE MOTOR MOUNT AND FAN HEAD KNOB IS MADE OF GENUINE MARBLEIZED BAKELITE.
- FEATURE3:
- MATTHEWS ROTATIONAL FANS CIRCULATE HEAT AND AIR CONDITIONING MORE EFFICIENTLY THAN TRADITIONAL PADDLE FANS.
- FEATURE4:
- SAFETY CAGES AVAILABLE FOR LOW CEILING APPLICATIONS.
- FEATURE5:
- STANDARD EQUIPMENT: 10'' DOWNROD. **OPTIONAL: 20'' 30'' 48'' OR 72'' DOWNRODS AVAILABLE. DOWNRODS CAN BE EASILY FIELD CUT THEY ARE NOT THREADED.
- FEATURE6:
- STANDARD EQUIPMENT: DECORA-STYLE 3-SPEED WALL SWITCH IN WHITE.
- FEATURE7:
- STANDARD EQUIPMENT: FLAT CEILING CANOPY. COMPATIBLE WITH 29 DEGREE SLANT CEILING CANOPY.
- FEATURE8:
- STANDARD EQUIPMENT: WHITE 3 SPEED DECORA STYLE WALL CONTROL
- FEATURE9:
- THE FOLLOWING BLADE OPTIONS ARE AVAILABLE: METAL BLADES WITH DECORATIVE METAL BLADE GUARDS METAL BLADES WITH METAL SAFETY CAGES FOR USE IN LOW CEILING APPLICATIONS (7 FT IN US / 8.2 FT IN CANADA) OR SOLID ECOLOGICALLY HARVESTED BRAZILIAN...
- HARMONIZED CODE:
- 8414.51.30
- INCLUDED CONTROL EQUIPMENT:
- WALL CONTROL
- INTEGRATED LIGHT KIT:
- NO
- IP RATING:
- NOT AVAILABLE
- LEAD TIME:
- 1-3 DAYS
- LO CRM:
- 1346
- LO RPM:
- 699
- LOCATION RATING:
- INTERIOR
- PROP 20:
- YES
- ROD LENGTH:
- 10'' 20'' 30'' 48'' 72''
- SAFETY RATING FILE NUMBERS:
- E153494
- STANDARD CARRIERS:
- FEDEX OR UPS
- QUANTITY AVAILABLE AT MANUFACTURER:
- 4
- FINISH:
- CHROME
- IMAGE INFO:
- ''''
- LOCAL_ON_DISPLAY:
- 0
- ON DISPLAY IN SHOWROOM:
- No
- LOCAL_COUNT_ON_DISPLAY:
- 0
- LOCAL_SALE:
- 0
- LOCAL_COUNT_SALE:
- 0
- LOCAL_IN_STOCK:
- 0
- IN STOCK IN SHOWROOM:
- No
- LOCAL_COUNT-IN_STOCK:
- 0
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- STANDARD STYLE:
- TRADITIONAL
- WIDTH:
- 42.00
- WIDTH RANGE:
- 40-45''
- FAN OR PART:
- FAN
