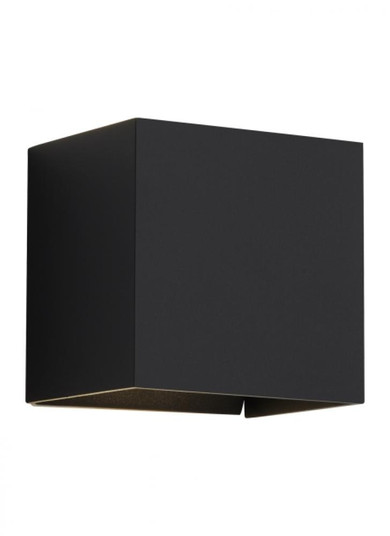

With its unassuming minimalist profile, The Vex 5 outdoor LED wall sconce from VC Modern features your choice of down-only or up- and down-light exterior wall illumination and delivers a wide range of optical control in a unique and deceptively simple design. Vex is ideal for outdoor (or indoor) accent lighting, ambient lighting, wall grazing, and way-finding applications where beam angle is critical or being used to add dramatic effects. Independent, up and down beam angles from 10° - 120° are achieved with simple tool-free adjustment. Beams can be set symmetric or asymmetric in both directions and are lockable. Plus, angle markers ensure consistent and precise aiming and adjustment from fixture to fixture. Available in modern finishes. ADA Compliant. {ADDITIONAL FINISH INFORMATION: ''Black''}
- OPTION:
- ADA COMPLIANT
- STYLE:
- Contemporary
- NUMBER OF BULBS:
- 1
- BACKPLATE HEIGHT:
- 4.6''
- BACKPLATE WIDTH:
- 4''
- BULB DIMMABLE:
- YES
- BULB HOURS:
- 30000
- BULB SHAPE:
- Integrated LED
- EXTENSION:
- 2.4
- INTRODUCTION DATE:
- 07/01/2018
- KELVIN:
- 2700
- LENGTH:
- 4.60
- MATERIAL:
- ALUMINUM
- SHIP CARTON HEIGHT:
- 10''
- SHIP CARTON LENGTH:
- 10
- SHIP CARTON WIDTH:
- 10''
- SHIP WEIGHT:
- 4.5
- SPECIAL FEATURES:
- 5-year Warranty. Go to www.techlighting.com for warranty details.
- VENDOR SHIP METHOD:
- UPS FEDEX
- VOLTAGE:
- 120 V
- WARRANTY:
- 5 Years
- WEIGHT:
- 2.4
- WIRE INCLUDED:
- 8''
- 24 VOLT:
- FALSE
- ADA COMPLIANT:
- YES
- BACKPLATE DEPTH:
- 4
- BACKPLATE LENGTH:
- 4.6
- BULB WATTAGE:
- 18.7 W
- CABLE FIELD CUTTABLE:
- NO
- CRI:
- 90
- DAMP RATED:
- FALSE
- DARK SKY:
- NO
- DIMMER TYPE:
- 0-10 ELV TRIAC
- DRY RATED:
- FALSE
- ENERGY STAR:
- NO
- FWC COMPLIANT:
- FALSE
- INTEGRATED LED:
- TRUE
- LIGHT OUTPUT:
- 554
- MOTION SENSOR INCLUDED:
- FALSE
- PHOTOCELL INCLUDED:
- NO
- PRIMARY MATERIAL:
- Aluminum
- REPLACEABLE LAMP:
- NO
- REVERSIBLE:
- FALSE
- SAFETY RATING:
- ETL APPROVED
- SHADE HEIGHT:
- 4.6''
- SHADE LENGTH:
- 4.6
- SHADE WIDTH:
- 3.9''
- SHORT DESCRIPTION:
- Vex Adjust Wall 927 4In Bk Unv
- SOLAR POWERED:
- FALSE
- SORAA:
- FALSE
- STOCKING TYPE:
- Made to Order
- SYSTEM:
- Outdoor
- TITLE 20:
- NO
- TITLE 24:
- YES
- TRANSFORMER REQUIRED:
- FALSE
- WARM COLOR DIMMING:
- NO
- WET IP65:
- TRUE
- WET RATED:
- YES
- HEIGHT:
- 4.60
- WIDTH:
- 4.00
- FINISH:
- BLACK
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- BULBS:
- 18.7 WATT INTEGRATED LED:18.7 WATT INTEGRATED LED:1
- STANDARD STYLE:
- CONTEMPORARY
- SPECIAL FEATURES1:
- Angle Markers Ensure Consistent And Precise Aiming And Adjustment From Fixture To Fixture.
- SPECIAL FEATURES2:
- FOR UP- AND DOWN-LIGHT OPTION LIGHT DIRECTION IS INDEPENDENTLY CONTROLLED. SYMMETRIC OR ASYMMETRIC BEAM ANGLES CAN BE SET FROM 10° - 120° WITH SIMPLE TOOL-FREE ADJUSTMENT.
- SPECIAL FEATURES3:
- FROM THE BRAND FORMERLY KNOWN AS TECH LIGHTING
- SPECIAL FEATURES4:
- THE LED DRIVER IS HOUSED WITHIN THE JUNCTION BOX FOR THIS PRODUCT
- SPECIAL FEATURES5:
- WET LISTED IP65 (INTERNATIONAL PROTECTION RATING INDICATING RESISTANCE TO DUST AND WATER. SUITABLE AND SAFE FOR COMMERCIAL USE).
- HEIGHT RANGE:
- 0-15''
- WIDTH RANGE:
- 0-15''
- Currently Unavailable:
- 0
- AVAILABLE FOR PURCHASE:
- YES
- QUANTITY AVAILABLE AT MANUFACTURER:
- 135
- STYLE1:
- CONTEMPORARY
- STYLE2:
- MINIMALIST
- STYLE3:
- MODERN
- OPTION1:
- LED
- OPTION2:
- TITLE 24
- OPTION3:
- WET RATED
- OPTION4:
- WET RATED
- BULB TYPE:
- INTEGRATED LED
- ADJUSTABLE HEAD:
- FALSE
- BULB BASE:
- INTEGRATED LED
- BULB CRI:
- 90
- BULB INCLUDED:
- YES
- CANNOT SHIP TO CALIFORNIA:
- FALSE
- CANNOT SHIP TO CANADA:
- FALSE
- DEFAULT WATTAGE:
- 0
- EFFICACY:
- 29.6
- EXTENSION FROM WALL:
- 3.9
- FROM CENTER JBOX HEIGHT:
- 2.3''
- L70:
- >60000
- LAMP INCLUDED:
- TRUE
- MAX WATTAGE:
- 0
- SLOPED CEILING COMPATIBLE:
- NO
- START TEMPERATURE:
- -30°C
- TOTAL MAX WATTAGE:
- 0
- UPS FEDEX:
- TRUE
- CEILING:
- YES
- FAMILY:
- VEX
- LUMENS / LIGHT OUTPUT:
- 554
- More Info {1}:
- 5-YEAR WARRANTY. GO TO WWW.TECHLIGHTING.COM FOR WARRANTY DETAILS.
- More Info {2}:
- ANGLE MARKERS ENSURE CONSISTENT AND PRECISE AIMING AND ADJUSTMENT FROM FIXTURE TO FIXTURE.
- More Info {3}:
- FOR UP- AND DOWN-LIGHT OPTION LIGHT DIRECTION IS INDEPENDENTLY CONTROLLED. SYMMETRIC OR ASYMMETRIC BEAM ANGLES CAN BE SET FROM 10° - 120° WITH SIMPLE TOOL-FREE ADJUSTMENT.
- More Info {4}:
- THE LED DRIVER IS HOUSED WITHIN THE JUNCTION BOX FOR THIS PRODUCT
- More Info {5}:
- WET LISTED IP65 (INTERNATIONAL PROTECTION RATING INDICATING RESISTANCE TO DUST AND WATER. SUITABLE AND SAFE FOR COMMERCIAL USE).
- BATTERY INCLUDED:
- NO
- HARDWARE MATERIAL:
- STEEL
- IP65 RATED:
- YES
- IS SOLAR POWERED:
- NO
- LED:
- YES
- LOCATION RATING:
- WET RATED
- PROP 65:
- NO
- REVERSABLE:
- NO
- STYLE-2:
- MODERN
- STYLE-3:
- MINIMALIST
- WIRE CORD LENGTH:
- 8''
