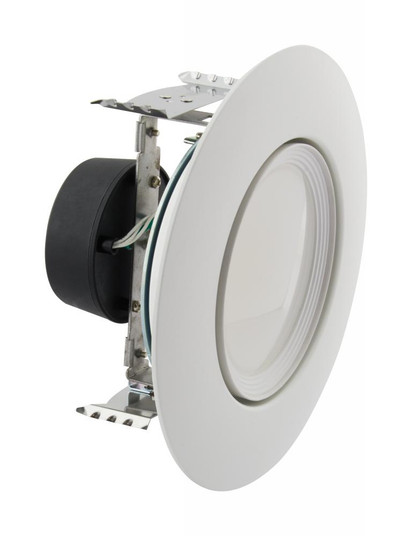

10.5 Watt LED Directional Retrofit Downlight - Gimbaled; 5-6 in.; Adjustable Color Temperature; 90 deg. Beam Angle; 120 Volt {ADDITIONAL FINISH INFORMATION: ''White''}
- STYLE:
- MODERN AND CONTEMPORARY
- ADDITIONAL INFO:
- GU10 and GU24 Adapters sold separately
- BULB DIMMABLE:
- Yes - Dimmable
- BULB HOURS:
- 50000
- BULB TYPE:
- LED
- DIAMETER:
- 7.4
- HARMONIZED CODES:
- 8539.52.0091
- LUMENS:
- 800L
- SHIP CARTON HEIGHT:
- 8.07''
- SHIP CARTON LENGTH:
- 4.53
- SHIP CARTON WIDTH:
- 8.27''
- WARRANTY:
- 5 Year Limited - Fixtures
- BEAM SPREAD:
- 90
- CA PROP-65:
- Lead
- CARTON CUBIC FEET:
- 0.175
- CARTONS PER UNIT:
- 1
- CEC:
- CALIFORNIA T24 2016 - 2022 JA8 LISTED T20 LISTED
- CEC TERSE:
- Lawful for sale in California
- CEC WEB TEXT:
- CALIFORNIA T24 LISTED
- CRI:
- 90
- INCANDESCENT EQUIVALENT:
- 65W
- OPERATING TEMPRATURE:
- -20C (-4F) TO +40C (+104F)
- PACK TYPE:
- Box
- REPLACEABLE LIGHT SOURCE:
- No
- REPLACES:
- S39472 S39473 S39474
- SAFETY LISTING:
- CULUS - CLASSIFIED CULUS - CERTIFIED
- HEIGHT:
- 3.90
- HEIGHT RANGE:
- 0-15''
- WIDTH:
- 7.40
- WIDTH RANGE:
- 0-15''
- FINISH:
- WHITE
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- STANDARD STYLE:
- MODERN
- BULB KELVIN:
- Warm to Cool White
- DIMMABLE:
- Yes-Dimmable
- DIMMABLE TYPE:
- Triac
- AVAILABLE FOR PURCHASE:
- NO
- BULB SHAPE:
- INTEGRATED LED
- DIMMABLE FUNCTION:
- DIMMING RANGE FROM 100 TO LESS THAN OR EQUAL TO 20 PERCENT DEPENDING ON DIMMER CONTROL
- REQUIRED (NOT INCLUDED):
- 1 MEDIUM ADAPTER BULBS
- QUANTITY AVAILABLE AT MANUFACTURER:
- 5320
- ANSI BASE:
- E26 ADAPTER
- CAN SIZE:
- 5-6 IN.
- CCT SELECTABLE:
- YES
- CONNECTION:
- DIRECT WIRED
- DIMMING TYPE:
- FORWARD PHASE OR REVERSE PHASE OR PHASE SELECTABLE
- ES UNIQUE ID:
- ESID-2362150
- FCC COMPLIANT:
- YES
- FEATURE 1:
- COLOR RANGE: 2700K 3000K 3500K 4000K AND 5000K
- FEATURE 2:
- ENERGY STAR CERTIFIED
- FEATURE 3:
- 50000 AVERAGED RATED HOURS OF USE
- FEATURE 4:
- TITLE 20 AND TITLE 24 COMPLIANT
- FEATURE 5:
- FIVE YEAR LIMITED WARRANTY
- FEATURE 6:
- DAMP LOCATION RATED
- FINISH FAMILY:
- WHITE
- FIXTURE SHAPE:
- ROUND
- FLICKER FREE:
- NO
- HAS DRIVER:
- YES
- IC RATED:
- YES
- INCLUDES:
- E26 ADAPTER
- INDOOR OUTDOOR:
- INDOOR
- LENS FINISH:
- FROST
- LENS MATERIAL:
- POLYCARBONATE (PC)
- LONG DESCRIPTION:
- EXPAND YOUR OPTIONS WITH SATCO'S S11824 10.5-WATT COLOR-SELECTABLE DOWNLIGHT RETROFIT. THE COLORQUICK (R) RETROFIT CAN BE SET TO ONE OF FIVE COLOR TEMPERATURES FROM WARM TO COOL. THE CCT VARIATIONS SUIT NUMEROUS APPLICATIONS. THERE IS NO M...
- MATERIAL:
- ALUMINUM
- MOUNTING PROCEDURE:
- CEILING
- NUMBER OF LAMPS:
- 1
- OPERATING FREQUENCY:
- 60HZ
- POWER FACTOR:
- >0.9
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- SPECIFICATION NOTES:
- GIMBALED - ROTATES 355 DEGREES AND TILTS 30 DEGREES AIMING ANGLE: 22 DEGREES
- TEMPERATURE (CCT):
- 2700K/3000K/3500K/4000K/5000K
- TRIM COLOR:
- WHITE
- WEIGHT LB.:
- 0.84
- LAMPS:
- YES
- AMPS:
- 0.088A
- ORDER IN MULTIPLES OF:
- 1
- More Info {1}:
- GU10 AND GU24 ADAPTERS SOLD SEPARATELY
- More Info {2}:
- COLOR RANGE: 2700K 3000K 3500K 4000K AND 5000K
- More Info {3}:
- DAMP LOCATION RATED
- More Info {4}:
- ENERGY STAR CERTIFIED
- More Info {5}:
- FIVE YEAR LIMITED WARRANTY
- More Info {6}:
- TITLE 20 AND TITLE 24 COMPLIANT
- SDS CLASS:
- LED_FIXTURE
- WATTAGE SELECTABLE:
- NO
- BAA COMPLIANT:
- NO
- DIMMABLE DOWN TO:
- 100 TO 10 PERCENT
- EFFICACY:
- 76.19 LPW
- JA8 COMPLIANT:
- YES
- ROMANCE COPY:
- EXPAND YOUR OPTIONS WITH SATCO'S 10.5-WATT COLOR-SELECTABLE DOWNLIGHT RETROFIT. THE COLORQUICK (R) RETROFIT CAN BE SET TO ONE OF FIVE COLOR TEMPERATURES FROM WARM TO COOL. THE CCT VARIATIONS SUIT NUMEROUS APPLICATIONS. THERE IS NO MAINTENA...
- SHORT DESCRIPTION:
- 10.5WLED/DIR/5-6/90'/CCT-SEL
- TITLE 20 COMPLIANT:
- YES
- TITLE 24 COMPLIANT:
- YES
