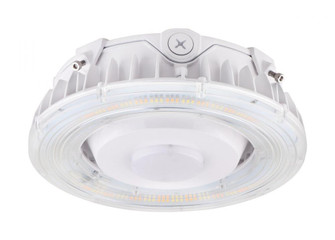

LED Canopy Fixture; 100 Watt; CCT Selectable; White Finish; 120-277 Volt {ADDITIONAL FINISH INFORMATION: ''White''}
- STYLE:
- Utility
- BULB DIMMABLE:
- 1-10V Dimming Only
- BULB HOURS:
- 50000
- BULB TYPE:
- LED
- DIAMETER:
- 11.03
- HARMONIZED CODES:
- 9405.11.6020
- LUMENS:
- 11946L-13999L
- SHIP CARTON HEIGHT:
- 5.51''
- SHIP CARTON LENGTH:
- 12.8
- SHIP CARTON WIDTH:
- 12.8''
- SHIP WEIGHT:
- 8.800000000000001
- WARRANTY:
- 5-YEARS
- WIRE INCLUDED:
- 11.81
- BEAM ANGLE:
- 150
- CARTON CUBIC FEET:
- 0.5224
- CARTONS PER UNIT:
- 1
- CEC:
- T20 EXEMPT - FIXTURES NOT REGULATED
- CRI:
- 80+
- DLC APPROVED:
- Yes
- DLC ID:
- PLWBA3TCFVN1
- IP RATING:
- IP65
- LOCATION RATING:
- Wet
- OPERATING TEMP:
- -30C (-22F) TO +50C (+122F)
- PACK TYPE:
- Box
- WIRE COLOR:
- WHITE / BLACK / GREEN / GRAY / YELLOW
- HEIGHT:
- 3.13
- WIDTH:
- 11.03
- FINISH:
- SPECIALTY ITEMS
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- STANDARD STYLE:
- TRADITIONAL
- COLOR TEMPRATURE:
- Warm to Cool White
- DIMMABLE:
- Yes-Dimmable
- DIMMABLE FUNCTION:
- 0-10V DIMMING
- HEIGHT RANGE:
- 0-15''
- BULB SHAPE:
- INTEGRATED LED
- AVAILABLE FOR PURCHASE:
- YES
- REQUIRED (NOT INCLUDED):
- 1 INTEGRATED BULBS
- QUANTITY AVAILABLE AT MANUFACTURER:
- 71
- ANSI BASE:
- INTEGRATED
- B_U_G_RATING:
- B3-U3-G3
- CCT SELECTABLE:
- YES
- CONNECTION:
- HARDWIRE
- DIMMING TYPE:
- 0-10V DIMMING
- DLC CLASSIFICATION:
- PREMIUM
- DLC PRIMARY USE:
- PARKING GARAGE LUMINAIRES
- FCC COMPLIANT:
- YES
- FEATURE 1:
- ADJUSTABLE COLOR TEMPERATURE: 3000K 4000K 5000K
- FEATURE 2:
- ADJUSTABLE LUMEN RANGE: 11946~13999
- FEATURE 3:
- DLC PREMIUM CERTIFIED
- FEATURE 4:
- 1-10V DIMMING
- FEATURE 5:
- IP65 RATED
- FEATURE 6:
- 150 DEGREE BEAM SPREAD
- FEATURE 7:
- 150 DEGREE BEAM SPREAD
- FINISH FAMILY:
- WHITE
- IC RATED:
- YES
- INDOOR OUTDOOR:
- OUTDOOR
- LENS FINISH:
- CLEAR
- LENS MATERIAL:
- POLYCARBONATE (PC)
- MATERIAL:
- DIE-CAST ALUMINUM
- MOUNTING PROCEDURE:
- CEILING
- NUMBER OF LAMPS:
- 1
- OPERATING FREQUENCY:
- 50-60HZ
- POWER FACTOR:
- 0.9
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- SDS CLASS:
- LED_FIXTURE
- TEMPERATURE (CCT):
- 3000K/4000K/5000K
- WEIGHT LB.:
- 6.56
- WIRE QUANTITY:
- 5
- WIRE TEMP RATING:
- 105C (221F)
- LAMPS:
- YES
- AMPS:
- 1.000-0.361A
- SDS SHEET LINK:
- #REF!
- LONG DESCRIPTION:
- SATCO NUVO'S 65-631 100-WATT LED CANOPY LIGHT COMBINES RUGGED CONSTRUCTION AND VERSATILITY. THE SELECTABLE COLOR TEMPERATURES COUPLED WITH A VARIETY OF SURFACE AND PENDANT MOUNT OPTIONS COVER A MULTITUDE OF APPLICATIONS. THIS VERSATILE C...
- BULB KELVIN:
- WARM TO COOL WHITE
- BEAM SPREAD:
- 150
- CA PROP-65:
- LEAD
- INCANDESCENT EQUIVALENT:
- 300W
- OPERATING TEMPRATURE:
- -22F TO +122F (-30C TO +50C)
- REPLACEABLE LIGHT SOURCE:
- NO
- SAFETY LISTING:
- CULUS - LISTED
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- CEC WEB TEXT:
- LAWFUL FOR SALE
- IMPACT RATING (IK):
- IK10
- WATTAGE SELECTABLE:
- NO
- REPLACES:
- #REF!
- AVG RATED HOURS:
- 50000
- BULB SHAPE1:
- INTEGRATED LED
- BULB TYPE1:
- LED
- COLOR TEMPERATURE:
- WARM TO COOL WHITE
- EACH HEIGHT:
- 5.51''
- EACH LENGTH:
- 12.8
- EACH WIDTH:
- 12.8''
- TARIFF CODE:
- 9405.11.6020
- WIRE LENGTH:
- 11.81
- BAA COMPLIANT:
- NO
- DIMMABLE DOWN TO:
- 100 TO 20 PERCENT
- EACH CUBE:
- 0.5224
- EACH QUANTITY:
- 1
- EFFICACY:
- 119.46/129.73/139.99 LPW
- JA8 COMPLIANT:
- NO
- ROMANCE COPY:
- SATCO NUVO'S 100-WATT LED CANOPY LIGHT COMBINES RUGGED CONSTRUCTION AND VERSATILITY. THE SELECTABLE COLOR TEMPERATURES COUPLED WITH A VARIETY OF SURFACE AND PENDANT MOUNT OPTIONS COVER A MULTITUDE OF APPLICATIONS. THIS VERSATILE CANOPY F...
- SHORT DESCRIPTION:
- 100W LED CANOPY LIGHT
- TITLE 20 COMPLIANT:
- EXEMPT
- TITLE 24 COMPLIANT:
- NO
- TOTAL HARMONIC DISTORTION:
- 15%
- ORDER IN MULTIPLES OF:
- 1
- IOT ENABLED:
- NO
- IMAGE INFO:
- 4/29/2025 4:23
- CATEGORY:
- SURFACE MOUNT
- SUB CATEGORY:
- CANOPY FIXTURE
- ADDITIONAL INFO:
- UV STABILIZED POWDER COATED FINISH
- COUNTRY OF ORIGIN:
- CHINA
- 4/29/2025 14:
- 17
- HAS CAMERA:
- NO
- HAS EMERGENCY BATTERY:
- NO
- BEAM ANGLE SELECTABLE:
- NO
- CA PROP-65 STATEMENT:
- WARNING: THIS PRODUCT CAN EXPOSE YOU TO CHEMICALS INCLUDING LEAD WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER OR BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. FOR MORE INFORMATION GO TO HTTP://WWW.P65WARNINGS.CA.GOV.
- DEFAULT CCT:
- 4000K
- DEFAULT LUMENS:
- 13999L
- FIELD SELECTABLE:
- NO
- FIXTURE SHAPE:
- ROUND
- VOLTAGE TEXT:
- AC ONLY RANGE VOLTAGE
