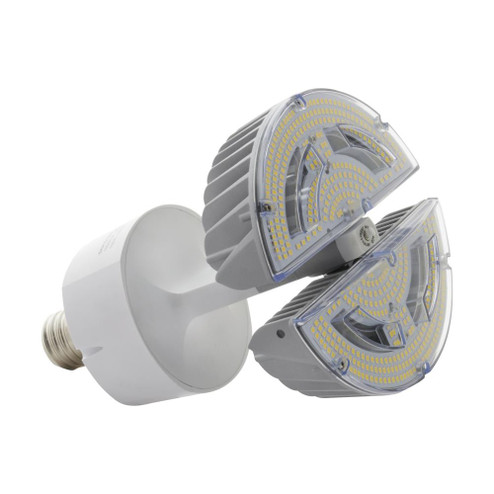

100 Watt; LED HID Replacement; 5000K; Mogul extended base; 100-277 Volt {ADDITIONAL FINISH INFORMATION: ''No Finish''}
- BULB HOURS:
- 50000
- BULB KELVIN:
- 5000K
- BULB SHAPE:
- INTEGRATED LED
- DIAMETER:
- 4.6
- DIMMABLE:
- Yes-Dimmable
- HARMONIZED CODES:
- 8539.52.0091
- LENGTH:
- 12.35
- LUMENS:
- 15000L
- SHIP CARTON HEIGHT:
- 6.48''
- SHIP CARTON LENGTH:
- 14.23
- SHIP CARTON WIDTH:
- 8.73''
- SHIP WEIGHT:
- 3.56
- VOLTS:
- 100V-277V
- WARRANTY:
- 5 Year Limited - Hi-Pro
- WEIGHT:
- 3.19
- More Info {1}:
- 5-YEAR LIMITED WARRANTY
- BEAM SPREAD:
- 360
- BULB ANSI BASE:
- EX39
- BULB BASE:
- Mogul Extended
- BULB FINISH:
- Clear
- CARTON CUBIC FEET:
- 0.4659
- CARTONS PER UNIT:
- 1
- CEC:
- Exempt - Base Not Regulated
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- CEC WEB TEXT:
- LAWFUL FOR SALE
- COLOR TEMPRATURE:
- Natural Light
- CRI:
- 80
- DIMMABLE TYPE:
- Smart
- DLC APPROVED:
- YES
- DLC ID:
- PLDRT7BU9AXX PL66LMJ6RES
- ENCLOSURE RATING:
- ENCLOSED RATED LAMP
- HID EQUIVALENT:
- 350W
- HOUSING COLOR:
- WHITE/GREY
- INCANDESCENT EQUIVALENT:
- 400W
- IP RATING:
- IP64
- LAMP FILAMENT:
- LED
- LENS:
- YES
- LOCATION RATING:
- Damp
- NSF APPROVED:
- No
- OPERATING TEMP:
- Open Fixture: -29C (-20F) to +60C (+140F) Closed Fixture: -30C(-22F) to +45C(+113F)
- PACK TYPE:
- Box
- PHOTOCELL:
- HAS PHOTOCELL
- WATTS:
- 100W
- LAMPS:
- YES
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- Standard Style:
- Traditional
- WIDTH:
- 4.60
- WIDTH RANGE:
- 0-15''
- DIMMABLE FUNCTION:
- DIMMABLE WITH OPTIONAL MODULES
- AVAILABLE FOR PURCHASE:
- NO
- QUANTITY AVAILABLE AT MANUFACTURER:
- 65
- IMAGE INFO:
- ''''
- CCT SELECTABLE:
- NO
- DLC CLASSIFICATION:
- STANDARD
- DLC PRIMARY USE:
- REPLACEMENT LAMPS FOR OUTDOOR POLE/ARM-MOUNTED DECORATIVE LUMINAIRES (TYPE B)
- ENCLOSURE RATING1:
- YES
- FCC COMPLIANT:
- YES
- FEATURE 1:
- MOL: 12.35 INCHES MOD: 4.60 INCHES
- FEATURE 2:
- CLEAR FINISH
- FEATURE 3:
- DAMP RATED FOR INDOOR AND OUTDOOR USE
- FEATURE 4:
- MOGUL EXTENDED BASE
- FEATURE 5:
- MATERIAL: ALUMINUM
- FEATURE 6:
- LENS MATERIAL: POLYCARBONATE
- FEATURE 7:
- HAS SENSOR
- FEATURE 8:
- FCC AND ROHS COMPLIANT
- FEATURE 9:
- 5-YEAR LIMITED WARRANTY
- INDOOR OUTDOOR:
- INDOOR OUTDOOR
- LENS FINISH:
- CLEAR
- LENS MATERIAL:
- POLYCARBONATE (PC)
- LONG DESCRIPTION:
- SATCO
- MATERIAL:
- ALUMINUM / POLYCARBONATE (PC)
- MINIMUM COMPARTMENT SIZE:
- LENGTH: 9.85 IN. WIDTH: 9.85 IN. DEPTH: 11.93 IN.''
- OPERATING FREQUENCY:
- 50/60HZ
- POWER FACTOR:
- 0.9
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- SDS CLASS:
- LED_LAMP
- SDS SHEET LINK:
- #REF!
- TECHNOLOGY:
- LED
- BURNING POSITION:
- UNIVERSAL
- ORDER IN MULTIPLES OF:
- 1
- More Info {2}:
- DAMP RATED FOR INDOOR AND OUTDOOR USE
- More Info {3}:
- FCC AND ROHS COMPLIANT
- More Info {4}:
- HAS SENSOR
- More Info {5}:
- LENS MATERIAL: POLYCARBONATE
- More Info {6}:
- MATERIAL: ALUMINUM
- More Info {7}:
- MOGUL EXTENDED BASE
- More Info {8}:
- MOL: 12.35 INCHES MOD: 4.60 INCHES
- WATTAGE SELECTABLE:
- NO
- NUVO'S S13127 100-WATT MULTI-ANGLE ROTATING BASE LED LAMP WITH A FOLDING PANEL DESIGN REPLACES HID CFL AND INCANDESCENT LIGHTING INDOORS AND OUTDOORS. APPLICATIONS CONSIST OF:
- HIGH BAYS LOW BAYS GARAGES GYMNASIUMS AND OTHER HIGH CEILING APPLI
- BAA COMPLIANT:
- NO
- 3-WAY:
- #REF!
- MAX. DIAMETER:
- #REF!
- DIMMABLE DOWN TO:
- 100 TO 20 PERCENT
- EFFICACY:
- 150.00 LPW
- ENCLOSED FIXTURE USE:
- YES
- R9 VALUE:
- 19
- ROMANCE COPY:
- SATCO
- NUVO'S MULTI-ANGLE ROTATING BASE LED LAMP WITH A FOLDING PANEL DESIGN REPLACES HID CFL AND INCANDESCENT LIGHTING INDOORS AND OUTDOORS. APPLICATIONS CONSIST OF:
- HIGH BAYS LOW BAYS GARAGES GYMNASIUMS AND OTHER HIGH CEILING APPLICATIONS. OPTIONA
- SHORT DESCRIPTION:
- 100W/LED/HP360/850
- STYLE:
- UTILITY
- THERMAL MANAGEMENT:
- WHEN THE LAMP BODY TEMPERATURE IS > 203F THE OUTPUT WILL REDUCE TO 75 PERCENT WHEN THE DRIVER TEMPERATURE IS >257F THE OUTPUT WILL REDUCE TO 55 PERCENT.
- TITLE 20 COMPLIANT:
- NO
- TOTAL HARMONIC DISTORTION:
- 14.20%
- CA PROP-65:
- LEAD
- BULB DIMMABLE:
- YES-DIMMABLE
- EA LENGTH:
- 14.23
- SHAP CARTON WIDTH:
- 8.73''
