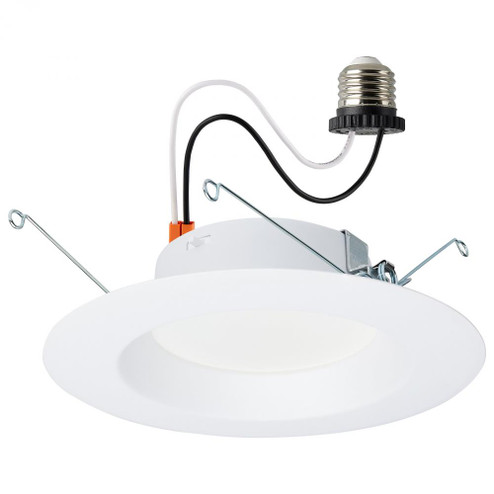

12.5 Watt LED High Lumen Downlight Retrofit; 5-6 Inch; 27K/30K/35K/40K/50K CCT Selectable; 120 Volts; Dimmable; White Finish {ADDITIONAL FINISH INFORMATION: ''White''}
- AVAILABLE FOR PURCHASE:
- NO
- REQUIRED (NOT INCLUDED):
- 1 12.5 WATT MEDIUM ADAPTER BULBS
- BULB HOURS:
- 50000
- BULB KELVIN:
- WARM WHITE TO NATURAL LIGHT
- BULB SHAPE:
- INTEGRATED LED
- BULB TYPE:
- LED
- DIAMETER:
- 7.36
- DIMMABLE:
- YES-DIMMABLE
- HARMONIZED CODES:
- 8539.52.0091
- LUMENS:
- 1100L
- SHIP CARTON HEIGHT:
- 8.07''
- SHIP CARTON LENGTH:
- 8.07
- SHIP CARTON WIDTH:
- 2.76''
- WARRANTY:
- 5-YEARS
- AMPS:
- 0.104A
- ANSI BASE:
- E26 ADAPTER
- BEAM SPREAD:
- 100
- CA PROP-65:
- LEAD
- CAN SIZE:
- 5-6 IN.
- CARTONS PER UNIT:
- 1
- CCT SELECTABLE:
- YES
- CEC:
- CALIFORNIA T24 2016 - 2025 JA8 LISTED T20 LISTED
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- CEC WEB TEXT:
- CALIFORNIA T24 LISTED
- CEILING APERTURE:
- 5.36 IN. CUTOUT
- CRI:
- 90+
- DIMMING TYPE:
- PHASE CUT (TRIAC) 120V ONLY
- FCC COMPLIANT:
- YES
- FEATURE 1:
- CCT SELECTABLE
- FEATURE 2:
- HIGH LUMEN OUTPUT 90 CRI FOR HIGH QUALITY LIGHTING
- FEATURE 3:
- ROUND SMOOTH BAFFLE WITH WHITE TRIM
- FEATURE 4:
- E26 ADAPTER INCLUDED
- FEATURE 5:
- T20 AND T24 COMPLIANT
- FEATURE 6:
- STEEL CONSTRUCTION WITH POLYCARBONATE LENS
- FEATURE 7:
- 50000 HOUR FUNCTIONAL LIFE
- IC RATED:
- YES
- INCANDESCENT EQUIVALENT:
- 75W
- INDOOR OUTDOOR:
- INDOOR
- LENS MATERIAL:
- POLYCARBONATE (PC)
- LONG DESCRIPTION:
- SATCO NUVO'S LED CCT SELECTABLE 5-6 INCH HIGH LUMEN RETROFIT DOWNLIGHT S11646 WILL ELEVATE THE LIGHTING IN ANY SPACE. DESIGNED WITH IMPECCABLE 90 CRI COLOR RENDERING YOU CAN MAKE YOUR SPACE BRIGHTER WHILE SAVING ENERGY WITH THIS 1100 H...
- MATERIAL:
- STEEL
- OPERATING FREQUENCY:
- 60HZ
- OPERATING TEMPRATURE:
- -4F TO +104F (-20C TO +40C)
- PACK TYPE:
- BOX
- POWER FACTOR:
- 0.9
- QUANTITY IN PACK:
- 1
- REPLACEABLE LIGHT SOURCE:
- NO
- ROHS COMPLIANT:
- YES
- SAFETY LISTING:
- CULUS - CERTIFIED CULUS - CLASSIFIED CRUUS - RECOGNIZED COMPONENT
- TEMPERATURE (CCT):
- 2700K/3000K/3500K/4000K/5000K
- WATTAGE SELECTABLE:
- NO
- WEIGHT LB.:
- 0.6
- CEILING:
- YES
- QUANTITY AVAILABLE AT MANUFACTURER:
- 542
- IMAGE INFO:
- ''S11646.JPG:DEFAULT''
- LOCAL_ON_DISPLAY:
- 1
- ON DISPLAY IN SHOWROOM:
- Yes
- LOCAL_COUNT_ON_DISPLAY:
- 0
- LOCAL_SALE:
- 0
- LOCAL_COUNT_SALE:
- 0
- LOCAL_IN_STOCK:
- 0
- IN STOCK IN SHOWROOM:
- No
- LOCAL_COUNT-IN_STOCK:
- 0
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- HEIGHT:
- 1.97
- HEIGHT RANGE:
- 0-15''
- WIDTH:
- 7.36
- WIDTH RANGE:
- 0-15''
- AIR TIGHT:
- YES
- DIMMABLE DOWN TO:
- 100 TO 10 PERCENT
- EFFICACY:
- 88.00 LPW
- JA8 COMPLIANT:
- YES
- MINIMUM COMPARTMENT SIZE:
- FOR THE 5 IN. RECESSED LUMINAIRE: DIA: 5.38 HEIGHT: 7.5 FOR THE 6 IN. RECESSED LUMINAIRE: DIA: 6 IN HEIGHT: 7.5 IN''
- R9 VALUE:
- 55
- ROMANCE COPY:
- SATCO NUVO'S LED CCT SELECTABLE 5-6 INCH HIGH LUMEN RETROFIT DOWNLIGHT WILL ELEVATE THE LIGHTING IN ANY SPACE. DESIGNED WITH IMPECCABLE 90 CRI COLOR RENDERING YOU CAN MAKE YOUR SPACE BRIGHTER WHILE SAVING ENERGY WITH THIS 1100 HIGH LUMEN...
- SHORT DESCRIPTION:
- 12.5WLED/DLR/5-6/CCT-SEL/RD/WH
- TITLE 20 COMPLIANT:
- YES
- TITLE 24 COMPLIANT:
- YES
- TOTAL HARMONIC DISTORTION:
- 41.4%
- FINISH:
- WHITE
- STYLE:
- UTILITY
- CARTON CUBIC FEET:
- 0.104
- ES UNIQUE ID:
- 3845045
- MOUNTING PROCEDURE:
- RECESSED RETROFIT
- ORDER IN MULTIPLES OF:
- 1
- TRIM COLOR:
- WHITE
- SDS CLASS:
- LED_FIXTURE
- CATEGORY:
- RECESSED
- SUB CATEGORY:
- RETROFITS
- COUNTRY OF ORIGIN:
- CHINA
- ES CATEGORY:
- DOWNLIGHT SOLID STATE RETROFIT
- 4/30/2025 14:
- 20
- STANDARD STYLE:
- RECESSED LIGHTING TRIMS
- 5/5/2025 14:
- 16
- HAS CAMERA:
- NO
- HAS EMERGENCY BATTERY:
- NO
- IOT ENABLED:
- NO
- BAA COMPLIANT:
- NO
- BEAM ANGLE SELECTABLE:
- NO
- CA PROP-65 STATEMENT:
- WARNING: THIS PRODUCT CAN EXPOSE YOU TO CHEMICALS INCLUDING LEAD WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER OR BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. FOR MORE INFORMATION GO TO HTTP://WWW.P65WARNINGS.CA.GOV.
- DEFAULT CCT:
- 2700K
- DIMMABLE FUNCTION:
- FORWARD (TRIAC) OR REVERSE PHASE
- FIELD SELECTABLE:
- NO
- FIXTURE SHAPE:
- ROUND
- VOLTAGE TEXT:
- AC ONLY
