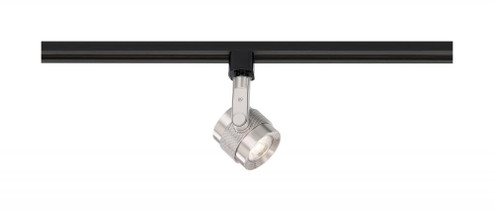

LED; 12 Watt Piston Track Head; Brushed Nickel; 24 deg. Beam Angle {ADDITIONAL FINISH INFORMATION: ''Brushed Nickel''}
- STYLE:
- MODERN AND CONTEMPORARY
- BULB DIMMABLE:
- Yes - Dimmable
- BULB HOURS:
- 30000
- BULB TYPE:
- LED
- EXTENDS:
- 5.75
- HARMONIZED CODES:
- 9405.11.6020
- LENGTH:
- 2.75
- LUMENS:
- 1020L
- SHIP CARTON HEIGHT:
- 6''
- SHIP CARTON LENGTH:
- 4.25
- SHIP CARTON WIDTH:
- 3.25''
- SHIP WEIGHT:
- 0.86
- WARRANTY:
- 3 Year Limited - Fixtures
- ADDITIONAL INFO:
- Track heads are H-track compatible for single circuit track lighting runs
- BEAM ANGLE:
- 24
- CARTON CUBIC FEET:
- 0.048
- CARTONS PER UNIT:
- 1
- CEC:
- CALIFORNIA T24 2016 - 2022 JA8 LISTED
- COLOR TEMPRATURE:
- Warm White
- CRI:
- 90
- LOCATION RATING:
- Dry
- OPERATING TEMP:
- -17C (+1.4F) TO +45C (+113F)
- HEIGHT:
- 2.75
- WIDTH:
- 2.75
- FINISH:
- NICKEL
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- STANDARD STYLE:
- MODERN
- DIMMABLE:
- Yes-Dimmable
- HEIGHT RANGE:
- 0-15''
- WIDTH RANGE:
- 0-15''
- BULB SHAPE:
- INTEGRATED LED
- AVAILABLE FOR PURCHASE:
- YES
- DIMMABLE FUNCTION:
- 120V ONLY
- QUANTITY AVAILABLE AT MANUFACTURER:
- 159
- REQUIRED (NOT INCLUDED):
- 1 INTEGRATED BULBS
- ANSI BASE:
- INTEGRATED
- DIMMING TYPE:
- FORWARD PHASE OR REVERSE PHASE OR PHASE SELECTABLE
- FCC COMPLIANT:
- YES
- FEATURE 1:
- NEW MONO POINTS
- FEATURE 2:
- NEW LINEAR TRACK BARS
- FEATURE 3:
- EXPANDED TRACK HEAD OFFERING
- FEATURE 4:
- CUSTOMIZABLE ACCENT LIGHTING FOR LOW TO MID CEILING
- FEATURE 5:
- RESIDENTIAL AND COMMERCIAL
- FINISH FAMILY:
- NICKEL
- INDOOR OUTDOOR:
- INDOOR
- LENS MATERIAL:
- POLY METHYL METHACRYLATE (PMMA)
- LONG DESCRIPTION:
- THE LED PISTON TRACK HEAD OF SATCO'S TH498 DELIVERS ENERGY-EFFICIENT LIGHTING FOR A VARIETY OF COMMERCIAL AND RESIDENTIAL ENVIRONMENTS. THE HEAD IS COMPATIBLE WITH HALO (H) TRACKS AND IS USED IN SINGLE CIRCUIT LIGHTING RUNS. THE LIGHTWEIG...
- MATERIAL:
- ALUMINUM
- MOUNTING PROCEDURE:
- CEILING
- NUMBER OF LAMPS:
- 1
- OPERATING FREQUENCY:
- 60HZ
- PACK TYPE:
- BOX
- POWER FACTOR:
- >0.9
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- TEMPERATURE (CCT):
- 3000K
- TRACK HEAD STYLE:
- PISTON
- WEIGHT LB.:
- 0.77
- LAMPS:
- YES
- AMPS:
- 0.100A
- SDS SHEET LINK:
- #REF!
- SDS CLASS:
- LED_FIXTURE
- BULB KELVIN:
- WARM WHITE
- BEAM SPREAD:
- 24
- CA PROP-65:
- LEAD
- CEC WEB TEXT:
- CALIFORNIA T24 LISTED
- INCANDESCENT EQUIVALENT:
- 60W
- OPERATING TEMPRATURE:
- -17C (+1.4F) TO +45C (+113F)
- REPLACEABLE LIGHT SOURCE:
- NO
- SAFETY LISTING:
- CETLUS - LISTED
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- CCT SELECTABLE:
- NO
- More Info {1}:
- CUSTOMIZABLE ACCENT LIGHTING FOR LOW TO MID CEILING
- More Info {2}:
- EXPANDED TRACK HEAD OFFERING
- More Info {3}:
- NEW LINEAR TRACK BARS
- More Info {4}:
- NEW MONO POINTS
- More Info {5}:
- RESIDENTIAL AND COMMERCIAL
- WATTAGE SELECTABLE:
- NO
- REPLACES:
- #REF!
- AVG RATED HOURS:
- 30000
- BULB SHAPE1:
- INTEGRATED LED
- BULB TYPE1:
- LED
- COLOR TEMPERATURE:
- WARM WHITE
- EACH HEIGHT:
- 6''
- EACH LENGTH:
- 4.25
- EACH WIDTH:
- 3.25''
- TARIFF CODE:
- 9405.11.6020
- BAA COMPLIANT:
- NO
- DIMMABLE DOWN TO:
- 100 TO 20 PERCENT
- EACH CUBE:
- 0.048
- EACH QUANTITY:
- 1
- EFFICACY:
- 85.00 LPW
- JA8 COMPLIANT:
- YES
- R9 VALUE:
- 60
- ROMANCE COPY:
- THIS SATCO TRACK EXPANSION INCLUDES MONO POINTS LINEAR TRACK BARS AND THE ADDITION OF SEVERAL NEW TRACK HEADS WITH MODERN PROFILES AND ADJUSTABLE DESIGN FEATURES OFFERING EVEN MORE VERSATILITY AND NEW DIRECTION TO OUR TRACK PRODUCTS! THE...
- SHORT DESCRIPTION:
- 12W LED PISTON TRACK HEAD
- TITLE 20 COMPLIANT:
- NO
- TITLE 24 COMPLIANT:
- YES
