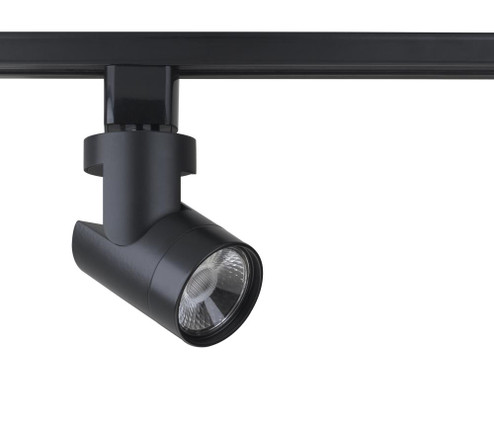

1 Light; LED; 12W Track Head; Barrel; Black; 36 Deg. Beam; H-Style {ADDITIONAL FINISH INFORMATION: ''Black''}
- STYLE:
- Contemporary
- BULB DIMMABLE:
- Yes - Dimmable
- BULB HOURS:
- 30000
- BULB SHAPE:
- Integrated LED
- BULB TYPE:
- LED
- DIAMETER:
- 2.19
- EXTENDS:
- 5.75
- HARMONIZED CODES:
- 9405.11.6020
- LENGTH:
- 3.75
- LUMENS:
- 1020L
- SHIP CARTON HEIGHT:
- 6.5''
- SHIP CARTON LENGTH:
- 3.46
- SHIP CARTON WIDTH:
- 3.46''
- SHIP WEIGHT:
- 0.84
- VOLTAGE:
- 120V
- WARRANTY:
- 3-YEARS
- BEAM ANGLE:
- 36
- CARTON CUBIC FEET:
- 0.045
- CARTONS PER UNIT:
- 1
- CEC:
- CALIFORNIA T24 2016 - 2025 JA8 LISTED
- COLOR TEMPRATURE:
- Warm White
- CRI:
- 90+
- LOCATION RATING:
- Dry
- PACK TYPE:
- Box
- HEIGHT:
- 2.25
- WIDTH:
- 2.25
- FINISH:
- TRACK LTG.
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- BULBS:
- 12W WATT:12W WATT:1
- STANDARD STYLE:
- TRADITIONAL
- DIMMABLE:
- Yes-Dimmable
- HEIGHT RANGE:
- 0-15''
- WIDTH RANGE:
- 0-15''
- AVAILABLE FOR PURCHASE:
- YES
- DIMMABLE FUNCTION:
- REVERSE PHASE OR PHASE SELECTABLE 120V ONLY
- REQUIRED (NOT INCLUDED):
- 1 INTEGRATED BULBS
- QUANTITY AVAILABLE AT MANUFACTURER:
- 988
- ANSI BASE:
- INTEGRATED
- DIMMING TYPE:
- PHASE CUT 120V ONLY
- FCC COMPLIANT:
- YES
- FEATURE 1:
- NEW MONO POINTS
- FEATURE 2:
- NEW LINEAR TRACK BARS
- FEATURE 3:
- EXPANDED TRACK HEAD OFFERING
- FEATURE 4:
- CUSTOMIZABLE ACCENT LIGHTING FOR LOW TO MID CEILING
- FEATURE 5:
- RESIDENTIAL AND COMMERCIAL
- FINISH FAMILY:
- BLACK
- INDOOR OUTDOOR:
- INDOOR
- MOUNTING PROCEDURE:
- CEILING
- NUMBER OF LAMPS:
- 1
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- TEMPERATURE (CCT):
- 3000K
- TRACK HEAD STYLE:
- BARREL
- WEIGHT LB.:
- 0.8
- LAMPS:
- YES
- AMPS:
- 0.100A
- SDS SHEET LINK:
- #REF!
- LONG DESCRIPTION:
- SATCO'S TH434 12-WATT BARREL TRACK HEAD IS A SLEEK LIGHTING SOLUTION FOR RESIDENTIAL AND COMMERCIAL APPLICATIONS. THIS BLACK FIXTURE IS DIMMABLE DURABLE AND HAS A 36 DEGREE BEAM SPREAD. VERSATILE AND CONTEMPORARY THIS TRACK HEAD DELIVER...
- SDS CLASS:
- LED_FIXTURE
- BULB KELVIN:
- WARM WHITE
- BEAM SPREAD:
- 36
- CA PROP-65:
- LEAD
- CEC WEB TEXT:
- CALIFORNIA T24 LISTED
- REPLACEABLE LIGHT SOURCE:
- NO
- SAFETY LISTING:
- CETLUS - LISTED
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- CCT SELECTABLE:
- NO
- WATTAGE SELECTABLE:
- NO
- INCANDESCENT EQUIVALENT:
- 75W
- REPLACES:
- #REF!
- AVG RATED HOURS:
- 30000
- BULB SHAPE1:
- INTEGRATED LED
- BULB TYPE1:
- LED
- COLOR TEMPERATURE:
- WARM WHITE
- EACH HEIGHT:
- 6.5''
- EACH LENGTH:
- 3.46
- EACH WIDTH:
- 3.46''
- TARIFF CODE:
- 9405.11.6020
- DIMMABLE DOWN TO:
- 100 TO 20 PERCENT
- EACH CUBE:
- 0.045
- EACH QUANTITY:
- 1
- EFFICACY:
- 85.00 LPW
- JA8 COMPLIANT:
- YES
- MATERIAL:
- ALUMINUM / STEEL
- OPERATING FREQUENCY:
- 60HZ
- R9 VALUE:
- 60
- ROMANCE COPY:
- SATCO'S 12-WATT BARREL TRACK HEAD IS A SLEEK LIGHTING SOLUTION FOR RESIDENTIAL AND COMMERCIAL APPLICATIONS. THIS BLACK FIXTURE IS DIMMABLE DURABLE AND HAS A 36 DEGREE BEAM SPREAD. VERSATILE AND CONTEMPORARY THIS TRACK HEAD DELIVERS 300...
- SHORT DESCRIPTION:
- 12W LED TRACK HEAD BARREL
- TITLE 20 COMPLIANT:
- EXEMPT
- TITLE 24 COMPLIANT:
- YES
- POWER FACTOR:
- 0.94
- ORDER IN MULTIPLES OF:
- 1
- IMAGE INFO:
- 4/29/2025 4:24
- CATEGORY:
- TRACK LIGHTING
- SUB CATEGORY:
- TRACK HEAD
- COUNTRY OF ORIGIN:
- CHINA
- 4/29/2025 14:
- 20
- 5/5/2025 14:
- 17
- HAS CAMERA:
- NO
- HAS EMERGENCY BATTERY:
- NO
- IOT ENABLED:
- NO
- BAA COMPLIANT:
- NO
- BEAM ANGLE SELECTABLE:
- NO
- CA PROP-65 STATEMENT:
- WARNING: THIS PRODUCT CAN EXPOSE YOU TO CHEMICALS INCLUDING LEAD WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER OR BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. FOR MORE INFORMATION GO TO HTTP://WWW.P65WARNINGS.CA.GOV.
- CONNECTOR:
- H-STYLE
- FIELD SELECTABLE:
- NO
- VOLTAGE TEXT:
- AC ONLY
