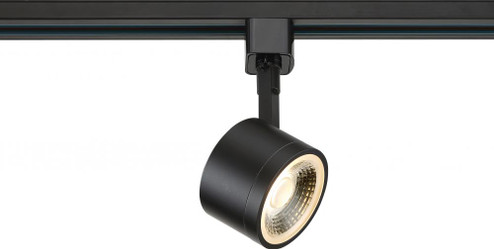

1 Light; LED; 12W Track Head; Round; Matte Black; 24 Deg. Beam; H-Style {ADDITIONAL FINISH INFORMATION: ''Matte Black''}
- STYLE:
- Contemporary
- BULB DIMMABLE:
- Yes - Dimmable
- BULB HOURS:
- 30000
- BULB SHAPE:
- Integrated LED
- BULB TYPE:
- LED
- EXTENDS:
- 7.13
- HARMONIZED CODES:
- 9405.11.6020
- LENGTH:
- 2.25
- LUMENS:
- 1020L
- SHIP CARTON HEIGHT:
- 7.15''
- SHIP CARTON LENGTH:
- 3.38
- SHIP CARTON WIDTH:
- 3.38''
- SHIP WEIGHT:
- 1.19
- VOLTAGE:
- 120V
- WARRANTY:
- 3-YEARS
- BEAM ANGLE:
- 24
- CARTON CUBIC FEET:
- 0.0473
- CARTONS PER UNIT:
- 1
- CEC:
- CALIFORNIA T24 2016 - 2025 JA8 LISTED
- COLOR TEMPRATURE:
- Warm White
- CRI:
- 90+
- LOCATION RATING:
- Dry
- PACK TYPE:
- Box
- HEIGHT:
- 3.25
- WIDTH:
- 3.25
- FINISH:
- TRACK LTG.
- LOCAL_ON_DISPLAY:
- 0
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- BULBS:
- 12W WATT:12W WATT:1
- STANDARD STYLE:
- CONTEMPORARY
- DIMMABLE:
- Yes-Dimmable
- HEIGHT RANGE:
- 0-15''
- WIDTH RANGE:
- 0-15''
- AVAILABLE FOR PURCHASE:
- YES
- DIMMABLE FUNCTION:
- REVERSE PHASE OR PHASE SELECTABLE 120V ONLY
- REQUIRED (NOT INCLUDED):
- 1 INTEGRATED BULBS
- QUANTITY AVAILABLE AT MANUFACTURER:
- 371
- ANSI BASE:
- INTEGRATED
- DIMMING TYPE:
- PHASE CUT 120V ONLY
- FCC COMPLIANT:
- YES
- FEATURE 1:
- INTEGRATED LED FEATURING 12 WATTS WITH 1020 LUMENS 3000K IN SOFT WHITE AND 90 CRI
- FEATURE 2:
- DIMENSIONS: 3.25 IN H X 3.25 IN W X 2.25 IN L X 6.25 EXT
- FEATURE 3:
- CONTEMPORARY DESIGN WITH MODERN ELEMENTS
- FEATURE 4:
- DIE-CAST ALUMINUM CONSTRUCTION
- FEATURE 5:
- MATTE BLACK
- FINISH FAMILY:
- BLACK
- FIXTURE SHAPE:
- ROUND
- INDOOR OUTDOOR:
- INDOOR
- MATERIAL:
- DIE-CAST ALUMINUM
- MOUNTING PROCEDURE:
- CEILING
- NUMBER OF LAMPS:
- 1
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- TEMPERATURE (CCT):
- 3000K
- TRACK HEAD STYLE:
- ROUND
- WEIGHT LB.:
- 0.66
- LAMPS:
- YES
- AMPS:
- 0.100A
- SDS SHEET LINK:
- #REF!
- LONG DESCRIPTION:
- SATCO'S TH402 12-WATT ROUND TRACK HEAD IS A SLEEK LIGHTING SOLUTION FOR RESIDENTIAL AND COMMERCIAL APPLICATIONS. THIS MATTE BLACK FIXTURE IS DIMMABLE DURABLE AND HAS A 24 DEGREE BEAM SPREAD. VERSATILE AND CONTEMPORARY THIS TRACK HEAD DE...
- SDS CLASS:
- LED_FIXTURE
- BULB KELVIN:
- WARM WHITE
- BEAM SPREAD:
- 24
- CA PROP-65:
- LEAD
- CEC WEB TEXT:
- CALIFORNIA T24 LISTED
- REPLACEABLE LIGHT SOURCE:
- NO
- SAFETY LISTING:
- CETLUS - LISTED
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- CCT SELECTABLE:
- NO
- FEATURE 6:
- DRY LOCATION RATED WITH A BEAM SPREAD OF 24
- FEATURE 7:
- 3 YEAR WARRANTY
- FEATURE 8:
- VISIT SATCO.COM FOR ACCESSORIES TO CREATE THE PERFECT TRACK SYSTEM SOLUTION
- FEATURE 9:
- INSTRUCTIONS AND MOUNTING HARDWARE INCLUDED FOR EASY INSTALLATION
- LENS MATERIAL:
- POLY METHYL METHACRYLATE (PMMA)
- OPERATING FREQUENCY:
- 60HZ
- OPERATING TEMPRATURE:
- -4F TO +104F (-20C TO +40C)
- POWER FACTOR:
- >0.9
- WATTAGE SELECTABLE:
- NO
- INCANDESCENT EQUIVALENT:
- 75W
- REPLACES:
- #REF!
- AVG RATED HOURS:
- 30000
- BULB SHAPE1:
- INTEGRATED LED
- BULB TYPE1:
- LED
- COLOR TEMPERATURE:
- WARM WHITE
- EACH HEIGHT:
- 7.15''
- EACH LENGTH:
- 3.38
- EACH WIDTH:
- 3.38''
- TARIFF CODE:
- 9405.11.6020
- DIMMABLE DOWN TO:
- 100 TO 20 PERCENT
- EACH CUBE:
- 0.0473
- EACH QUANTITY:
- 1
- EFFICACY:
- 85.00 LPW
- JA8 COMPLIANT:
- YES
- R9 VALUE:
- 60
- SHORT DESCRIPTION:
- 12W LED TRACK HEAD ROUND
- TITLE 20 COMPLIANT:
- EXEMPT
- TITLE 24 COMPLIANT:
- YES
- ORDER IN MULTIPLES OF:
- 1
- IMAGE INFO:
- 4/29/2025 4:24
- CATEGORY:
- TRACK LIGHTING
- SUB CATEGORY:
- TRACK HEAD
- COUNTRY OF ORIGIN:
- CHINA
- ROMANCE COPY:
- NUVO'S TRACK LIGHTING OFFERS A WIDE RANGE OF DESIGNS AND FINISHES. LOOKING FOR A CINCH-WAISTED TRACK HEAD WE GOT IT. A ROUND OR CYLINDER TRACK IS MORE YOUR STYLE SAY NO MORE. OUR TRACK HEADS OFFER LONG-LASTING INTEGRATED LED PROVIDING E...
- 4/29/2025 14:
- 20
- HAS CAMERA:
- NO
- HAS EMERGENCY BATTERY:
- NO
- IOT ENABLED:
- NO
- BAA COMPLIANT:
- NO
- BEAM ANGLE SELECTABLE:
- NO
- CA PROP-65 STATEMENT:
- WARNING: THIS PRODUCT CAN EXPOSE YOU TO CHEMICALS INCLUDING LEAD WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER OR BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. FOR MORE INFORMATION GO TO HTTP://WWW.P65WARNINGS.CA.GOV.
- CONNECTOR:
- H-STYLE
- FIELD SELECTABLE:
- NO
- VOLTAGE TEXT:
- AC ONLY
