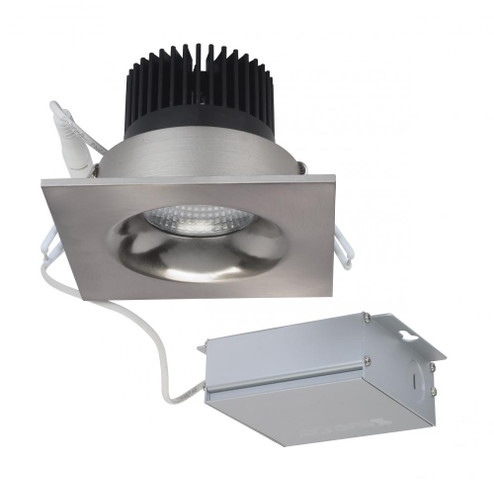

12 watt LED Direct Wire Downlight; 3.5 inch; 3000K; 120 volt; Dimmable; Square; Remote Driver; Brushed Nickel {ADDITIONAL FINISH INFORMATION: ''Brushed Nickel''}
- ADDITIONAL INFO:
- Integrated j-box for direct wire installation
- BULB DIMMABLE:
- Yes - Dimmable
- BULB HOURS:
- 50000
- BULB KELVIN:
- Warm White
- BULB TYPE:
- LED
- HARMONIZED CODES:
- 9405.11.8010
- LENGTH:
- 4.38
- LUMENS:
- 840L
- SHIP CARTON HEIGHT:
- 4.8''
- SHIP CARTON LENGTH:
- 6.06
- SHIP CARTON WIDTH:
- 4.88''
- WARRANTY:
- 5 Year Limited - Fixtures
- BEAM SPREAD:
- 40
- CA PROP-65:
- Lead
- CARTON CUBIC FEET:
- 0.0821
- CARTONS PER UNIT:
- 1
- CEC:
- CALIFORNIA T24 2016 - 2022 JA8 LISTED
- CEC TERSE:
- Lawful for sale in California
- CEC WEB TEXT:
- CALIFORNIA T24 LISTED
- CEILING APERTURE:
- 3.5625 in. Cutout
- CRI:
- 90
- INCANDESCENT EQUIVALENT:
- 75W
- MAX DRYWALL THICKNESS:
- 7/8 in.
- OPERATING TEMPRATURE:
- -20C (-4F) TO +45C (+113F)
- PACK TYPE:
- Box
- REPLACEABLE LIGHT SOURCE:
- No
- SAFETY LISTING:
- CETLUS - LISTED
- HEIGHT:
- 3.00
- HEIGHT RANGE:
- 0-15''
- WIDTH:
- 4.38
- WIDTH RANGE:
- 0-15''
- CEILING:
- YES
- WALL:
- YES
- FINISH:
- NICKEL
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- Standard Style:
- Traditional
- DIMMABLE:
- Yes-Dimmable
- DIMMABLE TYPE:
- Forward/Reverse Phase Dimmer TRIAC
- AVAILABLE FOR PURCHASE:
- NO
- BULB SHAPE:
- INTEGRATED LED
- DIMMABLE FUNCTION:
- DIMMING RANGE FROM 100 TO LESS THAN OR EQUAL TO 20 PERCENT DEPENDING ON DIMMER CONTROL
- REQUIRED (NOT INCLUDED):
- 1 INTEGRATED BULBS
- QUANTITY AVAILABLE AT MANUFACTURER:
- 676
- ANSI BASE:
- INTEGRATED
- CLEARANCE HEIGHT:
- 4''
- CONNECTION:
- DIRECT WIRED
- DIMMING TYPE:
- FORWARD PHASE OR REVERSE PHASE OR PHASE SELECTABLE OR TRIAC
- ES UNIQUE ID:
- ESID-2337203
- FCC COMPLIANT:
- YES
- FEATURE 1:
- LENGTH: 4.38 INCHES WIDTH: 4.38 INCHES HEIGHT: 3.00 INCHES''
- FEATURE 2:
- DIMMABLE
- FEATURE 3:
- WET LOCATION RATED FOR INDOOR USE
- FEATURE 4:
- 3000K WARM WHITE LIGHT
- FEATURE 5:
- SUPERIOR 90 CRI LIGHT QUALITY
- FEATURE 6:
- 5 YEAR LIMITED WARRANTY
- FEATURE 7:
- 840 LUMENS
- FEATURE 8:
- RATED FOR 50000 HOURS
- FEATURE 9:
- FCC AND ROHS COMPLIANT
- FINISH FAMILY:
- NICKEL
- FIXTURE SHAPE:
- SQUARE
- HAS DRIVER:
- YES
- IC RATED:
- YES
- INDOOR OUTDOOR:
- INDOOR
- LENS FINISH:
- CLEAR
- LENS MATERIAL:
- POLYCARBONATE (PC) AND GLASS
- LONG DESCRIPTION:
- SATCO'S S11635 12 WATT 3.5 INCH LED DIRECT WIRE DOWNLIGHT IS AN EASY TO INSTALL LOW MAINTENANCE LIGHTING SOLUTION FOR RESIDENTIAL OR COMMERCIAL USE. ILLUMINATE YOUR KITCHEN LIVING ROOM OR WORK SPACE WITH THIS SQUARE DOWNLIGHT THAT FIT...
- MATERIAL:
- ALUMINUM
- MOUNTING PROCEDURE:
- CEILING
- NUMBER OF LAMPS:
- 1
- POWER FACTOR:
- >0.9
- QUANTITY IN PACK:
- 1
- REC SPACING BETWEEN FIXTURES:
- 4 FT. TO 6 FT.
- ROHS COMPLIANT:
- YES
- SDS CLASS:
- LED_LAMP
- SDS SHEET LINK:
- SDS/LED_LAMP.PDF
- SLOPED CEILING COMPATIBLE:
- NO
- TEMPERATURE (CCT):
- 3000K
- TRIM COLOR:
- BRUSHED NICKEL
- WEIGHT LB.:
- 1.18
- LAMPS:
- YES
- STYLE:
- UTILITY
- AMPS:
- 0.100A
- CCT SELECTABLE:
- NO
- More Info {1}:
- INTEGRATED J-BOX FOR DIRECT WIRE INSTALLATION
- More Info {2}:
- 5 YEAR LIMITED WARRANTY
- More Info {3}:
- 840 LUMENS
- More Info {4}:
- DIMMABLE
- More Info {5}:
- FCC AND ROHS COMPLIANT
- More Info {6}:
- LENGTH: 4.38 INCHES WIDTH: 4.38 INCHES HEIGHT: 3.00 INCHES''
- More Info {7}:
- RATED FOR 50000 HOURS
- More Info {8}:
- SUPERIOR 90 CRI LIGHT QUALITY
- More Info {9}:
- WET LOCATION RATED FOR INDOOR USE
- INSTALLATION NOTES:
- **IF YOU PURCHASE THE 5W EMERGENCY DRIVER (S8000) OR THE 10W EMERGENCY DRIVER (S8002) YOU MUST ALSO PURCHASE THE EMERGENCY DRIVER ENCLOSURE (80-973)
- OPERATING FREQUENCY:
- 60HZ
- WATTAGE SELECTABLE:
- NO
- AIR TIGHT:
- YES
- BAA COMPLIANT:
- NO
- DIMMABLE DOWN TO:
- 100 TO 20 PERCENT
- EFFICACY:
- 70.00 LPW
- JA8 COMPLIANT:
- YES
- R9 VALUE:
- 61
- ROMANCE COPY:
- SATCO'S 12 WATT 3.5 INCH LED DIRECT WIRE DOWNLIGHT IS AN EASY TO INSTALL LOW MAINTENANCE LIGHTING SOLUTION FOR RESIDENTIAL OR COMMERCIAL USE. ILLUMINATE YOUR KITCHEN LIVING ROOM OR WORK SPACE WITH THIS SQUARE DOWNLIGHT THAT FITS INTO ...
- SHORT DESCRIPTION:
- 12WLED/DW/DNL3/930/SQ/RD/BN
- TITLE 20 COMPLIANT:
- NO
- TITLE 24 COMPLIANT:
- YES
