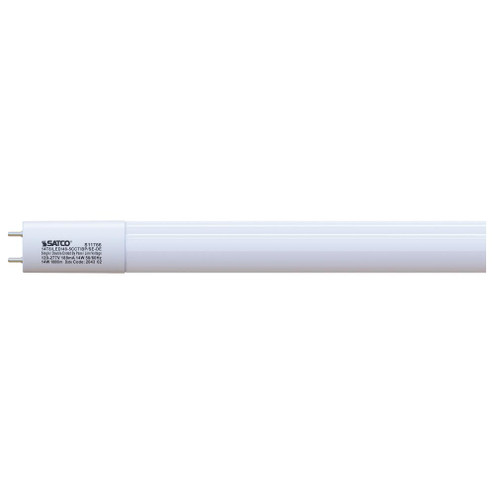

14 Watt; 4 Foot LED; T8; CCT Selectable; Type B Ballast Bypass; G13 Base; 120-277 Volt {ADDITIONAL FINISH INFORMATION: ''White''}
- AVAILABLE FOR PURCHASE:
- NO
- BULB HOURS:
- 50000
- BULB KELVIN:
- 3000K/3500K/4000K/5000K/6500K
- BULB SHAPE:
- T8
- DIAMETER:
- 1
- DIMMABLE:
- YES-DIMMABLE
- HARMONIZED CODES:
- 8539.52.0051
- LENGTH:
- 47.17
- LUMENS:
- 1700L/1700L/1800L/1800L/1800L
- SHIP CARTON HEIGHT:
- 0.9399999999999999''
- SHIP CARTON LENGTH:
- 47.8
- SHIP CARTON WIDTH:
- 0.9399999999999999''
- SHIP WEIGHT:
- 0.45
- VOLTS:
- 120V-277V
- WARRANTY:
- 5 YEAR LIMITED - T8 LED BULBS - BALLAST BYPASS
- WEIGHT:
- 0.45
- ADDITIONAL INFO:
- NON CCT SELECTABLE OPTIONS ARE S39913-S39916
- BALLAST BYPASS DIRECT:
- BALLAST BYPASS
- BEAM SPREAD:
- 210
- BULB ANSI BASE:
- G13
- BULB BASE:
- MEDIUM BI PIN
- BURNING POSITION:
- UNIVERSAL
- CARTON CUBIC FEET:
- 0.0244
- CARTONS PER UNIT:
- 1
- CCT SELECTABLE:
- YES
- CEC:
- EXEMPT - BASE NOT REGULATED
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- CEC WEB TEXT:
- LAWFUL FOR SALE
- COLOR TEMPRATURE:
- WARM WHITE TO DAYLIGHT
- CRI:
- 80
- DLC APPROVED:
- YES
- DLC CLASSIFICATION:
- STANDARD
- DLC ID:
- S-9MV7GT
- DLC PRIMARY USE:
- INTERNAL DRIVER/LINE VOLTAGE (UL TYPE B) LAMPS
- FCC COMPLIANT:
- YES
- FLUORESCENT EQUIVALENT:
- 32W
- HOUSING COLOR:
- WHITE
- LAMP BALLAST TYPE A/B/C:
- TYPE B
- LAMP FILAMENT:
- LED
- LENS MATERIAL:
- GLASS
- LOCATION RATING:
- DAMP
- MATERIAL:
- GLASS / PLASTIC
- NOMINAL LENGTH:
- 48
- NSF APPROVED:
- YES
- OPERATING FREQUENCY:
- 50/60HZ
- OPERATING TEMP:
- -20C (-4F) TO +45C (+113F)
- PACK TYPE:
- SLEEVE
- POWER FACTOR:
- 0.9
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- TECHNOLOGY:
- LED
- WATTS:
- 14W
- LAMPS:
- YES
- QUANTITY AVAILABLE AT MANUFACTURER:
- 48796
- LOCAL_ON_DISPLAY:
- 0
- ON DISPLAY IN SHOWROOM:
- No
- LOCAL_COUNT_ON_DISPLAY:
- 0
- LOCAL_SALE:
- 0
- LOCAL_COUNT_SALE:
- 0
- LOCAL_IN_STOCK:
- 0
- IN STOCK IN SHOWROOM:
- No
- LOCAL_COUNT-IN_STOCK:
- 0
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- WIDTH:
- 1.00
- WIDTH RANGE:
- 0-15''
- BALLASTING REQUIREMENTS:
- BALLAST BYPASS
- FEATURE 1:
- MOL: 47.17 INCHES MOD: 1.00 INCH
- FEATURE 2:
- MEDIUM BI PIN BASE
- FEATURE 3:
- CCT SELECTABLE
- FEATURE 4:
- RATED FOR 50000 HOURS
- FEATURE 5:
- DAMP LOCATION RATED
- FEATURE 6:
- SINGLE OR DOUBLE-ENDED WIRING
- FEATURE 7:
- 5-YEAR WARRANTY
- FEATURE 8:
- 5-YEAR WARRANTY
- More Info {1}:
- 5-YEAR WARRANTY
- More Info {2}:
- CCT SELECTABLE
- More Info {3}:
- DAMP LOCATION RATED
- More Info {4}:
- MEDIUM BI PIN BASE
- More Info {5}:
- MOL: 47.17 INCHES MOD: 1.00 INCH
- More Info {6}:
- RATED FOR 50000 HOURS
- More Info {7}:
- SINGLE OR DOUBLE-ENDED WIRING
- ORDER IN MULTIPLES OF:
- 25
- SDS CLASS:
- LED_LAMP
- WATTAGE SELECTABLE:
- NO
- ENCLOSURE RATING:
- YES
- RATED FOR VAPOR TIGHT FIXTURE:
- NO
- IMAGE INFO:
- ''''
- BAA COMPLIANT:
- NO
- INCANDESCENT EQUIVALENT:
- 75W
- 3-WAY:
- #REF!
- MAX. DIAMETER:
- #REF!
- SDS SHEET LINK:
- #REF!
- EFFICACY:
- 121.43/125.00/128.57 LPW
- ENCLOSED FIXTURE USE:
- YES
- JA8 COMPLIANT:
- NO
- LAMP END TYPE:
- SINGLE ENDED DOUBLE ENDED
- R9 VALUE:
- 4
- ROMANCE COPY:
- SATCO
- SHORT DESCRIPTION:
- 14T8/LED/48-5CCT/BP/SE-DE
- TITLE 20 COMPLIANT:
- NO
- TOTAL HARMONIC DISTORTION:
- <25%
- CA PROP-65:
- LEAD
- EA LENGTH:
- 47.8
- SHAP CARTON WIDTH:
- 0.9399999999999999''
- FLOURESCENT EQUIVALENT:
- 32W
- INSTALLATION NOTES:
- NOT FOR USE IN VAPOR TIGHT FIXTURES.
- TITLE 24 COMPLIANT:
- NO
- BULB DIMMABLE:
- SLEEVE
- INDOOR OUTDOOR:
- WARM WHITE TO DAYLIGHT
- START TYPE:
- UTILITY
- STYLE:
- UTILITY
