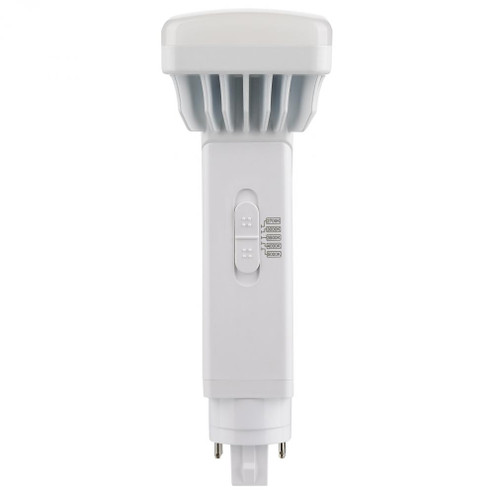

16 Watt PL 4-Pin LED; 1850 Lumens; G24q Base; CCT Selectable; White Finish; 120-277 Volts SATCO NUVO's Dual Position 16W 4-pin PL Lamp is the perfect blend of flexibility, functionality and innovation. Designed with versatility in mind, this lamp features a 90 degree rotatable head that allows light to be directed as needed in both vertical and horizontal applications. The lamp also extends lengthwise and offers a rotatable base to accommodate centering illumination in horizontal installations. To make it the ultimate pin-based solution, this lamp can be installed in ballast bypass and ballast compatible configurations. Five CCT selectable and dimmable with select ballasts, SATCO NUVO's Dual Position Lamp is the ideal choice for any environment. {ADDITIONAL FINISH INFORMATION: ''White''}
- AVAILABLE FOR PURCHASE:
- NO
- BULB HOURS:
- 50000
- BULB KELVIN:
- 2700K/3000K/3500K/4000K/5000K
- BULB SHAPE:
- PL
- DIAMETER:
- 2.36
- DIMMABLE:
- YES-DIMMABLE
- HARMONIZED CODES:
- 8539.52.0091
- LENGTH:
- 6.76
- LUMENS:
- 1850L
- SHIP CARTON HEIGHT:
- 6.89''
- SHIP CARTON LENGTH:
- 2.44
- SHIP CARTON WIDTH:
- 2.44''
- SHIP WEIGHT:
- 0.53
- VOLTS:
- 120V-277V
- WARRANTY:
- 5-YEARS
- WEIGHT:
- 0.4
- BALLAST BYPASS DIRECT:
- DUAL
- BEAM SPREAD:
- 120
- BULB ANSI BASE:
- G24Q-4
- BULB BASE:
- G24Q-4 (4-PIN)
- BURNING POSITION:
- UNIVERSAL
- CARTON CUBIC FEET:
- 0.0237
- CARTONS PER UNIT:
- 1
- CCT SELECTABLE:
- YES
- CEC:
- EXEMPT - BASE NOT REGULATED
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- CEC WEB TEXT:
- LAWFUL FOR SALE
- CRI:
- 80+
- DIMMABLE FUNCTION:
- ONLY DIMMABLE WITH COMPATIBLE DIMMING BALLASTS
- ENCLOSURE RATING:
- OPEN RATED LAMP
- FCC COMPLIANT:
- YES
- FEATURE 1:
- 90 DEGREE ROTATABLE AND LOCKABLE HEAD AND END-CAP
- FEATURE 2:
- EXTENDABLE BASE FOR HORIZONTAL APPLICATIONS
- FEATURE 3:
- 26W AND 42W TRIPLE CFL BULB REPLACEMENTS
- FEATURE 4:
- DUAL MODE TYPE A/B
- FEATURE 5:
- 5 CCT SELECTABLE
- FEATURE 6:
- DIMMABLE
- FEATURE 7:
- DAMP LOCATION RATED
- FEATURE 8:
- SUGGESTED FOR USE IN INDOOR COMMERCIAL DOWNLIGHTS AND HIGH CEILING APPLICATIONS
- FLUORESCENT EQUIVALENT:
- 42W
- HOUSING COLOR:
- WHITE
- INDOOR OUTDOOR:
- INDOOR
- INSTALLATION NOTES:
- SUGGESTED WATTAGE EQUIVALENCY 42W CFL
- IOT ENABLED:
- NO
- LAMP BALLAST TYPE A/B/C:
- TYPE A/B
- LAMP FILAMENT:
- LED
- LOCATION RATING:
- DAMP
- LONG DESCRIPTION:
- SATCO NUVO'S DUAL POSITION 16W 4-PIN PL LAMP IS THE PERFECT BLEND OF FLEXIBILITY FUNCTIONALITY AND INNOVATION. DESIGNED WITH VERSATILITY IN MIND THIS LAMP FEATURES A 90 DEGREE ROTATABLE HEAD THAT ALLOWS LIGHT TO BE DIRECTED AS NEEDED IN ...
- MATERIAL:
- ALUMINUM / POLYCARBONATE (PC)
- NSF APPROVED:
- YES
- OPERATING FREQUENCY:
- 50/60HZ
- OPERATING TEMP:
- -20C (-4F) TO +45C (+113F)
- PACK TYPE:
- BOX
- POWER FACTOR:
- 0.9
- QUANTITY IN PACK:
- 1
- RATED FOR VAPOR TIGHT FIXTURE:
- NO
- ROHS COMPLIANT:
- YES
- SDS CLASS:
- LED_LAMP
- SURGE PROTECTION:
- BUILT-IN SURGE PROTECTION - 1KV
- TECHNOLOGY:
- LED
- WATTAGE SELECTABLE:
- NO
- WATTS:
- 16W
- LAMPS:
- YES
- QUANTITY AVAILABLE AT MANUFACTURER:
- 7612
- LOCAL_ON_DISPLAY:
- 0
- ON DISPLAY IN SHOWROOM:
- No
- LOCAL_COUNT_ON_DISPLAY:
- 0
- LOCAL_SALE:
- 0
- LOCAL_COUNT_SALE:
- 0
- LOCAL_IN_STOCK:
- 0
- IN STOCK IN SHOWROOM:
- No
- LOCAL_COUNT-IN_STOCK:
- 0
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- WIDTH:
- 2.44
- WIDTH RANGE:
- 0-15''
- COLOR TEMPRATURE:
- WARM WHITE TO NATURAL LIGHT
- DLC APPROVED:
- NO
- DLC CLASSIFICATION:
- CCT SELECT DUAL MODE DUAL POSITION
- DLC ID:
- S-IJ9W0F S-PKQLBA
- DLC PRIMARY USE:
- REPLACEMENT LAMPS (PLUG AND PLAY) (UL TYPE A) REPLACEMENT LAMPS (PLUG AND PLAY) (UL TYPE A)
- IMAGE INFO:
- ''S21412.JPG:DEFAULT''
- BAA COMPLIANT:
- NO
- INCANDESCENT EQUIVALENT:
- 100W
- 3-WAY:
- #REF!
- MAX. DIAMETER:
- #REF!
- SDS SHEET LINK:
- #REF!
- AIR TIGHT:
- NO
- EFFICACY:
- 115.63 LPW
- ENCLOSED FIXTURE USE:
- NO
- JA8 COMPLIANT:
- NO
- R9 VALUE:
- 12
- ROMANCE COPY:
- SATCO NUVO'S DUAL POSITION PL LAMPS ARE THE PERFECT BLEND OF FLEXIBILITY FUNCTIONALITY AND INNOVATION. DESIGNED WITH VERSATILITY IN MIND THESE LAMPS FEATURE A 90 DEGREE ROTATABLE HEAD THAT ALLOWS LIGHT TO BE DIRECTED AS NEEDED IN BOTH VE...
- SHORT DESCRIPTION:
- 16PL/LED/HV/5CCT/A+B/G24Q
- STYLE:
- TRANSITIONAL
- TITLE 20 COMPLIANT:
- EXEMPT
- TOTAL HARMONIC DISTORTION:
- 20%
- CA PROP-65:
- LEAD
- EA LENGTH:
- 2.44
- SHAP CARTON WIDTH:
- 2.44''
- FLOURESCENT EQUIVALENT:
- 42W
- BALLASTING REQUIREMENTS:
- BALLAST REQUIRED (TYPE A) OR BALLAST BYPASS (TYPE B)
- BULB DIMMABLE:
- BOX
- LENS MATERIAL:
- LED
- START TYPE:
- TRANSITIONAL
- TITLE 24 COMPLIANT:
- NO
- ORDER IN MULTIPLES OF:
- 1
- CATEGORY:
- LED
- SUB-CATEGORY:
- LED CFL REPLACEMENTS PIN BASED
- COUNTRY OF ORIGIN:
- CHINA
- 4/30/2025 21:
- 12
- FINISH:
- ''FINISH FAMILY'':''WHITE''
- STANDARD STYLE:
- ''WATTS'':''16W''
- 5/2/2025 21:
- 30
- 5/6/2025 21:
- 29
- 2025-05-07 14:
- 21:20
- HAS CAMERA:
- NO
- HAS EMERGENCY BATTERY:
- NO
- HEIGHT:
- 6.89
- HEIGHT RANGE:
- 0-15''
