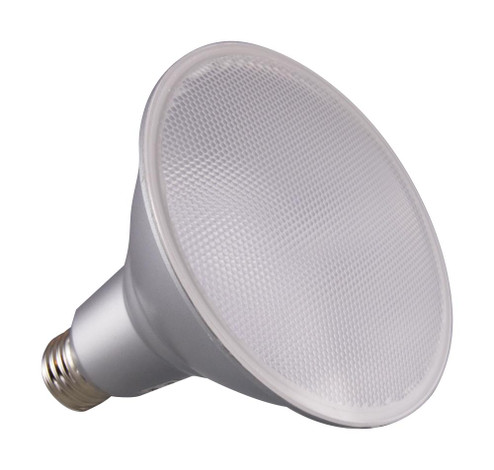

17.5 Watt; PAR38 LED; 3000K; 40 deg. Beam Angle; Medium base; 120 Volt Satco's S29455 LED 17.5-watt, PAR38 lamp maintains the familiar look of the Halogen PAR and Gen1 LED lamps they replace; but at 90 CRI and a higher lumens per watt ratio, it delivers superior light and improved efficiency. Designed for use in track, recessed fixtures and wet locations including outdoor and landscape applications, this versatile lamp has a multitude of applications. This lamp is dimmable and delivers 25,000 hours of warm white light. {ADDITIONAL FINISH INFORMATION: ''No Finish''}
- BULB DIMMABLE:
- YES-DIMMABLE
- BULB HOURS:
- 25000
- BULB KELVIN:
- 3000K
- BULB SHAPE:
- PAR38
- DIAMETER:
- 4.72
- HARMONIZED CODES:
- 8539.52.0030
- LENGTH:
- 5
- LUMENS:
- 1400L
- SHIP CARTON HEIGHT:
- 5.51''
- SHIP CARTON LENGTH:
- 4.92
- SHIP CARTON WIDTH:
- 4.92''
- SHIP WEIGHT:
- 0.49
- VOLTS:
- 120V
- WARRANTY:
- 5-YEARS
- BEAM SPREAD:
- 40
- BULB ANSI BASE:
- E26
- BULB BASE:
- Medium
- BULB FINISH:
- Clear
- CARTON CUBIC FEET:
- 0.0772
- CARTONS PER UNIT:
- 1
- CBCP:
- 1758
- CEC:
- CALIFORNIA T24 2016 - 2025 JA8 LISTED T20 LISTED
- COLOR TEMPRATURE:
- SOFT WHITE
- CRI:
- 90+
- ENCLOSURE RATING:
- ENCLOSED RATED LAMP
- HOUSING COLOR:
- Silver
- INCANDESCENT EQUIVALENT:
- 100W
- LAMP FILAMENT:
- LED
- LENS:
- YES
- LOCATION RATING:
- Wet
- OPERATING TEMP:
- -20C (-4F) TO +45C (+113F)
- PACK TYPE:
- BOX
- PHOTOCELL:
- No
- WATTS:
- 17.5W
- WIDTH:
- 4.92
- LAMPS:
- YES
- FINISH:
- LIGHT BULBS
- LOCAL_ON_DISPLAY:
- 0
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- LOCAL_CLEARANCE:
- 0
- WEIGHT:
- 0.49
- STANDARD STYLE:
- TRADITIONAL
- DIMMABLE:
- Yes-Dimmable
- CEC TERSE:
- Lawful for sale in California
- CEC WEB TEXT:
- CALIFORNIA T24 LISTED
- WIDTH RANGE:
- 0-15''
- AVAILABLE FOR PURCHASE:
- NO
- DIMMABLE FUNCTION:
- DIMMING RANGE FROM 100 TO LESS THAN OR EQUAL TO 20 PERCENT DEPENDING ON DIMMER CONTROL
- QUANTITY AVAILABLE AT MANUFACTURER:
- 2084
- CCT SELECTABLE:
- NO
- DIMMING TYPE:
- FORWARD PHASE OR REVERSE PHASE OR PHASE SELECTABLE
- ENCLOSURE RATING1:
- YES
- ES UNIQUE ID:
- ESID-2370512
- FCC COMPLIANT:
- YES
- FEATURE 1:
- SILVER COLORED REFLECTOR
- FEATURE 2:
- WET LOCATION RATED
- FEATURE 3:
- DIMMABLE
- FEATURE 4:
- WARM WHITE COLOR TEMPERATURE
- FEATURE 5:
- LONG LIFE -- 25000 AVERAGE RATED HOURS
- FEATURE 6:
- 100-WATT INCANDESCENT EQUIVALENT
- HAS DRIVER:
- NO
- HAS EMERGENCY BATTERY:
- NO
- INDOOR OUTDOOR:
- INDOOR OUTDOOR
- IOT ENABLED:
- NO
- LENS FINISH:
- CLEAR
- LENS MATERIAL:
- THERMO PLASTIC (PBT)
- LONG DESCRIPTION:
- SATCO'S S29455 LED 17.5-WATT PAR38 LAMP MAINTAINS THE FAMILIAR LOOK OF THE HALOGEN PAR AND GEN1 LED LAMPS THEY REPLACE BUT AT 90 CRI AND A HIGHER LUMENS PER WATT RATIO IT DELIVERS SUPERIOR LIGHT AND IMPROVED EFFICIENCY. DESIGNED FOR USE...
- MATERIAL:
- PLASTIC
- OPERATING FREQUENCY:
- 60HZ
- POWER FACTOR:
- 0.9
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- SDS CLASS:
- LED_LAMP
- SDS SHEET LINK:
- #REF!
- TECHNOLOGY:
- LED
- BURNING POSITION:
- UNIVERSAL
- ORDER IN MULTIPLES OF:
- 1
- More Info {1}:
- DIMMABLE
- More Info {2}:
- ENERGY STAR RATED
- More Info {3}:
- LONG LIFE -- 25000 AVERAGE RATED HOURS
- More Info {4}:
- SILVER COLORED REFLECTOR
- More Info {5}:
- WARM WHITE COLOR TEMPERATURE
- More Info {6}:
- WET LOCATION RATED
- DLC APPROVED:
- NO
- WATTAGE SELECTABLE:
- NO
- BAA COMPLIANT:
- NO
- 3-WAY:
- #REF!
- MAX. DIAMETER:
- #REF!
- DIMMABLE DOWN TO:
- 100 TO 10 PERCENT
- EFFICACY:
- 80.00 LPW
- ENCLOSED FIXTURE USE:
- YES
- JA8 COMPLIANT:
- YES
- ROMANCE COPY:
- SATCO'S LED 17.5-WATT PAR38 LAMP MAINTAINS THE FAMILIAR LOOK OF THE HALOGEN PAR AND GEN1 LED LAMPS THEY REPLACE BUT AT 90 CRI AND A HIGHER LUMENS PER WATT RATIO IT DELIVERS SUPERIOR LIGHT AND IMPROVED EFFICIENCY. DESIGNED FOR USE IN TRA...
- SHORT DESCRIPTION:
- 17.5PAR38/LED/40'/930/120V
- STYLE:
- UTILITY
- TITLE 20 COMPLIANT:
- YES
- TITLE 24 COMPLIANT:
- YES
- CA PROP-65:
- LEAD
- IMAGE INFO:
- ''S29455.JPG:DEFAULT''
- EA LENGTH:
- 4.92
- SHAP CARTON WIDTH:
- 4.92''
- DLC CLASSIFICATION:
- GENERAL SERVICE PARS
- SENSOR TYPE:
- NON FEDERALLY-REGULATED
- START TYPE:
- UTILITY
- CATEGORY:
- LED
- SUB-CATEGORY:
- LED PAR
- COUNTRY OF ORIGIN:
- CHINA
- 5/2/2025 21:
- 28
- HAS CAMERA:
- NO
- HEIGHT:
- 5.51
- HEIGHT RANGE:
- 0-15''
