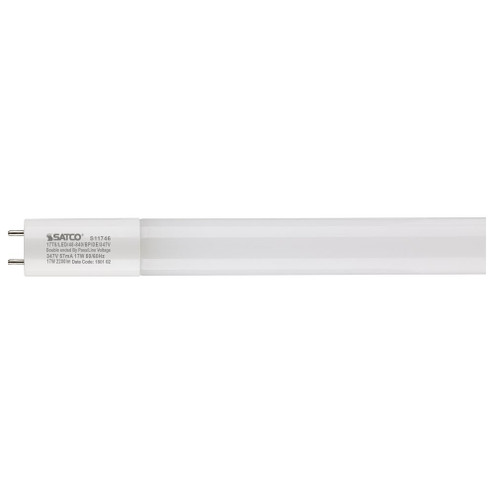

17 Watt; 4Ft LED T8; 4000K; 347V Canada Only; G13 Base; Type B Ballast Bypass; Double Ended Wiring
- AVAILABLE FOR PURCHASE:
- NO
- BULB HOURS:
- 50000
- BULB KELVIN:
- 4000K
- BULB SHAPE:
- T8
- DIAMETER:
- 1
- DIMMABLE:
- NON-DIMMABLE
- HARMONIZED CODES:
- 8539.52.0051
- LENGTH:
- 47.78
- LUMENS:
- 2200L
- SHIP CARTON HEIGHT:
- 1.1''
- SHIP CARTON LENGTH:
- 48
- SHIP CARTON WIDTH:
- 1.1''
- SHIP WEIGHT:
- 0.45
- VOLTS:
- 347V
- WARRANTY:
- 5 YEAR LIMITED - T8 LED BULBS - BALLAST BYPASS
- WEIGHT:
- 0.44
- BEAM SPREAD:
- 210
- BULB ANSI BASE:
- G13
- BULB BASE:
- MEDIUM BI PIN
- BULB FINISH:
- GLOSS WHITE
- CARTON CUBIC FEET:
- 0.0336
- CARTONS PER UNIT:
- 1
- COLOR TEMPRATURE:
- COOL WHITE
- CRI:
- 82
- DLC APPROVED:
- NO
- DLC ID:
- S-MWC31Y
- ENCLOSURE RATING:
- ENCLOSED RATED LAMP
- HOUSING COLOR:
- WHITE
- LAMP FILAMENT:
- LED
- LOCATION RATING:
- DAMP
- NOMINAL LENGTH:
- 48
- NSF APPROVED:
- YES
- OPERATING TEMP:
- -20C (-4F) TO +40C (+104F)
- PACK TYPE:
- SLEEVE
- WATTS:
- 17W
- LAMPS:
- YES
- QUANTITY AVAILABLE AT MANUFACTURER:
- UNKNOWN
- LOCAL_ON_DISPLAY:
- 0
- ON DISPLAY IN SHOWROOM:
- No
- LOCAL_COUNT_ON_DISPLAY:
- 0
- LOCAL_SALE:
- 0
- LOCAL_COUNT_SALE:
- 0
- LOCAL_IN_STOCK:
- 0
- IN STOCK IN SHOWROOM:
- No
- LOCAL_COUNT-IN_STOCK:
- 0
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- WIDTH:
- 1.00
- WIDTH RANGE:
- 0-15''
- ADDITIONAL INFO:
- CANADA ONLY
- BALLAST BYPASS DIRECT:
- BALLAST BYPASS
- BALLASTING REQUIREMENTS:
- BALLAST BYPASS
- CCT SELECTABLE:
- NO
- CEC:
- EXEMPT - BASE NOT REGULATED
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- CEC WEB TEXT:
- LAWFUL FOR SALE
- DLC CLASSIFICATION:
- STANDARD
- DLC PRIMARY USE:
- INTERNAL DRIVER/LINE VOLTAGE (UL TYPE B) LAMPS
- ENCLOSURE RATING1:
- YES
- FCC COMPLIANT:
- YES
- FEATURE 1:
- DOUBLE ENDED WIRING
- FEATURE 2:
- ALL GLASS TUBE
- FEATURE 3:
- DIRECT WIRE 347 LINE VOLTAGE - FOR USE IN CANADA
- FEATURE 4:
- TYPE B BALLAST BYPASS
- FEATURE 5:
- DAMP LOCATION RATED FOR BOTH INDOOR AND OUTDOOR USE
- FEATURE 6:
- LONG LIFE - 50000 HOURS
- FEATURE 7:
- DLC LISTED
- FEATURE 8:
- 4000K CCT 2200 LUMENS
- FLICKER FREE:
- YES
- FLUORESCENT EQUIVALENT:
- 32W
- HAS EMERGENCY BATTERY:
- NO
- INDOOR OUTDOOR:
- INDOOR OUTDOOR
- IOT ENABLED:
- NO
- LAMP BALLAST TYPE A/B/C:
- TYPE B
- LENS FINISH:
- FROST
- LENS MATERIAL:
- GLASS
- LONG DESCRIPTION:
- SATCO
- MATERIAL:
- PLASTIC
- MINIMUM COMPARTMENT SIZE:
- LENGTH: 48.43 IN. WIDTH: 13.39 IN. HEIGHT: 1.77 IN.''
- OPERATING FREQUENCY:
- 50/60HZ
- POWER FACTOR:
- 0.9
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- SDS CLASS:
- LED_LAMP
- TECHNOLOGY:
- LED
- TUBE GUARD USE:
- YES
- IMAGE INFO:
- ''''
- BURNING POSITION:
- UNIVERSAL
- More Info {1}:
- 4000K CCT 2200 LUMENS
- More Info {2}:
- ALL GLASS TUBE
- More Info {3}:
- DAMP LOCATION RATED FOR BOTH INDOOR AND OUTDOOR USE
- More Info {4}:
- DIRECT WIRE 347 LINE VOLTAGE - FOR USE IN CANADA
- More Info {5}:
- DLC LISTED
- More Info {6}:
- DOUBLE ENDED WIRING
- More Info {7}:
- LONG LIFE - 50000 HOURS
- More Info {8}:
- TYPE B BALLAST BYPASS
- ORDER IN MULTIPLES OF:
- 25
- WATTAGE SELECTABLE:
- NO
- BAA COMPLIANT:
- NO
- INCANDESCENT EQUIVALENT:
- 90W
- 3-WAY:
- #REF!
- MAX. DIAMETER:
- #REF!
- SDS SHEET LINK:
- #REF!
- EFFICACY:
- 129.41 LPW
- ENCLOSED FIXTURE USE:
- YES
- LAMP END TYPE:
- DOUBLE ENDED
- R9 VALUE:
- 8
- ROMANCE COPY:
- SATCO
- SHORT DESCRIPTION:
- 17T8/LED/48-840/BP/DE/347V
- TITLE 20 COMPLIANT:
- NO
- TOTAL HARMONIC DISTORTION:
- 20%
- CA PROP-65:
- LEAD
- EA LENGTH:
- 48
- SHAP CARTON WIDTH:
- 1.1''
- FLOURESCENT EQUIVALENT:
- 32W
