- AVAILABLE FOR PURCHASE:
- NO
- BULB HOURS:
- 50000
- BULB KELVIN:
- 3500K/4000K/5000K
- BULB SHAPE:
- T8
- DIAMETER:
- 1.13
- DIMMABLE:
- YES-DIMMABLE
- HARMONIZED CODES:
- 8539.52.0051
- LENGTH:
- 47.78
- LUMENS:
- 2100L/2300L/2200L
- SHIP WEIGHT:
- 1.08
- VOLTS:
- 120V-277V
- WARRANTY:
- 5 YEAR LIMITED - T8 LED BULBS - BALLAST BYPASS
- WEIGHT:
- 0.99
- ADDITIONAL INFO:
- 5 WATTS AND 700 LUMENS IN EMERGENCY MODE
- BALLAST BYPASS DIRECT:
- BALLAST BYPASS
- BALLASTING REQUIREMENTS:
- BALLAST BYPASS
- BEAM SPREAD:
- 140
- BULB ANSI BASE:
- G13
- BULB BASE:
- MEDIUM BI PIN
- BURNING POSITION:
- HORIZONTAL
- CARTONS PER UNIT:
- 1
- CCT SELECTABLE:
- YES
- CEC:
- EXEMPT - BASE NOT REGULATED
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- CEC WEB TEXT:
- LAWFUL FOR SALE
- CRI:
- 83
- DIMMING TYPE:
- PHASE CUT
- DLC APPROVED:
- YES
- DLC CLASSIFICATION:
- STANDARD
- DLC ID:
- S-MASCZT
- DLC PRIMARY USE:
- INTERNAL DRIVER/LINE VOLTAGE (UL TYPE B) LAMPS
- ENCLOSURE RATING:
- NOT FOR USE IN FULLY ENCLOSED VAPOR TIGHT FIXTURES
- ENCLOSURE RATING1:
- YES
- FCC COMPLIANT:
- YES
- FEATURE 1:
- PROVIDES UP TO 90 MINUTES OF ILLUMINATION DURING POWER OUTAGES
- FEATURE 2:
- BATTERY ON/OFF SWITCH CONSERVES BATTERY AFTER INSTALLATION
- FEATURE 3:
- INTEGRATED ALUMINUM HEATSINK TO PROMOTE HEAT DISSIPATION
- FEATURE 4:
- FEATURES COLORQUICK TECHNOLOGY ALLOWING FOR EASY SELECTION OF CCT AT INSTALLATION
- FEATURE 5:
- 5 YEAR WARRANTY
- FLUORESCENT EQUIVALENT:
- 32W
- HAS DRIVER:
- YES
- HAS EMERGENCY BATTERY:
- YES
- HOUSING COLOR:
- WHITE
- INDOOR OUTDOOR:
- INDOOR
- INSTALLATION NOTES:
- MAXIMUM MOUNTING HEIGHT: 13 FEET''
- IOT ENABLED:
- NO
- IP RATING:
- IP20
- LAMP BALLAST TYPE A/B/C:
- TYPE B
- LAMP FILAMENT:
- LED
- LENS MATERIAL:
- POLYCARBONATE (PC)
- LOCATION RATING:
- DAMP
- MATERIAL:
- ALUMINUM
- NSF APPROVED:
- YES
- OPERATING FREQUENCY:
- 60HZ
- OPERATING TEMP:
- -20C (-4F) TO +45C (+113F)
- PACK TYPE:
- BOX
- POWER FACTOR:
- 0.9
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- SDS CLASS:
- LED_LAMP
- SHATTER PROOF TEXT:
- YES
- SPECIFICATION NOTES:
- HEIGHT AT SWITCH: 1.30 INCHES WORK TIME AFTER POWER FAILURE: 90 MINUTES BATTERY RECHARGE TIME IS 24 HOURS''
- TECHNOLOGY:
- LED
- TUBE GUARD USE:
- NO
- WATTAGE SELECTABLE:
- NO
- WATTS:
- 17W
- LAMPS:
- YES
- QUANTITY AVAILABLE AT MANUFACTURER:
- 1445
- LOCAL_ON_DISPLAY:
- 0
- ON DISPLAY IN SHOWROOM:
- No
- LOCAL_COUNT_ON_DISPLAY:
- 0
- LOCAL_SALE:
- 0
- LOCAL_COUNT_SALE:
- 0
- LOCAL_IN_STOCK:
- 0
- IN STOCK IN SHOWROOM:
- No
- LOCAL_COUNT-IN_STOCK:
- 0
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- WIDTH:
- 1.13
- WIDTH RANGE:
- 0-15''
- IMAGE INFO:
- ''''
- BAA COMPLIANT:
- NO
- INCANDESCENT EQUIVALENT:
- 90W
- SHIP CARTON HEIGHT:
- 1.34''
- SHIP CARTON LENGTH:
- 48.11
- SHIP CARTON WIDTH:
- 2.05''
- NOMINAL LENGTH:
- 48
- 3-WAY:
- #REF!
- MAX. DIAMETER:
- #REF!
- SDS SHEET LINK:
- #REF!
- BATTERY CHEMISTRY:
- LITHIUM-ION (LI-ION)
- EFFICACY:
- 123.53/135.29/129.41 LPW
- ENCLOSED FIXTURE USE:
- YES
- JA8 COMPLIANT:
- NO
- LAMP END TYPE:
- SINGLE ENDED
- R9 VALUE:
- 12
- ROMANCE COPY:
- SATCO
- SHORT DESCRIPTION:

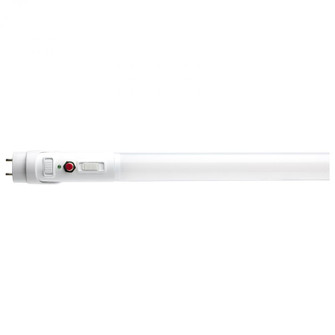

- 17T8/LED/48-CCT/BB/BP
- TITLE 20 COMPLIANT:
- NO
- TOTAL HARMONIC DISTORTION:
- <25%
- CA PROP-65:
- LEAD
- EA LENGTH:
- 48.11
- SHAP CARTON WIDTH:
- 2.05''
- FLOURESCENT EQUIVALENT:
- 32W
