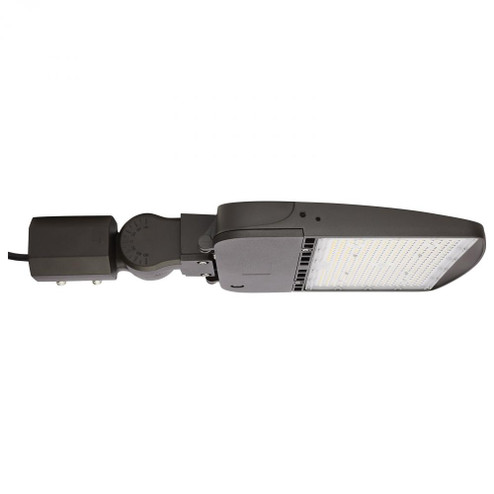

LED Area Light Type IV; 200W; Bronze Finish; 5000K; 120-277V {ADDITIONAL FINISH INFORMATION: ''Bronze''}
- AVAILABLE FOR PURCHASE:
- NO
- REQUIRED (NOT INCLUDED):
- 1 INTEGRATED BULBS
- STYLE:
- UTILITY
- ADDITIONAL INFO:
- POWDER COATED
- BULB HOURS:
- 50000
- BULB KELVIN:
- NATURAL LIGHT
- BULB TYPE:
- LED
- DIMMABLE:
- YES-DIMMABLE
- HARMONIZED CODES:
- 9405.42.6000
- LENGTH:
- 22.4
- LUMENS:
- 26536L
- SHIP CARTON HEIGHT:
- 5.71''
- SHIP CARTON LENGTH:
- 24.8
- SHIP CARTON WIDTH:
- 14.37''
- WARRANTY:
- 5-YEARS
- AMPS:
- 1.667-0.722A
- B_U_G_RATING:
- B4-U3-G4
- CA PROP-65:
- LEAD
- CARTON CUBIC FEET:
- 1.1776
- CARTONS PER UNIT:
- 1
- CCT SELECTABLE:
- NO
- CRI:
- 80+
- DARK SKY RATED:
- NO
- DIMMABLE FUNCTION:
- 0-10V DIMMING
- DLC CLASSIFICATION:
- PREMIUM
- DLC PRIMARY USE:
- OUTDOOR POLE/ARM-MOUNTED AREA AND ROADWAY LUMINAIRES
- FCC COMPLIANT:
- YES
- FEATURE 1:
- MAINTENANCE FREE - NO BULB TO CHANGE
- FEATURE 10:
- 5-YEAR WARRANTY
- FEATURE 2:
- DIE-CAST ALUMINUM BODY
- FEATURE 4:
- SLIP-FITTER MOUNT INCLUDED
- FEATURE 5:
- IP65 RATED
- FEATURE 6:
- MULTIPLE MOUNTING OPTIONS AVAILABLE
- FEATURE 7:
- ADD-ON SENSORS AVAILABLE
- FEATURE 8:
- TYPE IV LIGHTING DISTRIBUTION
- FEATURE 9:
- 4KV BUILT-IN SURGE PROTECTION
- HID EQUIV:
- 400W
- IMPACT RATING (IK):
- IK10
- INCLUDES:
- 2-3/8 INCH SLIP-FITTER MOUNT
- INDOOR OUTDOOR:
- INDOOR OUTDOOR
- IOT ENABLED:
- NO
- IP RATING:
- IP65
- LENS MATERIAL:
- POLYCARBONATE (PC)
- LONG DESCRIPTION:
- SATCO NUVO'S 65-845-4 200W LED AREA LIGHT TYPE IV PROVIDES NATURAL WHITE LIGHT ENGINEERED FOR THE HIGHEST PERFORMANCE IN MULTIPLE APPLICATIONS. THE LAMP'S HIGH LUMEN COUNT PROVIDES SUPERIOR ILLUMINATION. SATCO NUVO'S LED AREA LIGHTS BUIL...
- MATERIAL:
- DIE-CAST ALUMINUM
- OPERATING FREQUENCY:
- 50/60HZ
- OPERATING TEMPRATURE:
- -40C (-40F) TO +45C (+113F)
- PACK TYPE:
- BOX
- PHOTOCELL:
- OPTIONAL
- POWER FACTOR:
- >0.9
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- SAFETY LISTING:
- CULUS - CERTIFIED
- SDS CLASS:
- LED_FIXTURE
- SPECIFICATION NOTES:
- TYPE IV LIGHT DISTRIBUTION
- TEMPERATURE (CCT):
- 5000K
- WEIGHT LB.:
- 8.42
- QUANTITY AVAILABLE AT MANUFACTURER:
- 0
- LOCAL_ON_DISPLAY:
- 0
- ON DISPLAY IN SHOWROOM:
- No
- LOCAL_COUNT_ON_DISPLAY:
- 0
- LOCAL_SALE:
- 0
- LOCAL_COUNT_SALE:
- 0
- LOCAL_IN_STOCK:
- 0
- IN STOCK IN SHOWROOM:
- No
- LOCAL_COUNT-IN_STOCK:
- 0
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- HEIGHT:
- 3.11
- HEIGHT RANGE:
- 0-15''
- WIDTH:
- 14.40
- CEC:
- T20 EXEMPT - FIXTURES NOT REGULATED
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- CEC WEB TEXT:
- LAWFUL FOR SALE
- ANSI BASE:
- INTEGRATED
- WATTAGE SELECTABLE:
- NO
- IMAGE INFO:
- ''65-845-4.JPG:DEFAULT''
- INCANDESCENT EQUIVALENT:
- 1500W
- REPLACEABLE LIGHT SOURCE:
- NO
- REPLACES:
- #REF!
- SDS SHEET LINK:
- #REF!
- AVG RATED HOURS:
- 50000
- BULB TYPE1:
- LED
- COLOR TEMPERATURE:
- NATURAL LIGHT
- EACH HEIGHT:
- 5.71''
- EACH LENGTH:
- 24.8
- EACH WIDTH:
- 14.37''
- TARIFF CODE:
- 9405.42.6000
- BAA COMPLIANT:
- NO
- DIMMABLE DOWN TO:
- 100 TO 20 PERCENT
- EACH CUBE:
- 1.1776
- EACH QUANTITY:
- 1
- EFFICACY:
- 132.68 LPW
- JA8 COMPLIANT:
- NO
- R9 VALUE:
- 18
- ROMANCE COPY:
- SATCO NUVO'S LED AREA LIGHT TYPE IV PROVIDES NATURAL WHITE LIGHT ENGINEERED FOR THE HIGHEST PERFORMANCE IN MULTIPLE APPLICATIONS. THE LAMP'S HIGH LUMEN COUNT PROVIDES SUPERIOR ILLUMINATION. SATCO NUVO'S LED AREA LIGHTS BUILT USING DIE CA...
- SHORT DESCRIPTION:
- 200W LED AREA LIGHT TYPE IV
- TITLE 20 COMPLIANT:
- EXEMPT
- BULB SHAPE1:
- INTEGRATED LED
- MOUNTING PROCEDURE:
- WALL/PIPE ARM
- ORDER IN MULTIPLES OF:
- 1
- TITLE 24 COMPLIANT:
- NO
- FINISH:
- UTILITY
- STANDARD STYLE:
- OTHER UTILITY
- CATEGORY:
- OUTDOOR
- SUB CATEGORY:
- AREA LIGHT
- COUNTRY OF ORIGIN:
- VIETNAM
- FEATURE 3:
- UV STABILIZED POWDER COASTED BRONZE FINISH
- 4/29/2025 14:
- 21
- HAS CAMERA:
- NO
- HAS EMERGENCY BATTERY:
- NO
