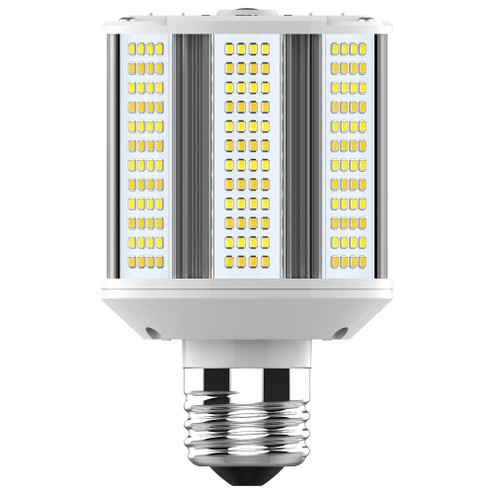

5/10/20 Wattage Selectable; LED Hi-Pro Wall Pack; CCT Selectable 3K/4K/5K; Type B; Ballast Bypass; Medium base; 100-277 Volt; ColorQuick Technology; PowerQuick Technology {ADDITIONAL FINISH INFORMATION: ''White''}
- AVAILABLE FOR PURCHASE:
- NO
- BULB HOURS:
- 50000
- BULB KELVIN:
- 3000K/4000K/5000K
- BULB SHAPE:
- CORNCOB
- DIAMETER:
- 3.62
- DIMMABLE:
- YES-DIMMABLE
- HARMONIZED CODES:
- 8539.52.0091
- LENGTH:
- 5.43
- LUMENS:
- 850L/1500L/3000L
- SHIP CARTON HEIGHT:
- 3.66''
- SHIP CARTON LENGTH:
- 7.48
- SHIP CARTON WIDTH:
- 3.66''
- SHIP WEIGHT:
- 1.21
- VOLTS:
- 120V-277V
- WARRANTY:
- 5 YEAR LIMITED - HI-PRO
- WEIGHT:
- 1
- BEAM SPREAD:
- 180
- BULB ANSI BASE:
- E26
- BULB BASE:
- MEDIUM
- BULB FINISH:
- WHITE
- BURNING POSITION:
- HORIZONTAL
- CARTON CUBIC FEET:
- 0.058
- CARTONS PER UNIT:
- 1
- CRI:
- 80+
- DIMMABLE FUNCTION:
- DIMMABLE ONLY VIA THE WATTAGE/LUMEN SELECTABLE DIAL INCLUDED ON LAMP
- ENCLOSURE RATING:
- ENCLOSED RATED LAMP
- HID EQUIVALENT:
- 100W
- HOUSING COLOR:
- WHITE
- IP RATING:
- IP64
- LAMP FILAMENT:
- LED
- LOCATION RATING:
- DAMP
- NSF APPROVED:
- NO
- OPERATING TEMP:
- -30C (-22F) TO +45C (+113F)
- PACK TYPE:
- BOX
- SURGE PROTECTION:
- BUILT-IN SURGE PROTECTION - 4KV
- WATTS:
- 5W/10W/20W
- LAMPS:
- YES
- LOCAL_ON_DISPLAY:
- 0
- ON DISPLAY IN SHOWROOM:
- No
- LOCAL_COUNT_ON_DISPLAY:
- 0
- LOCAL_SALE:
- 0
- LOCAL_COUNT_SALE:
- 0
- LOCAL_IN_STOCK:
- 0
- IN STOCK IN SHOWROOM:
- No
- LOCAL_COUNT-IN_STOCK:
- 0
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- WIDTH:
- 3.62
- WIDTH RANGE:
- 0-15''
- CEC:
- NON-COMPLIANT - < 82 CRI
- CEC TERSE:
- NON-COMPLIANT
- CEC WEB TEXT:
- NON-COMPLIANT
- QUANTITY AVAILABLE AT MANUFACTURER:
- UNKNOWN
- COLOR TEMPRATURE:
- WARM TO COOL WHITE
- IMAGE INFO:
- ''''
- BALLAST BYPASS DIRECT:
- BALLAST BYPASS
- BALLASTING REQUIREMENTS:
- BALLAST BYPASS
- CCT SELECTABLE:
- YES
- ENCLOSURE RATING1:
- YES
- FCC COMPLIANT:
- YES
- FEATURE 1:
- CCT SELECTABLE-3000K 4000K 5000K
- FEATURE 2:
- WATTAGE SELECTABLE
- FEATURE 3:
- ADVANCED THERMAL MANAGEMENT
- FEATURE 4:
- 4KV BUILT-IN SURGE PROTECTION
- FEATURE 5:
- RATED FOR USE IN ENCLOSED FIXTURES
- FEATURE 6:
- DAMP LOCATION RATED
- INDOOR OUTDOOR:
- INDOOR OUTDOOR
- IOT ENABLED:
- NO
- LAMP BALLAST TYPE A/B/C:
- TYPE B
- LENS MATERIAL:
- PLASTIC
- LONG DESCRIPTION:
- SATCO'S S28928 WATTAGE AND CCT SELECTABLE HI-PRO LED LAMP IS AN ENERGY EFFICIENT LIGHTING SOLUTION FOR LARGE SCALE LIGHTING APPLICATIONS. DESIGNED TO FOCUS CLEAN AND EFFICIENT LED LIGHT AT 180 DEGREES FROM HIGHER FIXTURES THIS LAMP IS PER...
- MATERIAL:
- ALUMINUM / PLASTIC
- MINIMUM COMPARTMENT SIZE:
- LENGTH: 8 IN. WIDTH: 8 IN. HEIGHT: 11 IN.''
- OPERATING FREQUENCY:
- 50-60HZ
- POWER FACTOR:
- >0.9
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- SDS CLASS:
- LED_LAMP
- TECHNOLOGY:
- LED
- WATTAGE SELECTABLE:
- YES
- STANDARD STYLE:
- TRADITIONAL
- More Info {1}:
- 4KV BUILT-IN SURGE PROTECTION
- More Info {2}:
- ADVANCED THERMAL MANAGEMENT
- More Info {3}:
- CCT SELECTABLE-3000K 4000K 5000K
- More Info {4}:
- DAMP LOCATION RATED
- More Info {5}:
- RATED FOR USE IN ENCLOSED FIXTURES
- More Info {6}:
- WATTAGE SELECTABLE
- DLC APPROVED:
- NO
- BAA COMPLIANT:
- NO
- INCANDESCENT EQUIVALENT:
- 25W/40W/60W
- 3-WAY:
- #REF!
- MAX. DIAMETER:
- #REF!
- SDS SHEET LINK:
- #REF!
- B.U. G. RATING:
- B1-U3-G1
- EFFICACY:
- 170.00/150.00/150.00 LPW
- ENCLOSED FIXTURE USE:
- YES
- R9 VALUE:
- 8
- ROMANCE COPY:
- SATCO'S WATTAGE AND CCT SELECTABLE HI-PRO LED LAMP IS AN ENERGY EFFICIENT LIGHTING SOLUTION FOR LARGE SCALE LIGHTING APPLICATIONS. DESIGNED TO FOCUS CLEAN AND EFFICIENT LED LIGHT AT 180 DEGREES FROM HIGHER FIXTURES THIS LAMP IS PERFECT FO...
- SHORT DESCRIPTION:
- 20W/LED/WP/CCT/E26/100-277V
- STYLE:
- CONTEMPORARY
- TITLE 20 COMPLIANT:
- NO
- CA PROP-65:
- LEAD
- BULB DIMMABLE:
- YES-DIMMABLE
- EA LENGTH:
- 7.48
- SHAP CARTON WIDTH:
- 3.66''
- INSTALLATION NOTES:
- NOT FOR USE IN VAPOR TIGHT FIXTURES.
- DLC CLASSIFICATION:
- CCT SELECTABLE
- START TYPE:
- CONTEMPORARY
- TITLE 24 COMPLIANT:
- NO
- JA8 COMPLIANT:
- NO
