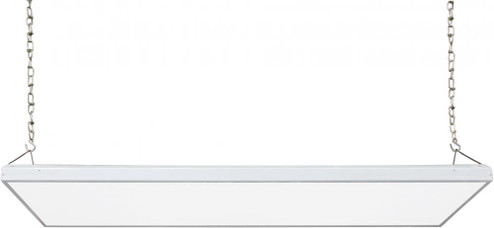

LED 4 ft. Linear Hi-Bay; 225W; 4000K; 100-277V {ADDITIONAL FINISH INFORMATION: ''White''}
- STYLE:
- Utility
- BULB DIMMABLE:
- 0-10V Dimming Only
- BULB HOURS:
- 50000
- BULB SHAPE:
- Integrated LED
- BULB TYPE:
- LED
- CHAIN INCLUDED:
- 48 in.
- HARMONIZED CODES:
- 9405.11.6020
- LENGTH:
- 45.87
- LUMENS:
- 30375L
- SHIP CARTON HEIGHT:
- 15.75''
- SHIP CARTON LENGTH:
- 47.83
- SHIP CARTON WIDTH:
- 4.33''
- SHIP WEIGHT:
- 20.5
- VOLTAGE:
- 277V
- WARRANTY:
- 5 Year Limited - Fixtures
- ADDITIONAL INFO:
- Includes brackets and 48 inch chain
- BEAM ANGLE:
- 120
- CARTON CUBIC FEET:
- 1.8877
- CARTONS PER UNIT:
- 1
- CEC:
- T20 EXEMPT - FIXTURES NOT REGULATED
- COLOR TEMPRATURE:
- Cool White
- CRI:
- 80
- DLC APPROVED:
- Yes
- DLC ID:
- PLDSSJW5VJI8
- IP RATING:
- IP20
- LOCATION RATING:
- Damp
- OPERATING TEMP:
- -20C (-4F) TO +45C (+113F)
- PACK TYPE:
- Box
- HEIGHT:
- 2.99
- WIDTH:
- 12.60
- FINISH:
- WHITE
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- BULBS:
- 225W WATT:225W WATT:1
- STANDARD STYLE:
- TRADITIONAL
- DIMMABLE:
- Yes-Dimmable
- DIMMABLE FUNCTION:
- 0-10V DIMMING ONLY
- HEIGHT RANGE:
- 0-15''
- AVAILABLE FOR PURCHASE:
- YES
- REQUIRED (NOT INCLUDED):
- 1 INTEGRATED BULBS
- QUANTITY AVAILABLE AT MANUFACTURER:
- 45
- ANSI BASE:
- INTEGRATED
- CONNECTION:
- DIRECT WIRED
- DIMMING TYPE:
- 0-10V
- DLC CLASSIFICATION:
- PREMIUM
- DLC PRIMARY USE:
- HIGH-BAY LUMINAIRES FOR COMMERCIAL AND INDUSTRIAL BUILDINGS
- FCC COMPLIANT:
- YES
- FEATURE 1:
- LENGTH: 45.87 INCHES WIDTH: 12.60 INCHES HEIGHT: 2.99 INCHES''
- FEATURE 2:
- DIMMABLE
- FEATURE 3:
- DAMP LOCATION RATED FOR INDOOR USE
- FEATURE 4:
- 4000K COOL WHITE LIGHT
- FEATURE 5:
- SUPERIOR 80 CRI LIGHT QUALITY
- FEATURE 6:
- 5 YEAR LIMITED WARRANTY
- FEATURE 7:
- 30375 LUMENS
- FEATURE 8:
- RATED FOR 50000 HOURS
- FEATURE 9:
- FCC AND ROHS COMPLIANT
- FINISH FAMILY:
- WHITE
- INCLUDES:
- (2) 48 INCH CHAIN (2) V-CLIPS (1) 1.02 INCH MOUNTING BRACKET
- INDOOR OUTDOOR:
- INDOOR
- LONG DESCRIPTION:
- SATCO
- MOUNTING PROCEDURE:
- CEILING: CHAIN
- NUMBER OF LAMPS:
- 1
- POWER FACTOR:
- 0.94
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- SDS CLASS:
- LED_FIXTURE
- TEMPERATURE (CCT):
- 4000K
- WEIGHT LB.:
- 19.48
- LAMPS:
- YES
- AMPS:
- 2.250-0.812A
- SDS SHEET LINK:
- #REF!
- BULB KELVIN:
- COOL WHITE
- BEAM SPREAD:
- 120
- CA PROP-65:
- LEAD
- OPERATING TEMPRATURE:
- -20C (-4F) TO +45C (+113F)
- REPLACEABLE LIGHT SOURCE:
- NO
- SAFETY LISTING:
- CULUS - LISTED
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- CCT SELECTABLE:
- NO
- More Info {1}:
- 30375 LUMENS
- More Info {2}:
- 4000K COOL WHITE LIGHT
- More Info {3}:
- 5 YEAR LIMITED WARRANTY
- More Info {4}:
- DAMP LOCATION RATED FOR INDOOR USE
- More Info {5}:
- DIMMABLE
- More Info {6}:
- FCC AND ROHS COMPLIANT
- More Info {7}:
- LENGTH: 45.87 INCHES WIDTH: 12.60 INCHES HEIGHT: 2.99 INCHES''
- More Info {8}:
- RATED FOR 50000 HOURS
- More Info {9}:
- SUPERIOR 80 CRI LIGHT QUALITY
- MATERIAL:
- ALUMINUM
- CEC WEB TEXT:
- LAWFUL FOR SALE
- WATTAGE SELECTABLE:
- NO
- INCANDESCENT EQUIVALENT:
- 2000W
- OPERATING FREQUENCY:
- 50/60HZ
- REPLACES:
- #REF!
- AVG RATED HOURS:
- 50000
- BULB SHAPE1:
- INTEGRATED LED
- BULB TYPE1:
- LED
- COLOR TEMPERATURE:
- COOL WHITE
- EACH HEIGHT:
- 15.75''
- EACH LENGTH:
- 47.83
- EACH WIDTH:
- 4.33''
- TARIFF CODE:
- 9405.11.6020
- BAA COMPLIANT:
- NO
- DIMMABLE DOWN TO:
- 100 TO 20 PERCENT
- EACH CUBE:
- 1.8877
- EACH QUANTITY:
- 1
- EFFICACY:
- 135.00 LPW
- JA8 COMPLIANT:
- NO
- R9 VALUE:
- 9
- ROMANCE COPY:
- SATCO
- SHORT DESCRIPTION:
- 225W LED 4FT LINEAR HI-BAY
- TITLE 20 COMPLIANT:
- NO
- TITLE 24 COMPLIANT:
- NO
- TOTAL HARMONIC DISTORTION:
- 9.30%
