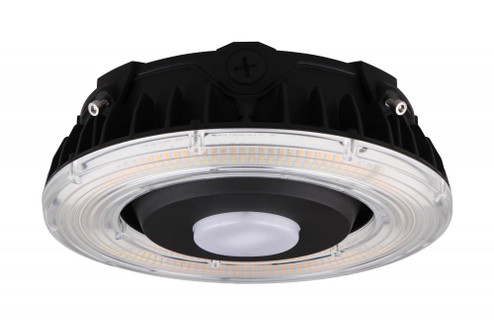

LED Canopy Fixture; 25 Watt; CCT Selectable; Bronze Finish; 100-277 Volt {ADDITIONAL FINISH INFORMATION: ''Bronze''}
- STYLE:
- Utility
- BULB DIMMABLE:
- 1-10V Dimming Only
- BULB HOURS:
- 50000
- BULB TYPE:
- LED
- DIAMETER:
- 10.03
- HARMONIZED CODES:
- 9405.11.6020
- LUMENS:
- 2800L-3322L
- SHIP CARTON HEIGHT:
- 5.51''
- SHIP CARTON LENGTH:
- 11.81
- SHIP CARTON WIDTH:
- 11.81''
- SHIP WEIGHT:
- 5.5
- WARRANTY:
- 5 Year Limited - Fixtures
- WIRE INCLUDED:
- 11.81
- BEAM ANGLE:
- 150
- CARTON CUBIC FEET:
- 0.4447
- CARTONS PER UNIT:
- 1
- CEC:
- T20 EXEMPT - FIXTURES NOT REGULATED
- CRI:
- 80+
- DLC APPROVED:
- Yes
- DLC ID:
- PLNTBHUGY0NY
- IP RATING:
- IP65
- LOCATION RATING:
- Wet
- OPERATING TEMP:
- -30C (-22F) TO +50C (+122F)
- PACK TYPE:
- Box
- WIRE COLOR:
- WHITE / BLACK / GREEN / GRAY / YELLOW
- HEIGHT:
- 3.13
- WIDTH:
- 10.03
- FINISH:
- BRONZE
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- Standard Style:
- Traditional
- COLOR TEMPRATURE:
- Warm to Cool White
- DIMMABLE:
- Yes-Dimmable
- DIMMABLE FUNCTION:
- 0-10V DIMMING ONLY
- HEIGHT RANGE:
- 0-15''
- BULB SHAPE:
- INTEGRATED LED
- AVAILABLE FOR PURCHASE:
- YES
- REQUIRED (NOT INCLUDED):
- 1 INTEGRATED BULBS
- QUANTITY AVAILABLE AT MANUFACTURER:
- 189
- ANSI BASE:
- INTEGRATED
- B_U_G_RATING:
- B1-U3-G1
- CCT SELECTABLE:
- YES
- CONNECTION:
- HARDWIRE
- DIMMING TYPE:
- 0-10V
- DLC CLASSIFICATION:
- PREMIUM
- DLC PRIMARY USE:
- PARKING GARAGE LUMINAIRES
- FCC COMPLIANT:
- YES
- FEATURE 1:
- ADJUSTABLE COLOR TEMPERATURE: 3000K 4000K 5000K
- FEATURE 2:
- ADJUSTABLE LUMEN RANGE: 2800~3322
- FEATURE 3:
- DLC PREMIUM CERTIFIED
- FEATURE 4:
- 1-10V DIMMING
- FEATURE 5:
- IP65 RATED
- FEATURE 6:
- 150 DEGREE BEAM SPREAD
- FEATURE 7:
- 150 DEGREE BEAM SPREAD
- FINISH FAMILY:
- BRONZE
- IC RATED:
- YES
- INDOOR OUTDOOR:
- OUTDOOR
- LENS FINISH:
- CLEAR
- LENS MATERIAL:
- POLYCARBONATE (PC)
- MATERIAL:
- ALUMINUM ALLOY
- MOUNTING PROCEDURE:
- CEILING
- NUMBER OF LAMPS:
- 1
- OPERATING FREQUENCY:
- 50-60HZ
- POWER FACTOR:
- 0.9
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- SDS CLASS:
- LED_FIXTURE
- TEMPERATURE (CCT):
- 3000K/4000K/5000K
- WEIGHT LB.:
- 4.41
- WIRE QUANTITY:
- 5
- WIRE TEMP RATING:
- 105C (221F)
- LAMPS:
- YES
- AMPS:
- 0.250-0.090A
- SDS SHEET LINK:
- #REF!
- LONG DESCRIPTION:
- SATCO
- BULB KELVIN:
- WARM TO COOL WHITE
- BEAM SPREAD:
- 150
- CA PROP-65:
- LEAD
- INCANDESCENT EQUIVALENT:
- 80W
- OPERATING TEMPRATURE:
- -30C (-22F) TO +50C (+122F)
- REPLACEABLE LIGHT SOURCE:
- NO
- SAFETY LISTING:
- CULUS - LISTED
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- CEC WEB TEXT:
- LAWFUL FOR SALE
- IMPACT RATING (IK):
- IK10
- WATTAGE SELECTABLE:
- NO
- REPLACES:
- #REF!
- AVG RATED HOURS:
- 50000
- BULB SHAPE1:
- INTEGRATED LED
- BULB TYPE1:
- LED
- COLOR TEMPERATURE:
- WARM TO COOL WHITE
- EACH HEIGHT:
- 5.51''
- EACH LENGTH:
- 11.81
- EACH WIDTH:
- 11.81''
- TARIFF CODE:
- 9405.11.6020
- WIRE LENGTH:
- 11.81
- BAA COMPLIANT:
- NO
- DIMMABLE DOWN TO:
- 100 TO 20 PERCENT
- EACH CUBE:
- 0.4447
- EACH QUANTITY:
- 1
- EFFICACY:
- 112.00/122.44/132.88 LPW
- JA8 COMPLIANT:
- NO
- ROMANCE COPY:
- SATCO
- SHORT DESCRIPTION:
- 25W LED CANOPY LIGHT
- TITLE 20 COMPLIANT:
- NO
- TITLE 24 COMPLIANT:
- NO
- TOTAL HARMONIC DISTORTION:
- 15%
