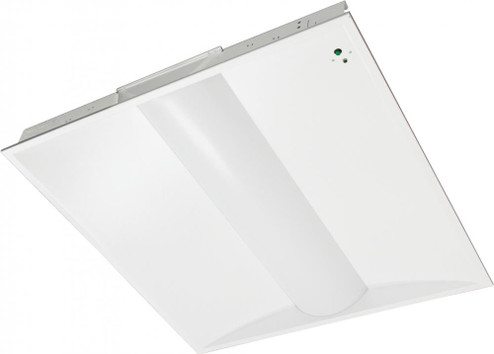

LED Emergency Troffer Fixture; 30W; 2 ft. x 2 ft.; 3500K; 100-277V {ADDITIONAL FINISH INFORMATION: ''White''}
- STYLE:
- Utility
- BULB DIMMABLE:
- 0-10V Dimming Only Use 120-277V or 347V Dimmers only
- BULB HOURS:
- 50000
- BULB SHAPE:
- Integrated LED
- BULB TYPE:
- LED
- HARMONIZED CODES:
- 9405.11.6020
- LENGTH:
- 23.59
- LUMENS:
- 3750L
- SHIP CARTON HEIGHT:
- 27.09''
- SHIP CARTON LENGTH:
- 25.98
- SHIP CARTON WIDTH:
- 6.61''
- SHIP WEIGHT:
- 14.77
- VOLTAGE:
- 277V
- WARRANTY:
- 5 Year Limited - Fixtures
- CARTON CUBIC FEET:
- 2.6922
- CARTONS PER UNIT:
- 1
- CEC:
- T20 EXEMPT - FIXTURES NOT REGULATED
- COLOR TEMPRATURE:
- Neutral White
- CRI:
- 80
- DLC APPROVED:
- Yes
- DLC ID:
- PLBAE3UM06DE
- LOCATION RATING:
- Damp
- OPERATING TEMP:
- -20C (-4F) TO +40C (+104F)
- PACK TYPE:
- Box
- HEIGHT:
- 2.75
- WIDTH:
- 23.59
- FINISH:
- WHITE
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- BULBS:
- 30W WATT:30W WATT:1
- STANDARD STYLE:
- TRADITIONAL
- DIMMABLE:
- Yes-Dimmable
- DIMMABLE FUNCTION:
- 0-10V DIMMING ONLY USE 120-277V OR 347V DIMMERS ONLY
- HEIGHT RANGE:
- 0-15''
- WIDTH RANGE:
- 20-25''
- AVAILABLE FOR PURCHASE:
- YES
- REQUIRED (NOT INCLUDED):
- 1 INTEGRATED BULBS
- QUANTITY AVAILABLE AT MANUFACTURER:
- 13
- ANSI BASE:
- INTEGRATED
- CONNECTION:
- DIRECT WIRED
- DIMMING TYPE:
- 0-10V
- DLC CLASSIFICATION:
- STANDARD
- DLC PRIMARY USE:
- 2X2 LUMINAIRES FOR AMBIENT LIGHTING OF INTERIOR COMMERCIAL SPACES
- FCC COMPLIANT:
- YES
- FEATURE 1:
- LENGTH: 23.59 INCHES WIDTH: 23.59 INCHES HEIGHT: 2.75 INCHES''
- FEATURE 2:
- DIMMABLE
- FEATURE 3:
- DAMP LOCATION RATED FOR INDOOR USE
- FEATURE 4:
- 3500K NEUTRAL WHITE LIGHT
- FEATURE 5:
- SUPERIOR 80 CRI LIGHT QUALITY
- FEATURE 6:
- 5 YEAR LIMITED WARRANTY
- FEATURE 7:
- 3750 LUMENS
- FEATURE 8:
- RATED FOR 50000 HOURS
- FEATURE 9:
- FCC AND ROHS COMPLIANT
- FINISH FAMILY:
- WHITE
- FIXTURE SHAPE:
- SQUARE
- FLICKER FREE:
- YES
- HAS EMERGENCY BATTERY:
- YES
- INDOOR OUTDOOR:
- INDOOR
- LONG DESCRIPTION:
- SATCO'S 65-445 30 WATT 2' X 2' TROFFER FIXTURE PROVIDES BROAD EVEN LIGHT DISTRIBUTION IN ALL COMMERCIAL APPLICATIONS. ILLUMINATE YOUR OFFICE OR WORK SPACE WITH THIS ENERGY SAVING MAINTENANCE FREE LED FIXTURE. WITH AN ACRYLIC LINEAR PRI...
- MOUNTING PROCEDURE:
- CEILING
- NUMBER OF LAMPS:
- 1
- PANEL SIZE:
- 2X2
- POWER FACTOR:
- 0.88
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- SDS CLASS:
- LED_FIXTURE
- TEMPERATURE (CCT):
- 3500K
- WEIGHT LB.:
- 14.03
- LAMPS:
- YES
- AMPS:
- 0.300-0.108A
- LENS MATERIAL:
- POLYCARBONATE (PC)
- MATERIAL:
- STEEL
- SDS SHEET LINK:
- #REF!
- BULB KELVIN:
- NEUTRAL WHITE
- CA PROP-65:
- LEAD
- OPERATING TEMPRATURE:
- -20C (-4F) TO +40C (+104F)
- REPLACEABLE LIGHT SOURCE:
- NO
- SAFETY LISTING:
- CULUS - LISTED
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- CCT SELECTABLE:
- NO
- HAS DRIVER:
- YES
- IC RATED:
- YES
- WATTAGE SELECTABLE:
- NO
- INCANDESCENT EQUIVALENT:
- 125W
- REPLACES:
- #REF!
- AVG RATED HOURS:
- 50000
- BULB SHAPE1:
- INTEGRATED LED
- BULB TYPE1:
- LED
- COLOR TEMPERATURE:
- NEUTRAL WHITE
- EACH HEIGHT:
- 27.09''
- EACH LENGTH:
- 25.98
- EACH WIDTH:
- 6.61''
- TARIFF CODE:
- 9405.11.6020
- BAA COMPLIANT:
- NO
- BATTERY CHEMISTRY:
- LIFEPO4
- DIMMABLE DOWN TO:
- 100 TO 20 PERCENT
- EACH CUBE:
- 2.6922
- EACH QUANTITY:
- 1
- EFFICACY:
- 125.00 LPW
- JA8 COMPLIANT:
- NO
- ROMANCE COPY:
- SATCO'S 30 WATT 2' X 2' TROFFER FIXTURE PROVIDES BROAD EVEN LIGHT DISTRIBUTION IN ALL COMMERCIAL APPLICATIONS. ILLUMINATE YOUR OFFICE OR WORK SPACE WITH THIS ENERGY SAVING MAINTENANCE FREE LED FIXTURE. WITH AN ACRYLIC LINEAR PRISMATIC ...
- SHORT DESCRIPTION:
- 2FT X 2FT EM LED TROFFER 30W
- TITLE 20 COMPLIANT:
- NO
- TITLE 24 COMPLIANT:
- NO
- TOTAL HARMONIC DISTORTION:
- 13.92%
