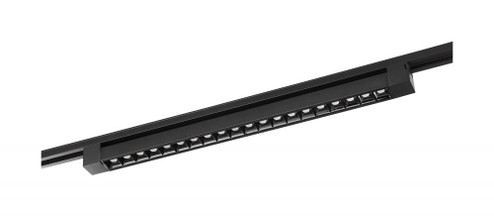

LED; 2FT; Track Light Bar; Black Finish; 30 deg. Beam Angle (81|TH503)

$154.00
Free Shipping on orders over $99. Usually ships in 1-3 days.
Write a Review
Finish: BLACK
Width: 1.50in
Height: 1.25in

Estimated Quantity at Manufacturer 44

X
LED; 2FT; Track Light Bar; Black Finish; 30 deg. Beam Angle {ADDITIONAL FINISH INFORMATION: ''Black''}
STYLE:
MODERN AND CONTEMPORARY
BULB DIMMABLE:
Yes - Dimmable
BULB HOURS:
30000
BULB TYPE:
LED
EXTENDS:
2
HARMONIZED CODES:
9405.11.6020
LENGTH:
24
LUMENS:
1920L
SHIP CARTON HEIGHT:
24.25''
SHIP CARTON LENGTH:
2.5
SHIP CARTON WIDTH:
1.75''
SHIP WEIGHT:
1.52
WARRANTY:
3 Year Limited - Fixtures
ADDITIONAL INFO:
Head rotates 270 degrees
BEAM ANGLE:
30
CARTON CUBIC FEET:
0.0614
CARTONS PER UNIT:
1
CEC:
T20 EXEMPT - FIXTURES NOT REGULATED
COLOR TEMPRATURE:
Warm White
CRI:
90
LOCATION RATING:
Dry
OPERATING TEMP:
-17C (+1.4F) TO +45C (+113F)
HEIGHT:
1.25
WIDTH:
1.50
FINISH:
BLACK
ON DISPLAY IN SHOWROOM:
No
IN STOCK IN SHOWROOM:
No
STANDARD STYLE:
TRADITIONAL
DIMMABLE:
Yes-Dimmable
HEIGHT RANGE:
0-15''
WIDTH RANGE:
0-15''
BULB SHAPE:
INTEGRATED LED
AVAILABLE FOR PURCHASE:
YES
DIMMABLE FUNCTION:
120V ONLY
REQUIRED (NOT INCLUDED):
1 INTEGRATED BULBS
QUANTITY AVAILABLE AT MANUFACTURER:
44
ANSI BASE:
INTEGRATED
DIMMING TYPE:
FORWARD PHASE OR REVERSE PHASE OR PHASE SELECTABLE
FCC COMPLIANT:
YES
FEATURE 1:
NEW MONO POINTS
FEATURE 2:
NEW LINEAR TRACK BARS
FEATURE 3:
EXPANDED TRACK HEAD OFFERING
FEATURE 4:
CUSTOMIZABLE ACCENT LIGHTING FOR LOW TO MID CEILING
FEATURE 5:
RESIDENTIAL AND COMMERCIAL
FINISH FAMILY:
BLACK
INDOOR OUTDOOR:
INDOOR
LENS MATERIAL:
POLY METHYL METHACRYLATE (PMMA)
LONG DESCRIPTION:
AT HOME OR IN A COMMERCIAL SPACE SATCO'S TH503 TRACK BAR IS AN EASY WAY TO ADD LINEAR EFFECTS TO YOUR LIGHTING AND ACCENT ARCHITECTURAL FEATURES LIKE RELIEF WALLS ARTWORK SIGNS AND MORE. THE MANUFACTURED BARS CONTAIN SUPERIOR LONG-LAS...
MATERIAL:
ALUMINUM / PLASTIC
MOUNTING PROCEDURE:
CEILING
NUMBER OF LAMPS:
1
OPERATING FREQUENCY:
60HZ
PACK TYPE:
BOX
POWER FACTOR:
>0.9
QUANTITY IN PACK:
1
ROHS COMPLIANT:
YES
TEMPERATURE (CCT):
3000K
WEIGHT LB.:
1.36
LAMPS:
YES
AMPS:
0.250A
SDS SHEET LINK:
#REF!
SDS CLASS:
LED_FIXTURE
BULB KELVIN:
WARM WHITE
BEAM SPREAD:
30
CA PROP-65:
LEAD
INCANDESCENT EQUIVALENT:
150W
OPERATING TEMPRATURE:
-17C (+1.4F) TO +45C (+113F)
REPLACEABLE LIGHT SOURCE:
NO
SAFETY LISTING:
CETLUS - LISTED
CEC TERSE:
LAWFUL FOR SALE IN CALIFORNIA
CCT SELECTABLE:
NO
More Info {1}:
CUSTOMIZABLE ACCENT LIGHTING FOR LOW TO MID CEILING
More Info {2}:
EXPANDED TRACK HEAD OFFERING
More Info {3}:
NEW LINEAR TRACK BARS
More Info {4}:
NEW MONO POINTS
More Info {5}:
RESIDENTIAL AND COMMERCIAL
CEC WEB TEXT:
LAWFUL FOR SALE
WATTAGE SELECTABLE:
NO
REPLACES:
#REF!
AVG RATED HOURS:
30000
BULB SHAPE1:
INTEGRATED LED
BULB TYPE1:
LED
COLOR TEMPERATURE:
WARM WHITE
EACH HEIGHT:
24.25''
EACH LENGTH:
2.5
EACH WIDTH:
1.75''
TARIFF CODE:
9405.11.6020
BAA COMPLIANT:
NO
DIMMABLE DOWN TO:
100 TO 20 PERCENT
EACH CUBE:
0.0614
EACH QUANTITY:
1
EFFICACY:
64.00 LPW
JA8 COMPLIANT:
NO
ROMANCE COPY:
THIS SATCO TRACK EXPANSION INCLUDES MONO POINTS LINEAR TRACK BARS AND THE ADDITION OF SEVERAL NEW TRACK HEADS WITH MODERN PROFILES AND ADJUSTABLE DESIGN FEATURES OFFERING EVEN MORE VERSATILITY AND NEW DIRECTION TO OUR TRACK PRODUCTS! THE...
SHORT DESCRIPTION:
30W LED 2 FOOT TRACK BAR
TITLE 20 COMPLIANT:
NO
TITLE 24 COMPLIANT:
NO
