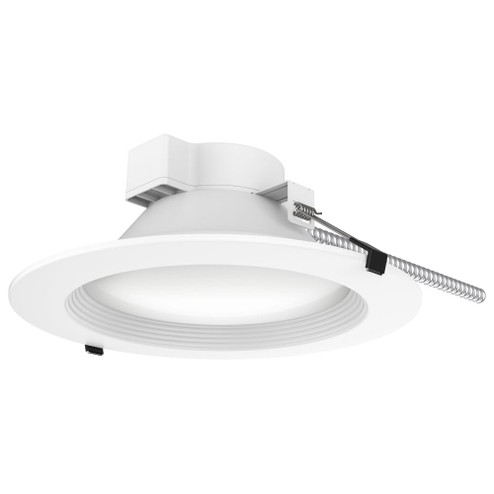

30 Watt Commercial LED Downlight; 10 in.; CCT Adjustable; 120-277 volt; Econo {ADDITIONAL FINISH INFORMATION: ''White''}
- AVAILABLE FOR PURCHASE:
- NO
- REQUIRED (NOT INCLUDED):
- 1 INTEGRATED BULBS
- STYLE:
- UTILITY
- BULB HOURS:
- 50000
- BULB KELVIN:
- WARM TO COOL WHITE
- BULB TYPE:
- LED
- DIAMETER:
- 11.78
- DIMMABLE:
- YES-DIMMABLE
- HARMONIZED CODES:
- 9405.42.6000
- LUMENS:
- 3500L
- SHIP CARTON HEIGHT:
- 12.8''
- SHIP CARTON LENGTH:
- 12.8
- SHIP CARTON WIDTH:
- 4.72''
- WARRANTY:
- 5-YEARS
- AMPS:
- 0.240A
- BEAM SPREAD:
- 90
- CA PROP-65:
- LEAD
- CAN SIZE:
- 10 IN.
- CARTON CUBIC FEET:
- 0.4475
- CARTONS PER UNIT:
- 1
- CCT SELECTABLE:
- YES
- CEILING APERTURE:
- 9.45 IN. CUTOUT
- CRI:
- 80+
- DIMMABLE FUNCTION:
- 0-10V DIMMING
- FCC COMPLIANT:
- YES
- FEATURE 1:
- DIAMETER: 11.78 INCHES HEIGHT: 4.49 INCHES''
- FEATURE 2:
- WET LOCATION RATED FOR BOTH INDOOR AND OUTDOOR USE
- FEATURE 3:
- WHITE FINISH
- FEATURE 4:
- 9.45 INCH CEILING APERTURE
- FEATURE 5:
- CCT SELECTABLE
- FEATURE 6:
- RATED FOR 50000 HOURS
- FEATURE 7:
- DIMMABLE
- FEATURE 8:
- 5 YEAR LIMITED WARRANTY
- FEATURE 9:
- SUPERIOR 80 CRI LIGHT QUALITY
- FINISH:
- WHITE
- FIXTURE SHAPE:
- ROUND
- HAS DRIVER:
- YES
- IC RATED:
- YES
- INDOOR OUTDOOR:
- INDOOR OUTDOOR
- IOT ENABLED:
- NO
- LENS MATERIAL:
- POLYCARBONATE (PC)
- LONG DESCRIPTION:
- SATCO'S S11853 30 WATT COMMERCIAL LED DOWNLIGHT OFFERS VERSATILITY AND FUNCTIONALITY IN COMMERCIAL APPLICATIONS. THE ROUND FIXTURE IN WHITE FINISH IS A PRACTICAL SOLUTION FOR ENERGY EFFICIENT LIGHTING. THIS DIMMABLE RECESSED DOWNLIGHT IS ...
- MATERIAL:
- ALUMINUM
- MOUNTING PROCEDURE:
- CEILING
- OPERATING FREQUENCY:
- 50/60HZ
- OPERATING TEMPRATURE:
- -4F TO +104F (-20C TO +40C)
- PACK TYPE:
- BOX
- QUANTITY IN PACK:
- 1
- REPLACEABLE LIGHT SOURCE:
- NO
- ROHS COMPLIANT:
- YES
- SAFETY LISTING:
- CETLUS - LISTED
- SDS CLASS:
- LED_FIXTURE
- SLOPED CEILING COMPATIBLE:
- YES
- TEMPERATURE (CCT):
- 2700K/3000K/3500K/4000K/5000K
- TRIM COLOR:
- WHITE
- WEIGHT LB.:
- 1.83
- CEILING:
- YES
- QUANTITY AVAILABLE AT MANUFACTURER:
- UNKNOWN
- LOCAL_ON_DISPLAY:
- 0
- ON DISPLAY IN SHOWROOM:
- No
- LOCAL_COUNT_ON_DISPLAY:
- 0
- LOCAL_SALE:
- 0
- LOCAL_COUNT_SALE:
- 0
- LOCAL_IN_STOCK:
- 0
- IN STOCK IN SHOWROOM:
- No
- LOCAL_COUNT-IN_STOCK:
- 0
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- HEIGHT:
- 4.49
- HEIGHT RANGE:
- 0-15''
- WIDTH:
- 11.78
- CEC:
- T20 EXEMPT - FIXTURES NOT REGULATED
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- CEC WEB TEXT:
- LAWFUL FOR SALE
- ES UNIQUE ID:
- 3893923
- BULB SHAPE:
- INTEGRATED LED
- ANSI BASE:
- INTEGRATED
- FLR EQUIV:
- 2 X 26W CFL
- NSF APPROVED:
- NO
- IMAGE INFO:
- ''S11853.JPG:DEFAULT''
- INSTALLATION NOTES:
- J-BOX REQUIRED BUT NOT INCLUDED
- More Info {1}:
- 10 INCH CAN SIZE
- More Info {2}:
- 5 YEAR LIMITED WARRANTY
- More Info {3}:
- CCT SELECTABLE
- More Info {4}:
- DIAMETER: 11.78 INCHES HEIGHT: 4.49 INCHES''
- More Info {5}:
- DIMMABLE
- More Info {6}:
- RATED FOR 50000 HOURS
- More Info {7}:
- SUPERIOR 80 CRI LIGHT QUALITY
- More Info {8}:
- WET LOCATION RATED FOR BOTH INDOOR AND OUTDOOR USE
- INCANDESCENT EQUIVALENT:
- 125W
- WATTAGE SELECTABLE:
- NO
- AIR TIGHT:
- NO
- DIMMABLE DOWN TO:
- 100 TO 20 PERCENT
- EFFICACY:
- 116.67 LPW
- JA8 COMPLIANT:
- NO
- SHORT DESCRIPTION:
- 30WLED/CDL/10/CCT/120-277
- TITLE 20 COMPLIANT:
- EXEMPT
- TITLE 24 COMPLIANT:
- NO
- POWER FACTOR:
- 0.99
- ORDER IN MULTIPLES OF:
- 1
- SPECIFICATION NOTES:
- DEFAULT CCT SETTING IS 2700K.
- CATEGORY:
- RECESSED
- SUB CATEGORY:
- COMMERCIAL
- COUNTRY OF ORIGIN:
- CHINA
- ES CATEGORY:
- DOWNLIGHT RECESSED
- ROMANCE COPY:
- SATCO'S 30 WATT COMMERCIAL LED DOWNLIGHT OFFERS VERSATILITY AND FUNCTIONALITY IN COMMERCIAL APPLICATIONS. THE ROUND FIXTURE IN WHITE FINISH IS A PRACTICAL SOLUTION FOR ENERGY EFFICIENT LIGHTING. THIS DIMMABLE RECESSED DOWNLIGHT IS CCT SEL...
- 4/30/2025 14:
- 20
- STANDARD STYLE:
- OTHER RECESSED LTG.
- 5/6/2025 21:
- 29
- HAS CAMERA:
- NO
- HAS EMERGENCY BATTERY:
- NO
- BAA COMPLIANT:
- NO
- BEAM ANGLE SELECTABLE:
- NO
- CA PROP-65 STATEMENT:
- WARNING: THIS PRODUCT CAN EXPOSE YOU TO CHEMICALS INCLUDING LEAD WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER OR BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. FOR MORE INFORMATION GO TO HTTP://WWW.P65WARNINGS.CA.GOV.
- DEFAULT CCT:
- 2700K
- DIMMING TYPE:
- 0-10V DIMMING
- FIELD SELECTABLE:
- NO
- MAX DRYWALL THICKNESS:
- 0.38 TO 1.25 IN.
- VOLTAGE TEXT:
- AC ONLY RANGE VOLTAGE
- WALL:
- YES
