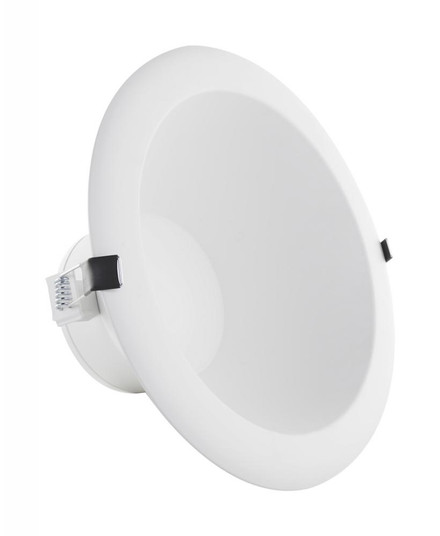

32 Watt Commercial LED Downlight; 8 in.; Color Adjustable; Lumen Adjustable; 120-277 volt {ADDITIONAL FINISH INFORMATION: ''White''}
- ADDITIONAL INFO:
- Adjustable color temperature (CCT) 2700K 3000K 3500K 4000K 5000K.Three lumen ranges 1600L/2000L/2450L
- BULB DIMMABLE:
- Yes - Dimmable
- BULB HOURS:
- 50000
- BULB TYPE:
- LED
- DIAMETER:
- 9.06
- HARMONIZED CODES:
- 9405.42.6000
- LUMENS:
- 1600L/2000L/2450L
- SHIP CARTON HEIGHT:
- 7.48''
- SHIP CARTON LENGTH:
- 9.84
- SHIP CARTON WIDTH:
- 9.84''
- WARRANTY:
- 5 Year Limited - LED Commercial Downlights
- BEAM SPREAD:
- 80
- CA PROP-65:
- Lead
- CARTON CUBIC FEET:
- 0.4191
- CARTONS PER UNIT:
- 1
- CEC:
- T20 Exempt - Fixtures Not Regulated
- CEILING:
- YES
- CRI:
- 80
- INCANDESCENT EQUIVALENT:
- 100W/120W/150W
- OPERATING TEMPRATURE:
- -20C (-4F) TO +40C (+104F)
- PACK TYPE:
- Box
- REPLACEABLE LIGHT SOURCE:
- No
- SAFETY LISTING:
- CETLUS - LISTED
- HEIGHT:
- 5.05
- WIDTH:
- 9.06
- FINISH:
- WHITE
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- Standard Style:
- Traditional
- BULB KELVIN:
- Warm to Cool White
- DIMMABLE:
- Yes-Dimmable
- More Info {1}:
- ENERGY STAR LISTED
- CEC TERSE:
- Lawful for sale in California
- DIMMABLE FUNCTION:
- 0-10V DIMMING ONLY
- HEIGHT RANGE:
- 0-15''
- WIDTH RANGE:
- 0-15''
- CEILING APERTURE:
- 8.30 in. Cutout
- AVAILABLE FOR PURCHASE:
- NO
- BULB SHAPE:
- INTEGRATED LED
- REQUIRED (NOT INCLUDED):
- 1 INTEGRATED BULBS
- QUANTITY AVAILABLE AT MANUFACTURER:
- 1523
- ANSI BASE:
- X
- CCT SELECTABLE:
- YES
- CONNECTION:
- DIRECT WIRED
- DIMMING TYPE:
- 0-10V
- ES UNIQUE ID:
- ESID-2353224
- FCC COMPLIANT:
- YES
- FEATURE 1:
- LAWFUL FOR SALE IN CALIFORNIA
- FEATURE 2:
- SELECTABLE WATTAGE LUMENS AND CCT
- FEATURE 3:
- REMOTE DRIVER AND J-BOX WITH KNOCKOUTS
- FEATURE 4:
- QUICK CONNECT FEATURE FOR EASY INSTALLATION
- FEATURE 5:
- ENERGY STAR LISTED
- FEATURE 6:
- FIVE YEAR LIMITED WARRANTY
- FEATURE 7:
- FIVE YEAR LIMITED WARRANTY
- FINISH FAMILY:
- WHITE
- FIXTURE SHAPE:
- ROUND
- HAS DRIVER:
- YES
- IC RATED:
- YES
- INDOOR OUTDOOR:
- INDOOR
- INSTALLATION NOTES:
- CAN BE INSTALLED WITH OR WITHOUT THE ROUGH-IN PLATE (80-959)
- LENS FINISH:
- CLEAR
- LENS MATERIAL:
- POLYCARBONATE (PC)
- MATERIAL:
- ALUMINUM
- MOUNTING PROCEDURE:
- CEILING
- NUMBER OF LAMPS:
- 1
- OPERATING FREQUENCY:
- 60HZ
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- SDS CLASS:
- LED_LAMP
- SDS SHEET LINK:
- SDS/LED_LAMP.PDF
- TEMPERATURE (CCT):
- 2700K/3000K/3500K/4000K/5000K
- TRIM COLOR:
- WHITE
- WATTAGE SELECTABLE:
- YES
- WEIGHT LB.:
- 1.9
- LAMPS:
- YES
- LONG DESCRIPTION:
- SATCO'S S11812 WATTAGE SELECTABLE 8 INCH LED COMMERCIAL DOWNLIGHT IS THE PERFECT SOLUTION FOR OFFICES STORES HOSPITALS AND HOTELS. DIMMABLE AND CCT SELECTABLE THIS DIRECT WIRED DOWNLIGHT INSTALLS EASILY EVEN IN THE MOST CHALLENGING RE...
- STYLE:
- UTILITY
- AMPS:
- 0.158-0.069/0.217-0.094/0.267-0.116A
- CAN SIZE:
- 8 IN.
- FLR EQUIV:
- 1 X 32W CFL
- More Info {2}:
- FIVE YEAR LIMITED WARRANTY
- More Info {3}:
- LAWFUL FOR SALE IN CALIFORNIA
- More Info {4}:
- QUICK CONNECT FEATURE FOR EASY INSTALLATION
- More Info {5}:
- REMOTE DRIVER AND J-BOX WITH KNOCKOUTS
- More Info {6}:
- SELECTABLE WATTAGE LUMENS AND CCT
- CEC WEB TEXT:
- LAWFUL FOR SALE
- AIR TIGHT:
- NO
- BAA COMPLIANT:
- NO
- DIMMABLE DOWN TO:
- 100 TO 20 PERCENT
- EFFICACY:
- 84.21/76.92/76.56 LPW
- JA8 COMPLIANT:
- NO
- ROMANCE COPY:
- THIS A COMMERCIAL LED DOWNLIGHT WITH COLOR QUICK TECHNOLOGY: SELECT AMONG A RANGE OF WATTS LUMENS AND COLOR TEMPERATURES. AN OUTBOARD LED DRIVER/JUNCTION BOX ALLOWS FOR EASY PLACEMENT EVEN IN THE MOST CHALLENGING RENOVATIONS. THE DOWNLI...
- SHORT DESCRIPTION:
- 32WLED/CDL/8/ADJ-CCT/80D
- TITLE 20 COMPLIANT:
- NO
- TITLE 24 COMPLIANT:
- NO
