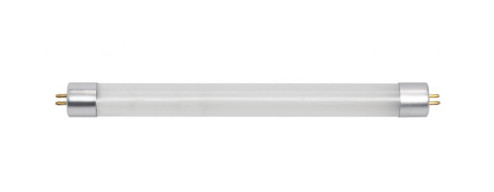

3 Watt T5 LED; Miniature bi-pin base; 4000K; 50000 Average rated hours; 270 Lumens; 120-277 Volt; Type B; Ballast Bypass; Double Ended Wiring {ADDITIONAL FINISH INFORMATION: ''White''}
- BULB DIMMABLE:
- Non-Dimmable
- BULB HOURS:
- 50000
- BULB KELVIN:
- 4000K
- BULB SHAPE:
- T5
- DIAMETER:
- 0.83
- HARMONIZED CODES:
- 8539.52.0051
- LENGTH:
- 8.91
- LUMENS:
- 270L
- SHIP CARTON HEIGHT:
- 0.9''
- SHIP CARTON LENGTH:
- 9
- SHIP CARTON WIDTH:
- 0.9''
- SHIP WEIGHT:
- 0.06
- VOLTS:
- 120V-277V
- WARRANTY:
- 5 Year Limited - T5 LED Bulbs - Ballast Bypass
- WEIGHT:
- 0.06
- BEAM SPREAD:
- 240
- BULB ANSI BASE:
- G5
- BULB BASE:
- Miniature Bi Pin
- BULB FINISH:
- Frost
- CARTON CUBIC FEET:
- 0.0042
- CARTONS PER UNIT:
- 1
- CEC:
- Exempt - Base Not Regulated
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- CEC WEB TEXT:
- LAWFUL FOR SALE
- COLOR TEMPRATURE:
- Cool White
- CRI:
- 82
- ENCLOSURE RATING:
- ENCLOSED RATED LAMP
- FLUORESCENT EQUIVALENT:
- 6W
- LAMP FILAMENT:
- LED
- LENS:
- YES
- LOCATION RATING:
- Damp
- NOMINAL LENGTH:
- 9
- NSF APPROVED:
- YES
- OPERATING TEMP:
- -25C (-13F) TO +45C (+113F)
- PACK TYPE:
- Box
- SHATTER PROOF TEXT:
- PET Coated
- WATTS:
- 3W
- WIDTH:
- 0.83
- WIDTH RANGE:
- 0-15''
- LAMPS:
- YES
- FINISH:
- WHITE
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- Standard Style:
- Traditional
- DIMMABLE:
- Non-Dimmable
- AVAILABLE FOR PURCHASE:
- NO
- QUANTITY AVAILABLE AT MANUFACTURER:
- 747
- ADDITIONAL INFO:
- REPLACES F6T5/CW LAMPS
- BALLAST BYPASS DIRECT:
- BALLAST BYPASS
- BALLASTING REQUIREMENTS:
- NO BALLAST OR EXTERNAL DRIVER REQUIRED
- ENCLOSURE RATING1:
- YES
- FCC COMPLIANT:
- YES
- FEATURE 1:
- MOL: 8.91 INCHES MOL: 0.83 INCHES
- FEATURE 2:
- SUPERIOR 82 CRI LIGHT QUALITY 270 LUMENS WITH A 240 DEGREE BEAM SPREAD
- FEATURE 3:
- RATED FOR ENCLOSED FIXTURES
- FEATURE 4:
- DAMP LOCATION RATED
- FEATURE 5:
- 6 WATT FLUORESCENT EQUIVALENT
- FEATURE 6:
- FROST FINISHED LINEAR BULB
- FEATURE 7:
- LED ENERGY EFFICIENT FIXTURE
- FEATURE 8:
- 5 YEAR LIMITED WARRANTY
- INSTALLATION NOTES:
- DIRECT WIRE 120-277V LINE VOLTAGE DOUBLE ENDED WIRING
- LAMP BALLAST TYPE A/B/C:
- TYPE B
- LENS FINISH:
- FROST
- LONG DESCRIPTION:
- SATCO'S S11902 3 WATT T5 LED TYPE B MINIATURE BI-PIN REPLACES TRADITIONAL LINEAR LAMPS WITH A NO BALLAST NO EXTERNAL DRIVER OPTION FOR LASTING RETROFIT CONVERSION. WITH DOUBLE ENDED WIRING FOR CONVENIENCE THE FROSTED BULB HAS A TEMPERATU...
- MATERIAL:
- GLASS
- OPERATING FREQUENCY:
- 50/60HZ
- POWER FACTOR:
- 0.9
- QUANTITY IN PACK:
- 1
- RATED FOR VAPOR TIGHT FIXTURE:
- NO
- ROHS COMPLIANT:
- YES
- SDS CLASS:
- LED_LAMP
- SDS SHEET LINK:
- #REF!
- TECHNOLOGY:
- LED
- CCT SELECTABLE:
- NO
- BURNING POSITION:
- UNIVERSAL
- More Info {1}:
- REPLACES F6T5/CW LAMPS
- More Info {2}:
- 6 WATT FLUORESCENT EQUIVALENT
- More Info {3}:
- DAMP LOCATION RATED
- More Info {4}:
- LED ENERGY EFFICIENT FIXTURE
- More Info {5}:
- MOL: 8.91 INCHES MOL: 0.83 INCHES
- More Info {6}:
- RATED FOR ENCLOSED FIXTURES
- More Info {7}:
- SUPERIOR 82 CRI LIGHT QUALITY 270 LUMENS WITH A 240 DEGREE BEAM SPREAD
- DLC APPROVED:
- NO
- WATTAGE SELECTABLE:
- NO
- BAA COMPLIANT:
- NO
- INCANDESCENT EQUIVALENT:
- 25W
- 3-WAY:
- #REF!
- MAX. DIAMETER:
- #REF!
- EFFICACY:
- 90.00 LPW
- ENCLOSED FIXTURE USE:
- YES
- LAMP END TYPE:
- DOUBLE ENDED
- ROMANCE COPY:
- SATCO'S 3 WATT T5 LED TYPE B MINIATURE BI-PIN REPLACES TRADITIONAL LINEAR LAMPS WITH A NO BALLAST NO EXTERNAL DRIVER OPTION FOR LASTING RETROFIT CONVERSION. WITH DOUBLE ENDED WIRING FOR CONVENIENCE THE FROSTED BULB HAS A TEMPERATURE OF 4...
- SHORT DESCRIPTION:
- 3W/LED/T5/840/BP
- TITLE 20 COMPLIANT:
- NO
- TOTAL HARMONIC DISTORTION:
- 20%
- CA PROP-65:
- LEAD
- IMAGE INFO:
- ''''
- EA LENGTH:
- 9
- SHAP CARTON WIDTH:
- 0.9''
- FLOURESCENT EQUIVALENT:
- 6W
