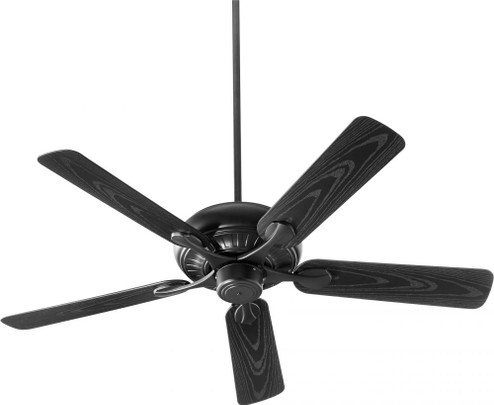

52'' PINNACLE PATIO - TXB
- OPTION:
- Wet Rated
- STYLE:
- Transitional
- FAMILY:
- Pinnacle Patio
- AMPERAGE:
- .72/.47/.24
- BLADE FINISH:
- Matte Black
- BLADE PITCH:
- 16
- BLADE SPAN:
- 52
- BLADES INCLUDED:
- 5
- DOWN ROD INCLUDED:
- 4
- ELECTRICITY USED:
- 83/37/9
- HEIGHT:
- 10.00
- MOTOR RPM:
- 173/110/54
- MOTOR SIZE:
- 188x22
- SHIP CARTON HEIGHT:
- 25.25''
- SHIP CARTON LENGTH:
- 14.5
- SHIP CARTON WIDTH:
- 10''
- WARRANTY:
- Limited Lifetime
- WEIGHT:
- 26
- CARB COMPLIANT:
- No
- CARB REQUIRED:
- No
- CARTONS PER UNIT:
- 1
- CEILING:
- YES
- DARK SKY:
- No
- ENERGY EFFICIENT:
- No
- ENERGY STAR:
- No
- FAN HOUSING WIDTH:
- 12.99''
- FDA REQUIRED:
- No
- FREIGHT ONLY:
- No
- FWS REQUIRED:
- No
- LACEY REQUIRED:
- No
- MOTOR LEAD WIRE:
- 80
- MOTOR POLES:
- 16
- MOTOR PULL SWITCH TYPE:
- Hi/Med/Low/Off
- OVERALL FAN HEIGHT:
- 12.99''
- PHASE OUT:
- No
- SAFETY RATING:
- UL
- WET RATED:
- Yes
- WIDTH:
- 52.00
- FINISH:
- BLACK
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- Standard Style:
- Transitional
- DOWN ROD INCLUDED1:
- 6
- HEIGHT RANGE:
- 0-15''
- WIDTH RANGE:
- 50-55''
- HEIGHT TO CENTER OF OUTLET:
- 11.22''
- CEILING TO LOWER EDGE OF BLADE:
- 11.22
- AVAILABLE FOR PURCHASE:
- YES
- QUANTITY AVAILABLE AT MANUFACTURER:
- UNKNOWN
- LENGTH:
- 25
- SHIP WEIGHT:
- 26.00
- ENERGY SAVING:
- NO
- ES LAMP INCLUDED:
- NO
- NOT UL APPROVED:
- NO
- LAMPS:
- YES
- ARM PITCH:
- 16
- BLADE SIDE A COLOR:
- MATTE BLACK
- BLADE SIDE B COLOR:
- MATTE BLACK
- DOWNROD LENGTH 1:
- 4
- DOWNROD LENGTH 2:
- 6
- FACILITY:
- QRW
- MASTER PACK:
- 1
- NUMBER OF BLADES:
- 5
- SERIES:
- PINNACLE PATIO
- SWEEP:
- 52
- BULB INCLUDED:
- NO
- LOCATION RATING:
- WET RATED
