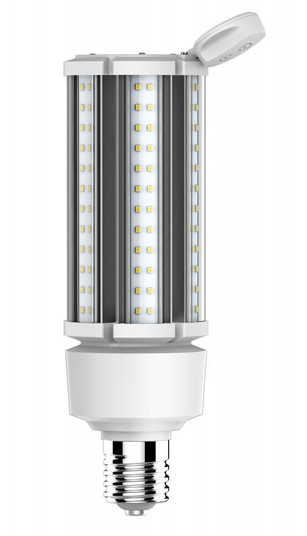

63 Watt LED HID Replacement; 3000K; Mogul base; Type B Ballast Bypass;100-277 Volt {ADDITIONAL FINISH INFORMATION: ''No Finish''}
- BULB DIMMABLE:
- Non-Dimmable
- BULB HOURS:
- 50000
- BULB KELVIN:
- 3000K
- BULB SHAPE:
- Corncob
- DIAMETER:
- 3.38
- HARMONIZED CODES:
- 8539.52.0091
- LENGTH:
- 10.88
- LUMENS:
- 7875L
- SHIP CARTON HEIGHT:
- 12.24''
- SHIP CARTON LENGTH:
- 3.66
- SHIP CARTON WIDTH:
- 3.66''
- SHIP WEIGHT:
- 2.07
- VOLTS:
- 100V-277V
- WARRANTY:
- 5 Year Limited - Hi-Pro
- BEAM SPREAD:
- 300
- BULB ANSI BASE:
- E39
- BULB BASE:
- Mogul
- BULB FINISH:
- Clear
- BURNING POSITION:
- Universal
- CARTON CUBIC FEET:
- 0.0949
- CARTONS PER UNIT:
- 1
- CEC:
- EXEMPT - BASE NOT REGULATED
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- CEC WEB TEXT:
- LAWFUL FOR SALE
- COLOR TEMPRATURE:
- Warm White
- CRI:
- 80+
- DLC APPROVED:
- NO
- DLC ID:
- PLRM2W7XN10E
- ENCLOSURE RATING:
- ENCLOSED RATED LAMP
- HOUSING COLOR:
- White
- IP RATING:
- IP42
- LAMP FILAMENT:
- LED
- LENS:
- YES
- LOCATION RATING:
- Damp
- OPERATING TEMP:
- -30C (-22F) TO +60C (+140F)
- PHOTOCELL:
- Has Motion Sensor
- SURGE PROTECTION:
- Built-in surge protection
- WATTS:
- 63W
- WIDTH:
- 3.38
- WIDTH RANGE:
- 0-15''
- LAMPS:
- YES
- FINISH:
- WHITE
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- STANDARD STYLE:
- TRADITIONAL
- DIMMABLE:
- Non-Dimmable
- AVAILABLE FOR PURCHASE:
- NO
- QUANTITY AVAILABLE AT MANUFACTURER:
- UNKNOWN
- ADDITIONAL INFO:
- BUILT-IN MOTION SENSOR - DETECTION AREA 32-FEET 30 SECOND TURN OFF
- BALLASTING REQUIREMENTS:
- BALLAST BYPASS- DIRECT WIRE ONLY 100V-277V
- ENCLOSURE RATING1:
- YES
- FCC COMPLIANT:
- YES
- LAMP BALLAST TYPE A/B/C:
- TYPE B
- LENS FINISH:
- CLEAR
- MATERIAL:
- ALUMINUM
- MINIMUM COMPARTMENT SIZE:
- LENGTH: 11 IN. WIDTH: 8 IN. DEPTH: 8 IN.''
- OPERATING FREQUENCY:
- 50/60HZ
- PACK TYPE:
- BOX
- POWER FACTOR:
- >0.9
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- SDS CLASS:
- LED_LAMP
- SDS SHEET LINK:
- #REF!
- TECHNOLOGY:
- LED
- CCT SELECTABLE:
- NO
- HID EQUIVALENT:
- 250W
- ORDER IN MULTIPLES OF:
- 1
- More Info {1}:
- BUILT-IN MOTION SENSOR - DETECTION AREA 32-FEET 30 SECOND TURN OFF
- WATTAGE SELECTABLE:
- NO
- BAA COMPLIANT:
- NO
- INCANDESCENT EQUIVALENT:
- 250W
- 3-WAY:
- #REF!
- MAX. DIAMETER:
- #REF!
- EFFICACY:
- 125.00 LPW
- ENCLOSED FIXTURE USE:
- YES
- SENSOR DETECTION RANGE:
- 10M (32.8')
- SENSOR FIELD OF VIEW:
- 6M (19.69')
- SENSOR MOUNTING HEIGHT:
- 2-10M (2.56' - 32.8')''
- SENSOR OCCUPANCY OR VACANCY:
- OCCUPANCY
- SENSOR OPERATING TEMPERATURE:
- -40C (-40F) TO +45C (+113F)
- SENSOR OPERATION:
- 3-WAY
- SENSOR SWITCH TYPE:
- 0-10V DIMMING
- SENSOR TIME DELAY:
- 3S 30S
- SHORT DESCRIPTION:
- 63W/LED/HID/3K/MS/100-277V
- STYLE:
- CONTEMPORARY
- TITLE 20 COMPLIANT:
- NO
- EA LENGTH:
- 3.66
- SHAP CARTON WIDTH:
- 3.66''
- BALLAST BYPASS DIRECT:
- BALLAST BYPASS
- INSTALLATION NOTES:
- NOT FOR USE IN VAPOR TIGHT FIXTURES.
- TITLE 24 COMPLIANT:
- NO
- WEIGHT:
- 0.82
- JA8 COMPLIANT:
- NO
