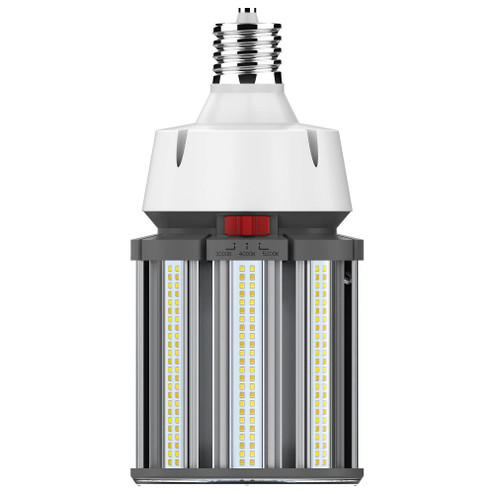

100 Watt LED HID Replacement; CCT Selectable; Mogul Extended Base; 277-480 Volt; ColorQuick Technology
- AVAILABLE FOR PURCHASE:
- NO
- QUANTITY AVAILABLE AT MANUFACTURER:
- 896
- LOCAL_ON_DISPLAY:
- 0
- ON DISPLAY IN SHOWROOM:
- No
- LOCAL_COUNT_ON_DISPLAY:
- 0
- LOCAL_SALE:
- 0
- LOCAL_COUNT_SALE:
- 0
- LOCAL_IN_STOCK:
- 0
- IN STOCK IN SHOWROOM:
- No
- LOCAL_COUNT-IN_STOCK:
- 0
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- WIDTH:
- 5.12
- WIDTH RANGE:
- 0-15''
- BULB HOURS:
- 50000
- BULB KELVIN:
- 3000K/4000K/5000K
- BULB SHAPE:
- CORNCOB
- DIAMETER:
- 5.12
- DIMMABLE:
- YES-DIMMABLE
- HARMONIZED CODES:
- 8539.52.0091
- LENGTH:
- 10.46
- LUMENS:
- 13000L/14000L/13500L
- SHIP CARTON HEIGHT:
- 5.51''
- SHIP CARTON LENGTH:
- 12.2
- SHIP CARTON WIDTH:
- 5.51''
- SHIP WEIGHT:
- 3.57
- VOLTS:
- 277V-480V
- WARRANTY:
- 5 YEAR LIMITED - HI-PRO
- WEIGHT:
- 3.19
- BALLAST BYPASS DIRECT:
- BALLAST BYPASS
- BALLASTING REQUIREMENTS:
- BALLAST BYPASS
- BEAM SPREAD:
- 300
- BULB ANSI BASE:
- EX39
- BULB BASE:
- MOGUL EXTENDED
- BULB FINISH:
- WHITE
- BURNING POSITION:
- BASE UP OR DOWN
- CARTON CUBIC FEET:
- 0.2143
- CARTONS PER UNIT:
- 1
- CCT SELECTABLE:
- YES
- CEC:
- EXEMPT - BASE NOT REGULATED
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- CEC WEB TEXT:
- LAWFUL FOR SALE
- COLOR TEMPRATURE:
- WARM TO COOL WHITE
- CRI:
- 80
- DIMMABLE FUNCTION:
- ONLY DIMMABLE VIA WIFI MODULE 80-954 (AVAILABLE FOR PURCHASE) AND VIA THE STARFISH APP
- DLC APPROVED:
- YES
- DLC CLASSIFICATION:
- STANDARD
- DLC ID:
- S-FUS4GO
- DLC PRIMARY USE:
- REPLACEMENT LAMPS FOR OUTDOOR POLE/ARM-MOUNTED DECORATIVE LUMINAIRES (TYPE B)
- ENCLOSURE RATING:
- ENCLOSED RATED LAMP
- ENCLOSURE RATING1:
- YES
- FCC COMPLIANT:
- YES
- FEATURE 1:
- MOL: 10.46 INCHES MOD: 5.12 INCHES
- FEATURE 2:
- CORNCOB SHAPE
- FEATURE 3:
- WHITE FINISH
- FEATURE 4:
- MOGUL EXTENDED BASE
- FEATURE 5:
- 300 DEGREE BEAM SPREAD
- FEATURE 6:
- RATED FOR 50000 HOURS
- FEATURE 7:
- CCT SELECTABLE
- FEATURE 8:
- 5 YEAR LIMITED WARRANTY
- FEATURE 9:
- DAMP RATED FOR INDOOR AND OUTDOOR USE
- HID EQUIVALENT:
- 400W
- HOUSING COLOR:
- DARK GRAY
- INDOOR OUTDOOR:
- INDOOR OUTDOOR
- IOT ENABLED:
- NO
- IP RATING:
- IP64
- LAMP BALLAST TYPE A/B/C:
- TYPE B
- LAMP FILAMENT:
- LED
- LENS:
- YES
- LENS MATERIAL:
- PLASTIC
- LOCATION RATING:
- DAMP
- LONG DESCRIPTION:
- SATCO
- MATERIAL:
- ALUMINUM / POLYCARBONATE (PC)
- MINIMUM COMPARTMENT SIZE:
- LENGTH: 9.84 IN. WIDTH: 9.84 IN.''
- NSF APPROVED:
- NO
- OPERATING FREQUENCY:
- 50/60HZ
- OPERATING TEMP:
- -30C (-22F) TO +45C (+113F)
- PACK TYPE:
- BOX
- PHOTOCELL:
- OPTIONAL
- POWER FACTOR:
- 0.9
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- SDS CLASS:
- LED_LAMP
- TECHNOLOGY:
- LED
- WATTAGE SELECTABLE:
- NO
- WATTS:
- 100W
- LAMPS:
- YES
- IMAGE INFO:
- ''''
- SURGE PROTECTION:
- BUILT-IN SURGE PROTECTION - 4KV
- DIMMING TYPE:
- SMART-STARFISH APP THROUGH WIFI MODULE ONLY
- More Info {1}:
- 300 DEGREE BEAM SPREAD
- More Info {2}:
- 5 YEAR LIMITED WARRANTY
- More Info {3}:
- CCT SELECTABLE
- More Info {4}:
- CORNCOB SHAPE
- More Info {5}:
- DAMP RATED FOR INDOOR AND OUTDOOR USE
- More Info {6}:
- MOGUL EXTENDED BASE
- More Info {7}:
- MOL: 10.46 INCHES MOD: 5.12 INCHES
- More Info {8}:
- RATED FOR 50000 HOURS
- ORDER IN MULTIPLES OF:
- 1
- BAA COMPLIANT:
- NO
- INCANDESCENT EQUIVALENT:
- 400W
- 3-WAY:
- #REF!
- MAX. DIAMETER:
- #REF!
- SDS SHEET LINK:
- #REF!
- DIMMABLE DOWN TO:
- 100 TO 20 PERCENT
- EFFICACY:
- 130.00/140.00/135.00 LPW
- ENCLOSED FIXTURE USE:
- YES
- R9 VALUE:
- 15
- ROMANCE COPY:
- SATCO
- SHORT DESCRIPTION:
- 100W/LED/CCT/277-480V/EX39
- STYLE:
- UTILITY
- TITLE 20 COMPLIANT:
- NO
- TOTAL HARMONIC DISTORTION:
- 8.50%
- CA PROP-65:
- LEAD
- BULB DIMMABLE:
- YES-DIMMABLE
- EA LENGTH:
- 12.2
- SHAP CARTON WIDTH:
- 5.51''
