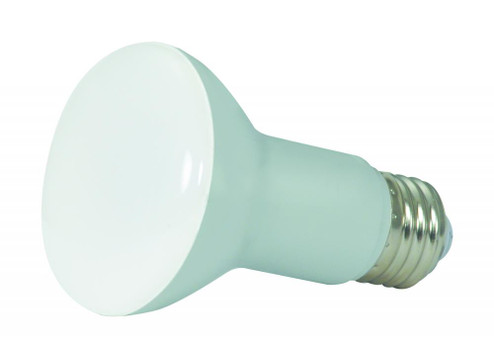

6 Watt; R20 LED; 3000K; Medium base; 120 Volt Satco's S28577 6-watt LED R20 lensed lamp offers warm white light and a 107 degree beam spread. This LED reflector is an energy efficient lighting solution for residential and commercial applications. Dimmable and long lasting, this frost finished bulb delivers 25,000 hours of exceptional illumination. {ADDITIONAL FINISH INFORMATION: ''White''}
- BULB DIMMABLE:
- YES-DIMMABLE
- BULB HOURS:
- 25000
- BULB KELVIN:
- 3000K
- BULB SHAPE:
- R20
- DIAMETER:
- 2.5
- HARMONIZED CODES:
- 8539.52.0030
- LENGTH:
- 3.94
- LUMENS:
- 525L
- SHIP CARTON HEIGHT:
- 4.25''
- SHIP CARTON LENGTH:
- 2.6
- SHIP CARTON WIDTH:
- 2.6''
- SHIP WEIGHT:
- 0.16
- VOLTS:
- 120V
- WARRANTY:
- 5-YEARS
- WEIGHT:
- 0.09
- BEAM SPREAD:
- 107
- BULB ANSI BASE:
- E26
- BULB BASE:
- Medium
- BULB FINISH:
- Frost
- CARTON CUBIC FEET:
- 0.0166
- CARTONS PER UNIT:
- 1
- CEC:
- CALIFORNIA T24 2016 - 2025 JA8 LISTED T20 LISTED
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- CEC WEB TEXT:
- CALIFORNIA T24 LISTED
- COLOR TEMPRATURE:
- WARM WHITE
- CRI:
- 90+
- ENCLOSURE RATING:
- NO
- HOUSING COLOR:
- GRAY
- INCANDESCENT EQUIVALENT:
- 45W
- LAMP FILAMENT:
- LED
- LENS:
- YES
- LOCATION RATING:
- Damp
- OPERATING TEMP:
- -25C (-13F) TO +45C (+113F)
- PACK TYPE:
- BOX
- WATTS:
- 6W
- WIDTH:
- 2.60
- WIDTH RANGE:
- 0-15''
- LAMPS:
- YES
- FINISH:
- WHITE
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- LOCAL_CLEARANCE:
- 0
- STANDARD STYLE:
- TRADITIONAL
- DIMMABLE:
- Yes-Dimmable
- CBCP:
- 180
- AVAILABLE FOR PURCHASE:
- NO
- DIMMABLE FUNCTION:
- DIMMING RANGE FROM 100 TO LESS THAN OR EQUAL TO 20 PERCENT DEPENDING ON DIMMER CONTROL
- QUANTITY AVAILABLE AT MANUFACTURER:
- 1972
- CANDLE POWER:
- 180
- DIMMING TYPE:
- FORWARD PHASE OR REVERSE PHASE OR PHASE SELECTABLE
- ENCLOSURE RATING1:
- OPEN RATED LAMP
- ES UNIQUE ID:
- ESID-2341256
- FCC COMPLIANT:
- YES
- FEATURE 1:
- WARM WHITE LIGHT
- FEATURE 2:
- LED FILAMENT
- FEATURE 3:
- DAMP RATED FOR INDOOR USE
- FEATURE 4:
- L:3.94 D:2.50
- FEATURE 5:
- R20 FROSTED FINISH
- INDOOR OUTDOOR:
- INDOOR
- LENS FINISH:
- FROST
- LONG DESCRIPTION:
- SATCO'S S28577 6-WATT LED R20 LENSED LAMP OFFERS WARM WHITE LIGHT AND A 107 DEGREE BEAM SPREAD. THIS LED REFLECTOR IS AN ENERGY EFFICIENT LIGHTING SOLUTION FOR RESIDENTIAL AND COMMERCIAL APPLICATIONS. DIMMABLE AND LONG LASTING THIS FROST ...
- MATERIAL:
- PLASTIC
- POWER FACTOR:
- 0.94
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- SDS CLASS:
- LED_LAMP
- SDS SHEET LINK:
- #REF!
- TECHNOLOGY:
- LED
- CCT SELECTABLE:
- NO
- BURNING POSITION:
- UNIVERSAL
- ORDER IN MULTIPLES OF:
- 1
- More Info {1}:
- DAMP RATED FOR INDOOR USE.
- More Info {2}:
- L:3.94 D:2.50
- More Info {3}:
- LED FILAMENT
- More Info {4}:
- WARM WHITE LIGHT
- DLC APPROVED:
- NO
- WATTAGE SELECTABLE:
- NO
- BAA COMPLIANT:
- NO
- 3-WAY:
- #REF!
- MAX. DIAMETER:
- #REF!
- DIMMABLE DOWN TO:
- 100 TO 10 PERCENT
- EFFICACY:
- 87.50 LPW
- ENCLOSED FIXTURE USE:
- NO
- JA8 COMPLIANT:
- YES
- R9 VALUE:
- 52
- SHORT DESCRIPTION:
- 6R20/LED/930/120V
- STYLE:
- CONTEMPORARY
- TITLE 20 COMPLIANT:
- YES
- TITLE 24 COMPLIANT:
- YES
- CA PROP-65:
- LEAD
- OPERATING FREQUENCY:
- 60HZ
- EA LENGTH:
- 2.6
- SHAP CARTON WIDTH:
- 2.6''
- DLC CLASSIFICATION:
- GENERAL SERVICE REFLECTORS
- LENS MATERIAL:
- LED
- SENSOR TYPE:
- NON FEDERALLY-REGULATED
- START TYPE:
- CONTEMPORARY
- CATEGORY:
- LED
- SUB-CATEGORY:
- BR & R LED
- COUNTRY OF ORIGIN:
- CHINA
- ROMANCE COPY:
- SATCO'S 6-WATT LED R20 LENSED LAMP OFFERS WARM WHITE LIGHT AND A 107 DEGREE BEAM SPREAD. THIS LED REFLECTOR IS AN ENERGY EFFICIENT LIGHTING SOLUTION FOR RESIDENTIAL AND COMMERCIAL APPLICATIONS. DIMMABLE AND LONG LASTING THIS FROST FINISHE...
- 5/1/2025 21:
- 26
- IMAGE INFO:
- ''S28577.JPG:DEFAULT''
- HAS CAMERA:
- NO
- HAS EMERGENCY BATTERY:
- NO
- IOT ENABLED:
- NO
- HEIGHT:
- 4.25
- HEIGHT RANGE:
- 0-15''
