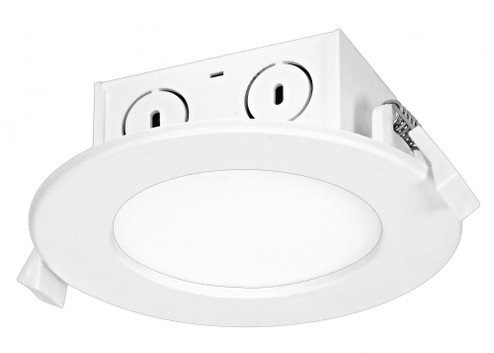

8.5 watt LED Direct Wire Downlight; Edge-lit; 4 inch; 2700K; 120 volt; Dimmable {ADDITIONAL FINISH INFORMATION: ''White''}
- REQUIRED (NOT INCLUDED):
- 1 CONNECTOR OR ADAPTER BULBS
- BULB DIMMABLE:
- Yes - Dimmable
- BULB HOURS:
- 40000
- BULB KELVIN:
- Warm White
- BULB SHAPE:
- Integrated LED
- BULB TYPE:
- LED
- DIAMETER:
- 5
- HARMONIZED CODES:
- 9405.11.8010
- LUMENS:
- 500L
- SHIP CARTON HEIGHT:
- 5.12''
- SHIP CARTON LENGTH:
- 2.56
- SHIP CARTON WIDTH:
- 6.3''
- VOLTAGE:
- 120V
- WARRANTY:
- 5 Year Limited - Fixtures
- BEAM SPREAD:
- 100
- CA PROP-65:
- Lead
- CARTON CUBIC FEET:
- 0.0478
- CARTONS PER UNIT:
- 1
- CEC:
- CALIFORNIA T24 2016 - 2022 JA8 LISTED
- CEC TERSE:
- Lawful for sale in California
- CEC WEB TEXT:
- California T24 Listed
- CEILING APERTURE:
- 4.3125 in. Cutout
- CRI:
- 90
- INCANDESCENT EQUIVALENT:
- 45W
- MAX DRYWALL THICKNESS:
- 3/4 in.
- OPERATING TEMPRATURE:
- -20C (-4F) TO +45C (+113F)
- PACK TYPE:
- Box
- REPLACEABLE LIGHT SOURCE:
- No
- REPLACES:
- S29055
- SAFETY LISTING:
- CETLUS - LISTED
- HEIGHT:
- 1.94
- HEIGHT RANGE:
- 0-15''
- WIDTH:
- 5.00
- WIDTH RANGE:
- 0-15''
- CEILING:
- YES
- WALL:
- YES
- FINISH:
- WHITE
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- Standard Style:
- Traditional
- DIMMABLE:
- Yes-Dimmable
- DIMMABLE TYPE:
- Triac
- AVAILABLE FOR PURCHASE:
- NO
- DIMMABLE FUNCTION:
- DIMMING RANGE FROM 100 TO LESS THAN OR EQUAL TO 20 PERCENT DEPENDING ON DIMMER CONTROL
- QUANTITY AVAILABLE AT MANUFACTURER:
- 3240
- ANSI BASE:
- INTEGRATED
- CLEARANCE HEIGHT:
- 2.36''
- CONNECTION:
- DIRECT WIRED
- DIMMING TYPE:
- FORWARD PHASE OR REVERSE PHASE OR PHASE SELECTABLE OR TRIAC
- ES UNIQUE ID:
- ESID-2382153
- FCC COMPLIANT:
- YES
- FEATURE 1:
- INTEGRATED J-BOX FOR DIRECT WIRE INSTALLATION
- FEATURE 2:
- EDGE-LIT TECHNOLOGY
- FEATURE 3:
- DAMP RATED FOR INDOOR USE
- FEATURE 4:
- H:1.94 D:5.00
- FEATURE 5:
- H:1.94 D:5.00
- FINISH FAMILY:
- WHITE
- FIXTURE SHAPE:
- ROUND
- IC RATED:
- YES
- INDOOR OUTDOOR:
- INDOOR
- LENS FINISH:
- FROST
- LENS MATERIAL:
- PLASTIC (PS)
- LONG DESCRIPTION:
- SATCO
- MATERIAL:
- THERMAL CONDUCTIVE PLASTICS
- MOUNTING PROCEDURE:
- CEILING
- NUMBER OF LAMPS:
- 1
- OPERATING FREQUENCY:
- 60HZ
- POWER FACTOR:
- 0.93
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- TEMPERATURE (CCT):
- 2700K
- TRIM COLOR:
- WHITE
- WEIGHT LB.:
- 0.4
- LAMPS:
- YES
- STYLE:
- UTILITY
- AMPS:
- 0.071A
- CCT SELECTABLE:
- NO
- More Info {1}:
- DAMP RATED FOR INDOOR USE
- More Info {2}:
- EDGE-LIT TECHNOLOGY
- More Info {3}:
- ENERGY STAR CERTIFIED
- More Info {4}:
- H:1.94 D:5.00
- More Info {5}:
- INTEGRATED J-BOX FOR DIRECT WIRE INSTALLATION
- SDS CLASS:
- LED_LAMP
- WATTAGE SELECTABLE:
- NO
- AIR TIGHT:
- YES
- BAA COMPLIANT:
- NO
- DIMMABLE DOWN TO:
- 100 TO 10 PERCENT
- EFFICACY:
- 58.82 LPW
- JA8 COMPLIANT:
- YES
- R9 VALUE:
- 59
- ROMANCE COPY:
- SATCO
- SHORT DESCRIPTION:
- 8.5WLED/DW/EL/4/27K/120V
- TITLE 20 COMPLIANT:
- NO
- TITLE 24 COMPLIANT:
- YES
