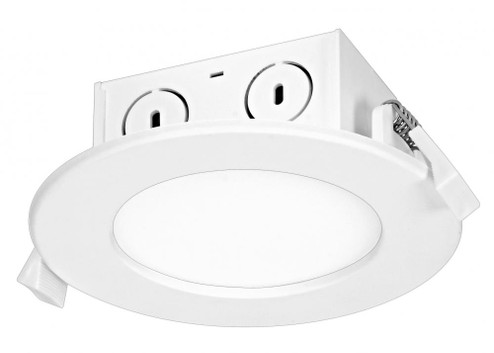

8.5 watt LED Direct Wire Downlight; Edge-lit; 4 inch; 3000K; 120 volt; Dimmable {ADDITIONAL FINISH INFORMATION: ''White''}
- REQUIRED (NOT INCLUDED):
- 1 INTEGRATED BULBS
- BULB DIMMABLE:
- Yes - Dimmable
- BULB HOURS:
- 40000
- BULB KELVIN:
- Warm White
- BULB SHAPE:
- Integrated LED
- BULB TYPE:
- LED
- DIAMETER:
- 5
- HARMONIZED CODES:
- 9405.11.8010
- LUMENS:
- 500L
- SHIP CARTON HEIGHT:
- 5.12''
- SHIP CARTON LENGTH:
- 2.56
- SHIP CARTON WIDTH:
- 6.3''
- VOLTAGE:
- 120V
- WARRANTY:
- 5-YEARS
- BEAM SPREAD:
- 100
- CA PROP-65:
- Lead
- CARTON CUBIC FEET:
- 0.0478
- CARTONS PER UNIT:
- 1
- CEC:
- CALIFORNIA T24 2016 - 2025 JA8 LISTED
- CEILING:
- YES
- CRI:
- 90+
- INCANDESCENT EQUIVALENT:
- 45W
- MAX DRYWALL THICKNESS:
- 3/4 IN.
- OPERATING TEMPRATURE:
- -4F TO +113F (-20C TO +45C)
- PACK TYPE:
- Box
- REPLACEABLE LIGHT SOURCE:
- No
- REPLACES:
- S29056
- SAFETY LISTING:
- CETLUS - LISTED
- HEIGHT:
- 1.94
- WIDTH:
- 5.00
- WALL:
- YES
- FINISH:
- RECESSED LTG.
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- STANDARD STYLE:
- TRADITIONAL
- DIMMABLE:
- Yes-Dimmable
- CEC TERSE:
- Lawful for sale in California
- CEC WEB TEXT:
- California T24 Listed
- HEIGHT RANGE:
- 0-15''
- WIDTH RANGE:
- 0-15''
- CEILING APERTURE:
- 4.3125 in. Cutout
- AVAILABLE FOR PURCHASE:
- NO
- DIMMABLE FUNCTION:
- FORWARD (TRIAC) OR REVERSE PHASE 120V ONLY
- QUANTITY AVAILABLE AT MANUFACTURER:
- 879
- ANSI BASE:
- INTEGRATED
- CLEARANCE HEIGHT:
- 2.36''
- CONNECTION:
- DIRECT WIRED
- DIMMING TYPE:
- PHASE CUT (TRIAC) 120V ONLY
- ES UNIQUE ID:
- ESID-2382153
- FCC COMPLIANT:
- YES
- FEATURE 1:
- INTEGRATED J-BOX FOR DIRECT WIRE INSTALLATION
- FEATURE 2:
- EDGE-LIT TECHNOLOGY
- FEATURE 3:
- DAMP RATED FOR INDOOR USE
- FEATURE 4:
- H:1.94 D:5.00
- FEATURE 5:
- H:1.94 D:5.00
- FINISH FAMILY:
- WHITE
- FIXTURE SHAPE:
- ROUND
- IC RATED:
- YES
- INDOOR OUTDOOR:
- INDOOR
- LENS FINISH:
- FROST
- LENS MATERIAL:
- PLASTIC (PS)
- LONG DESCRIPTION:
- SATCO NUVO'S S39056 8.5-WATT LED 4 INCH RECESSED FIXTURE IS EDGE LIT. THE DIRECT WIRED DOWNLIGHT OFFERS WARM WHITE LIGHT WITH A 100 DEGREE BEAM SPREAD. THIS LED DOWNLIGHT IS AN ENERGY EFFICIENT LIGHTING SOLUTION FOR RETAIL SPACES OFFICES...
- MATERIAL:
- THERMAL CONDUCTIVE PLASTICS
- MOUNTING PROCEDURE:
- CEILING
- NUMBER OF LAMPS:
- 1
- OPERATING FREQUENCY:
- 60HZ
- POWER FACTOR:
- 0.93
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- TEMPERATURE (CCT):
- 3000K
- TRIM COLOR:
- WHITE
- WEIGHT LB.:
- 0.4
- LAMPS:
- YES
- STYLE:
- UTILITY
- AMPS:
- 0.071A
- CCT SELECTABLE:
- NO
- More Info {1}:
- DAMP RATED FOR INDOOR USE
- More Info {2}:
- EDGE-LIT TECHNOLOGY
- More Info {3}:
- ENERGY STAR CERTIFIED
- More Info {4}:
- H:1.94 D:5.00
- More Info {5}:
- INTEGRATED J-BOX FOR DIRECT WIRE INSTALLATION
- SDS CLASS:
- LED_LAMP
- WATTAGE SELECTABLE:
- NO
- AIR TIGHT:
- YES
- BAA COMPLIANT:
- NO
- DIMMABLE DOWN TO:
- 100 TO 10 PERCENT
- EFFICACY:
- 58.82 LPW
- JA8 COMPLIANT:
- YES
- R9 VALUE:
- 59
- ROMANCE COPY:
- SATCO NUVO'S 8.5-WATT LED 4 INCH RECESSED FIXTURE IS EDGE LIT. THE DIRECT WIRED DOWNLIGHT OFFERS WARM WHITE LIGHT WITH A 100 DEGREE BEAM SPREAD. THIS LED DOWNLIGHT IS AN ENERGY EFFICIENT LIGHTING SOLUTION FOR RETAIL SPACES OFFICES AND D...
- SHORT DESCRIPTION:
- 8.5WLED/DW/EL/4/30K/120V
- TITLE 20 COMPLIANT:
- EXEMPT
- TITLE 24 COMPLIANT:
- YES
- ORDER IN MULTIPLES OF:
- 1
- HAS EMERGENCY BATTERY:
- NO
- CATEGORY:
- RECESSED
- SUB CATEGORY:
- DIRECT WIRE
- COUNTRY OF ORIGIN:
- CHINA
- 4/29/2025 21:
- 26
- IMAGE INFO:
- 4/29/2025 4:12
- HAS CAMERA:
- NO
- IOT ENABLED:
- NO
- BEAM ANGLE SELECTABLE:
- NO
- CA PROP-65 STATEMENT:
- WARNING: THIS PRODUCT CAN EXPOSE YOU TO CHEMICALS INCLUDING LEAD WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER OR BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. FOR MORE INFORMATION GO TO HTTP://WWW.P65WARNINGS.CA.GOV.
- FIELD SELECTABLE:
- NO
- VOLTAGE TEXT:
- AC ONLY
