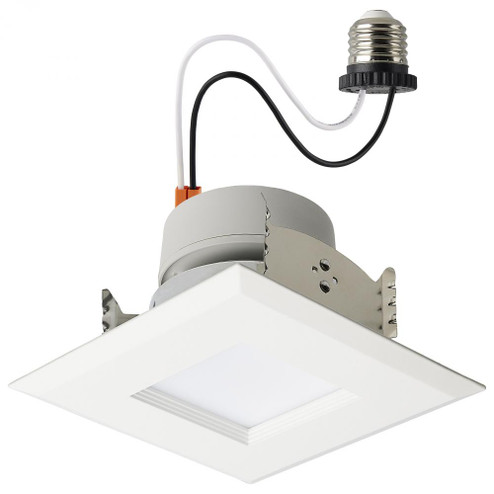

LED Retrofit Downlight; 5.5/6.5/8 Wattage Selectable; CCT and Lumens Selectable; 120 Volt; ColorQuick and PowerQuick Technology; Square; White Finish {ADDITIONAL FINISH INFORMATION: ''White''}
- AVAILABLE FOR PURCHASE:
- NO
- REQUIRED (NOT INCLUDED):
- 1 MEDIUM ADAPTER BULBS
- STYLE:
- UTILITY
- BULB HOURS:
- 50000
- BULB TYPE:
- LED
- DIMMABLE:
- YES-DIMMABLE
- HARMONIZED CODES:
- 8539.52.0091
- LENGTH:
- 5.31
- LUMENS:
- 500L/600L/700L
- SHIP CARTON HEIGHT:
- 5.51''
- SHIP CARTON LENGTH:
- 5.51
- SHIP CARTON WIDTH:
- 3.35''
- WARRANTY:
- 5-YEARS
- AMPS:
- 0.046/0.054/0.067A
- ANSI BASE:
- E26 ADAPTER
- BEAM SPREAD:
- 90
- CA PROP-65:
- LEAD
- CARTON CUBIC FEET:
- 0.0589
- CARTONS PER UNIT:
- 1
- CCT SELECTABLE:
- YES
- CEC:
- CALIFORNIA T24 2016 - 2025 JA8 LISTED T20 LISTED
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- CEC WEB TEXT:
- LAWFUL FOR SALE
- CONNECTION:
- CONNECTOR OR ADAPTER
- CRI:
- 90+
- DIMMING TYPE:
- PHASE CUT (TRIAC) 120V ONLY
- ES UNIQUE ID:
- 4614534
- FCC COMPLIANT:
- YES
- FEATURE 1:
- FIELD SELECTABLE (CCT AND WATTAGE)
- FEATURE 2:
- STEPPED BAFFLE FOR REDUCED GLARE
- FEATURE 3:
- 90 CRI
- FEATURE 4:
- E26 ADAPTER INCLUDED
- FEATURE 5:
- T20 AND T24 COMPLIANT
- FEATURE 6:
- ALUMINUM CONSTRUCTION WITH POLYCARBONATE LENS
- FEATURE 7:
- 50000 HOUR FUNCTIONAL LIFE
- FIXTURE SHAPE:
- SQUARE
- HAS DRIVER:
- YES
- IC RATED:
- NO
- INCANDESCENT EQUIVALENT:
- 60W
- INCLUDES:
- E26 ADAPTER INCLUDED (S9001)
- INDOOR OUTDOOR:
- INDOOR
- IOT ENABLED:
- NO
- LENS MATERIAL:
- POLYCARBONATE (PC)
- LONG DESCRIPTION:
- SATCO NUVO'S NEW S18802 LED FIELD SELECTABLE RETROFIT DOWNLIGHT IS THE EFFORTLESS SOLUTION FOR UPGRADING RECESSED LIGHTING IN YOUR SPACE. WITH TWO ON-UNIT SWITCHES THE ADJUSTMENT OF BOTH THE INPUT WATTAGE AND COLOR TEMPERATURE IS A BREE...
- MATERIAL:
- ALUMINUM ADC12
- OPERATING FREQUENCY:
- 60HZ
- OPERATING TEMPRATURE:
- -4F TO +104F (-20C TO +40C)
- PACK TYPE:
- COLOR BOX
- POWER FACTOR:
- 0.9
- QUANTITY IN PACK:
- 1
- REPLACEABLE LIGHT SOURCE:
- NO
- ROHS COMPLIANT:
- YES
- SAFETY LISTING:
- CETLUS - LISTED
- SDS CLASS:
- LED_FIXTURE
- TEMPERATURE (CCT):
- 2700K/3000K/3500K/4000K/5000K
- TRIM COLOR:
- WHITE
- WATTAGE SELECTABLE:
- YES
- WEIGHT LB.:
- 0.59
- QUANTITY AVAILABLE AT MANUFACTURER:
- 2517
- IMAGE INFO:
- ''S18802.JPG:DEFAULT''
- LOCAL_ON_DISPLAY:
- 0
- ON DISPLAY IN SHOWROOM:
- No
- LOCAL_COUNT_ON_DISPLAY:
- 0
- LOCAL_SALE:
- 0
- LOCAL_COUNT_SALE:
- 0
- LOCAL_IN_STOCK:
- 0
- IN STOCK IN SHOWROOM:
- No
- LOCAL_COUNT-IN_STOCK:
- 0
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- HEIGHT:
- 3.13
- HEIGHT RANGE:
- 0-15''
- WIDTH:
- 5.31
- WIDTH RANGE:
- 0-15''
- AIR TIGHT:
- NO
- BAA COMPLIANT:
- NO
- DIMMABLE DOWN TO:
- 100 TO 10 PERCENT
- EFFICACY:
- 90.91/92.31/87.50 LPW
- JA8 COMPLIANT:
- YES
- R9 VALUE:
- 73
- ROMANCE COPY:
- SATCO NUVO'S LED FIELD SELECTABLE RETROFIT DOWNLIGHTS ARE THE EFFORTLESS SOLUTION FOR UPGRADING RECESSED LIGHTING IN YOUR SPACE. WITH TWO ON-UNIT SWITCHES THE ADJUSTMENT OF BOTH THE INPUT WATTAGE AND COLOR TEMPERATURE IS A BREEZE AND ALLO...
- SHORT DESCRIPTION:
- 8LED/RDL/4/WS/5CCT/SQ
- TITLE 20 COMPLIANT:
- YES
- TITLE 24 COMPLIANT:
- YES
- FINISH:
- WHITE
- BULB SHAPE:
- INTEGRATED LED
- CAN SIZE:
- 4 IN.
- BULB KELVIN:
- WARM WHITE TO NATURAL LIGHT
- MOUNTING PROCEDURE:
- RECESSED RETROFIT
- ORDER IN MULTIPLES OF:
- 1
- CATEGORY:
- RECESSED
- SUB CATEGORY:
- RETROFITS
- COUNTRY OF ORIGIN:
- CHINA
- 4/29/2025 14:
- 18
- STANDARD STYLE:
- RECESSED LIGHTING TRIMS
- HAS CAMERA:
- NO
- HAS EMERGENCY BATTERY:
- NO
- BEAM ANGLE SELECTABLE:
- NO
- CA PROP-65 STATEMENT:
- WARNING: THIS PRODUCT CAN EXPOSE YOU TO CHEMICALS INCLUDING LEAD WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER OR BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. FOR MORE INFORMATION GO TO HTTP://WWW.P65WARNINGS.CA.GOV.
- DEFAULT CCT:
- 2700K
- DEFAULT LUMENS:
- 600L
- DIMMABLE FUNCTION:
- FORWARD PHASE (TRIAC)
- FIELD SELECTABLE:
- YES
- VOLTAGE TEXT:
- AC ONLY
