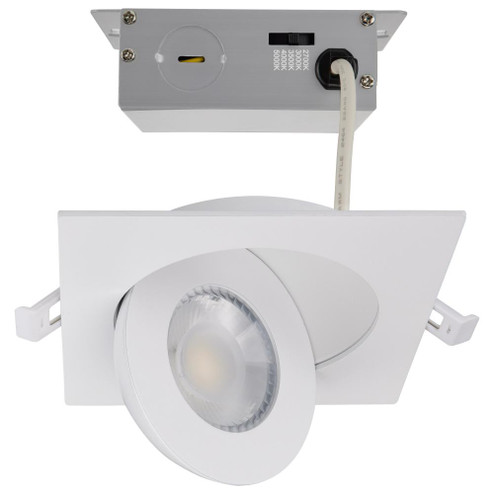

9 Watt; CCT Selectable; LED Direct Wire Downlight; Gimbaled; 4 Inch Square; Remote Driver; White {ADDITIONAL FINISH INFORMATION: ''White''}
- AVAILABLE FOR PURCHASE:
- NO
- REQUIRED (NOT INCLUDED):
- 1 INTEGRATED BULBS
- BULB HOURS:
- 50000
- BULB SHAPE:
- INTEGRATED LED
- BULB TYPE:
- LED
- DIMMABLE:
- YES-DIMMABLE
- HARMONIZED CODES:
- 9405.11.8010
- LENGTH:
- 4.92
- LUMENS:
- 650L-750L
- WARRANTY:
- 5 YEAR LIMITED - FIXTURES
- BEAM SPREAD:
- 36
- CA PROP-65:
- LEAD
- CARTONS PER UNIT:
- 1
- CRI:
- 90
- DIMMABLE FUNCTION:
- DIMMING RANGE FROM 100 TO LESS THAN OR EQUAL TO 20 PERCENT DEPENDING ON DIMMER CONTROL
- OPERATING TEMPRATURE:
- -20C (-4F) TO +45C (+113F)
- PACK TYPE:
- COLOR BOX
- REPLACEABLE LIGHT SOURCE:
- NO
- SAFETY LISTING:
- CETLUS - LISTED
- QUANTITY AVAILABLE AT MANUFACTURER:
- 1217
- LOCAL_ON_DISPLAY:
- 0
- ON DISPLAY IN SHOWROOM:
- No
- LOCAL_COUNT_ON_DISPLAY:
- 0
- LOCAL_SALE:
- 0
- LOCAL_COUNT_SALE:
- 0
- LOCAL_IN_STOCK:
- 0
- IN STOCK IN SHOWROOM:
- No
- LOCAL_COUNT-IN_STOCK:
- 0
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- HEIGHT:
- 1.42
- HEIGHT RANGE:
- 0-15''
- WIDTH:
- 4.92
- WIDTH RANGE:
- 0-15''
- BULB KELVIN:
- WARM TO COOL WHITE
- DIAMETER:
- 4.92
- SHIP CARTON HEIGHT:
- 5.08''
- SHIP CARTON LENGTH:
- 6.34
- SHIP CARTON WIDTH:
- 3.07''
- CARTON CUBIC FEET:
- 0.0572
- CEILING APERTURE:
- 4.25 IN. CUTOUT
- INCANDESCENT EQUIVALENT:
- 50W
- IP RATING:
- IP42
- MAX DRYWALL THICKNESS:
- 1 IN.
- CEILING:
- YES
- WALL:
- YES
- ADDITIONAL INFO:
- CANDLEPOWER: 750
- ANSI BASE:
- INTEGRATED
- CCT SELECTABLE:
- YES
- CEC:
- CALIFORNIA T24 2016 - 2022 JA8 LISTED
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- CEC WEB TEXT:
- CALIFORNIA T24 LISTED
- CLEARANCE HEIGHT:
- 3''
- CONNECTION:
- DIRECT WIRED
- ES UNIQUE ID:
- ESID-2393126
- FCC COMPLIANT:
- YES
- FEATURE 1:
- CCT SELECTABLE 2700K/3000K/3500K/4000K/5000K
- FEATURE 2:
- 360-DEGREE ROTATION 0 TO 80-DEGREE AIMING ANGLE
- FEATURE 3:
- DIMMING RANGE 10 PERCENT TO 100 PERCENT
- FEATURE 4:
- DAMP LOCATION RATED
- FEATURE 5:
- LONG LIFE - 50000 HOURS
- FEATURE 6:
- ENERGY STAR CERTIFIED
- FINISH FAMILY:
- WHITE
- FIXTURE SHAPE:
- SQUARE
- HAS DRIVER:
- YES
- HAS EMERGENCY BATTERY:
- NO
- IC RATED:
- YES
- INDOOR OUTDOOR:
- INDOOR
- IOT ENABLED:
- NO
- LENS FINISH:
- CLEAR
- LENS MATERIAL:
- PLASTIC (PS)
- LONG DESCRIPTION:
- THE WHITE FOUR-INCH SQUARE SATCO S11841 GIMBALED DOWNLIGHT DELIVERS MULTIPLE ADVANTAGES TO ANY GENERAL RECESSED LIGHTING PROJECT. OUR COLORQUICK TECHNOLOGY ALLOWS THE USER TO CHOOSE THE COLOR TEMPERATURE FROM FIVE DIFFERENT SETTINGS AND B...
- MATERIAL:
- ALUMINUM
- MOUNTING PROCEDURE:
- CEILING
- OPERATING FREQUENCY:
- 60HZ
- POWER FACTOR:
- >0.9
- QUANTITY IN PACK:
- 1
- REC SPACING BETWEEN FIXTURES:
- 3 FT. TO 4 FT.
- ROHS COMPLIANT:
- YES
- SLOPED CEILING COMPATIBLE:
- YES
- TEMPERATURE (CCT):
- 2700K/3000K/3500K/4000K/5000K
- WEIGHT LB.:
- 1
- STYLE:
- UTILITY
- AMPS:
- 0.075A
- CAN SIZE:
- 4 IN.
- IMAGE INFO:
- ''''
- More Info {1}:
- CANDLEPOWER: 750
- More Info {2}:
- CCT SELECTABLE 2700K/3000K/3500K/4000K/5000K
- More Info {3}:
- DAMP LOCATION RATED
- More Info {4}:
- DIMMING RANGE 10 PERCENT TO 100 PERCENT
- More Info {5}:
- ENERGY STAR CERTIFIED
- More Info {6}:
- LONG LIFE - 50000 HOURS
- INSTALLATION NOTES:
- **IF YOU PURCHASE THE 5W EMERGENCY DRIVER (S8000) OR THE 10W EMERGENCY DRIVER (S8002) YOU MUST ALSO PURCHASE THE EMERGENCY DRIVER ENCLOSURE (80-973)
- SDS CLASS:
- LED_LAMP
- WATTAGE SELECTABLE:
- NO
- AIR TIGHT:
- YES
- BAA COMPLIANT:
- NO
- DIMMABLE DOWN TO:
- 100 TO 10 PERCENT
- EFFICACY:
- 72.22/77.78/83.33 LPW
- JA8 COMPLIANT:
- YES
- R9 VALUE:
- 53
- ROMANCE COPY:
- THESE LOW PROFILE CCT SELECTABLE REMOTE DRIVER DOWNLIGHTS DELIVER MULTIPLE ADVANTAGES TO ANY GENERAL RECESSED LIGHTING PROJECT. OUR COLORQUICK TECHNOLOGY ALLOWS THE USER TO CHOOSE THE COLOR TEMPERATURE FROM FIVE DIFFERENT SETTINGS AND BRI...
- SHORT DESCRIPTION:
- 9WLED/GBL/4/CCT/SQ/WH
- TITLE 20 COMPLIANT:
- NO
- TITLE 24 COMPLIANT:
- YES
