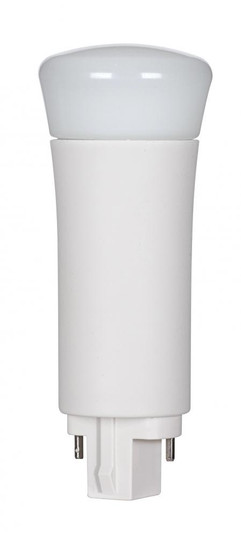

9 Watt LED PL 2-Pin; 3500K; 950 Lumens; G24d base; 50000 Average rated hours; 120 Deg. Beam Angle; Vertical; Type B; Ballast Bypass {ADDITIONAL FINISH INFORMATION: ''White''}
- BULB DIMMABLE:
- Non-Dimmable
- BULB HOURS:
- 50000
- BULB KELVIN:
- 3500K
- BULB SHAPE:
- PL
- DIAMETER:
- 1.91
- HARMONIZED CODES:
- 8539.52.0091
- LENGTH:
- 4.69
- LUMENS:
- 950L
- SHIP CARTON HEIGHT:
- 4.84''
- SHIP CARTON LENGTH:
- 1.93
- SHIP CARTON WIDTH:
- 1.93''
- SHIP WEIGHT:
- 0.31
- VOLTS:
- 120V-277V
- WARRANTY:
- 5 Year Limited - 10 hr per day
- BEAM SPREAD:
- 120
- BULB ANSI BASE:
- G24d
- BULB BASE:
- G24D (2-PIN)
- BULB FINISH:
- Frost
- BURNING POSITION:
- BASE UP OR DOWN
- CARTON CUBIC FEET:
- 0.0104
- CARTONS PER UNIT:
- 1
- CEC:
- Exempt - Base Not Regulated
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- CEC WEB TEXT:
- LAWFUL FOR SALE
- COLOR TEMPRATURE:
- Neutral White
- CRI:
- 82
- ENCLOSURE RATING:
- ENCLOSED RATED LAMP
- FLUORESCENT EQUIVALENT:
- 18W/26W
- LAMP FILAMENT:
- LED
- LENS:
- YES
- LOCATION RATING:
- Damp
- OPERATING TEMP:
- -20C (-4F) TO +45C (+113F)
- PACK TYPE:
- Box
- WATTS:
- 9W
- WIDTH:
- 1.91
- WIDTH RANGE:
- 0-15''
- LAMPS:
- YES
- FINISH:
- WHITE
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- Standard Style:
- Traditional
- DIMMABLE:
- Non-Dimmable
- AVAILABLE FOR PURCHASE:
- NO
- QUANTITY AVAILABLE AT MANUFACTURER:
- 1493
- ADDITIONAL INFO:
- IN G24D (2-PIN) SOCKETS REPLACES 18 AND 26 WATT CFLS IN G24Q (4-PIN) SOCKETS REPLACES 13 18 AND 26 WATT CFLS
- BALLAST BYPASS DIRECT:
- BALLAST BYPASS
- BALLASTING REQUIREMENTS:
- BALLAST BYPASS- DIRECT WIRE ONLY 100V-277V
- ENCLOSURE RATING1:
- YES
- FCC COMPLIANT:
- YES
- INSTALLATION NOTES:
- 2-PIN LED LAMPS WORK IN BOTH 2-PIN (MAGNETIC) AND 4-PIN (ELECTRONIC) SOCKETS.
- LAMP BALLAST TYPE A/B/C:
- TYPE B
- LENS FINISH:
- FROST
- OPERATING FREQUENCY:
- 50/60HZ
- QUANTITY IN PACK:
- 1
- RATED FOR VAPOR TIGHT FIXTURE:
- NO
- ROHS COMPLIANT:
- YES
- SDS CLASS:
- LED_LAMP
- SDS SHEET LINK:
- #REF!
- TECHNOLOGY:
- LED
- CCT SELECTABLE:
- NO
- ORDER IN MULTIPLES OF:
- 1
- DLC APPROVED:
- NO
- WATTAGE SELECTABLE:
- NO
- BAA COMPLIANT:
- NO
- INCANDESCENT EQUIVALENT:
- 40W
- 3-WAY:
- #REF!
- MAX. DIAMETER:
- #REF!
- EFFICACY:
- 105.56 LPW
- ENCLOSED FIXTURE USE:
- YES
- R9 VALUE:
- 12
- SHORT DESCRIPTION:
- 9WPLV/LED/835/BP/2P
- STYLE:
- TRANSITIONAL
- TITLE 20 COMPLIANT:
- NO
- EA LENGTH:
- 1.93
- SHAP CARTON WIDTH:
- 1.93''
- FLOURESCENT EQUIVALENT:
- 18W/26W
- POWER FACTOR:
- 0.99
