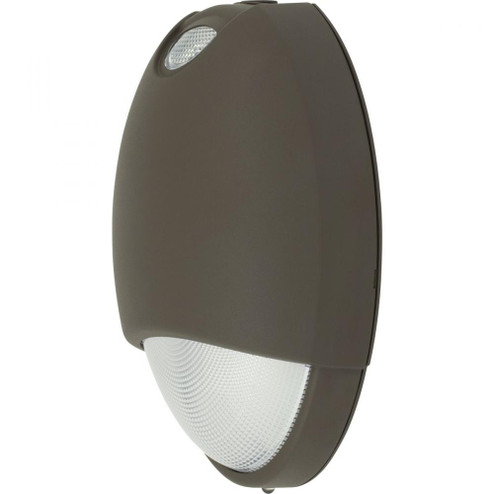

The PEOEU Series offers LED performance in ''normally on'' AC and emergency lighting modes. The unit has a prismatic polycarbonate refractor with a durable die-cast aluminum housing with a durable dark bronze powder coated finish. The housing is fully sealed and gasketed. It is designed for wall mounting with a universal K/O pattern in the back-plate for installation to most standard size junction boxes. Illumination is provided by 2 high power LEDs driven at 3 watts each. The PEOEU Series can be applied in areas that are susceptible to rain and severe moisture, such as parking decks and outdoor commercial applications. {ADDITIONAL FINISH INFORMATION: ''Bronze''}
- OPTION:
- ENERGY EFFICIENT
- SHADE:
- Prismatic
- FAMILY:
- Exit Signs
- NUMBER OF BULBS:
- 2
- BULB TYPE:
- LED
- CANOPY:
- oval
- DEPTH:
- 3.63
- DIAMETER:
- 6.13
- EXTENSION:
- 3.625
- INTRODUCTION DATE:
- 01/16/2017
- KELVIN:
- 5500
- LENGTH:
- 10.47
- MATERIAL:
- die-cast aluminum
- SHIP CARTON HEIGHT:
- 4.00''
- SHIP CARTON LENGTH:
- 12.00
- SHIP CARTON WIDTH:
- 7.75''
- SHIP WEIGHT:
- 4.00
- SPECIAL FEATURES:
- Led Life-Cycle Of More Than 10 Years. Includes Self-Diagnostics Feature To Monitor Proper Operation. Includes Long-Life 4.8 Vdc Nickel Cadmium Battery For Ul Recognized 90 Minute Operation. Universal 100-300Vac Input. Full Re-Charge Withi...
- VENDOR SHIP METHOD:
- NON UPS SHIPPABLE FALSE
- VOLTAGE:
- UNIVERSAL 100-300 VAC
- WARRANTY:
- 2 YEAR FULL UNIT
- WEIGHT:
- 4.00
- WIRE INCLUDED:
- 6 IN
- AMERICANS WITH DISABILITIES ACT:
- NO
- CAN BE MOUNTED UP OR DOWN:
- NO
- CANOPY SHAPE:
- Oval
- COLOR GENERIC:
- Brown
- CONSTRUCTION MATERIAL:
- Construction
- CONVERTIBLE FIXTURE INCLUDES BOTH MOUNTS:
- FALSE
- DARK SKY:
- NO
- DESIGN SERIES:
- No
- ENERGY STAR:
- NO
- FINISH TYPE:
- Painted
- FREQUENCY RATING:
- 60 HZ
- GLASS:
- PRISMATIC
- GROUNDED CONVENIENCE OUTLET INCLUDED:
- NO
- JA8:
- No
- LAMP TYPE BASIC:
- solid state
- LENS SHADE MATERIAL:
- Polycarbonate
- LONG DESCRIPTION:
- LED life-cycle of more than 10 years. Includes self-diagnostics feature to monitor proper operation. Includes long-life 4.8 VDC Nickel Cadmium battery for UL recognized 90 minute operation. Universal 100-300VAC input. Full re-charge withi...
- MOUNT LOCATION:
- Wall
- MTO:
- No
- NON UPS SHIPPABLE:
- FALSE
- OPERATING TEMPRATURE:
- 30 °C
- PROPOSITION 65 CANCER:
- Yes
- PROPOSITION 65 REPRODUCTIVE HARM:
- Yes
- PROPOSITION 65 WARNING REQUIRED?:
- Yes
- ROOM TYPE:
- Emergency
- SAFETY RATING:
- UL924
- SHORT DESCRIPTION:
- Decorative LED Emergency Light
- SHOWROOM:
- No
- SOCKET BASE TYPE:
- LED
- STARTING TEMPERATURE - MINIMUM:
- -30 °C
- SUB BRAND:
- Progress LED
- TITLE 24:
- NO
- WEIGHT OF FIXTURE EXCEEDS NEC LIMITS:
- No
- WET RATED:
- Yes
- HEIGHT:
- 10.50
- WIDTH:
- 6.13
- WIDTH RANGE:
- 0-15''
- LAMPS:
- YES
- FINISH:
- BRONZE
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- BULBS:
- 3 Watt LED:3 Watt LED:2
- Standard Style:
- Traditional
- AVAILABLE FOR PURCHASE:
- YES
- QUANTITY AVAILABLE AT MANUFACTURER:
- UNKNOWN
- IMAGE INFO:
- ''''
- SHIP CARTON LENGTH1:
- 61.180
- TITLE 20:
- YES
- GLASS SHAPE:
- REFRACTOR
- OPTION1:
- TITLE 20
- OPTION2:
- WET RATED
- BULB BASE:
- LED
- BULB INCLUDED:
- YES
- CERTIFIED LISTED LOCATION:
- WET LOCATION LISTED
- CONSTRUCTION MATERIAL MAIN PART:
- CONSTRUCTION
- ENERGY EFFICIENT:
- YES
- LAMP TYPE ACTUAL:
- LED
- LAMP WATTAGE:
- 3
- OPERATING TEMPERATURE CELCIUS MAX:
- 30 °C
- PROP 65:
- YES
- PROP 65 DESCRIPTION:
- REPRODUCTIVE HARM CANCER
- STARTING TEMPERATURE MINIMUM:
- -30 °C
- WIDTH DIAMETER:
- 6.125 IN W.''
