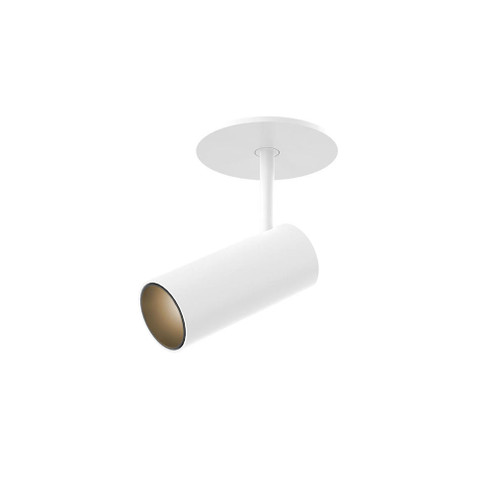

Recessed within the minute barrel of the quintessential adjustable lamp is a spot light assembly applied across the X line. By utilizing slim AC LED boards the canopy scale is reduced to a fundamental trim plate and minimizes the visual footprint of the functional fixtures. Available in two petite cylindrical sizes and a single or multi-light configuration. {ADDITIONAL FINISH INFORMATION: ''White''}
- OPTION:
- DRY RATED
- BULBS:
- 7 Watt:7 Watt:0
- NUMBER OF BULBS:
- 1
- DIAMETER:
- 2.38
- VOLTAGE:
- 120 V
- WARRANTY:
- 5 Years
- LED:
- Yes
- SAFETY LISTING:
- ETL
- FINISH:
- WHITE
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- LOCAL_CLEARANCE:
- 0
- HEIGHT:
- 4.25
- WIDTH:
- 5.90
- HEIGHT RANGE:
- 0-15''
- WIDTH RANGE:
- 0-15''
- AVAILABLE FOR PURCHASE:
- NO
- CANOPY:
- 0.06 H X 2.38 DIA
- SHIP WEIGHT:
- 2
- BRAND:
- KUZCO
- FIXTURE DIMENSIONS:
- D2-3/8'' X H4-1/4''
- QUANTITY AVAILABLE AT MANUFACTURER:
- 0
- SHIP CARTON HEIGHT:
- 4''
- SHIP CARTON LENGTH:
- 8
- SHIP CARTON WIDTH:
- 6''
- CARTON CUBIC FEET:
- 0.0029
- FREIGHT TERM:
- SMALL
- STANDARD STYLE:
- TRANSITIONAL
- FAMILY:
- DOWNEY
- KELVIN:
- 3000
- LUMENS / LIGHT OUTPUT:
- 510
- VENDOR SHIP METHOD:
- SMALL
- BULB CRI:
- 90
- CANOPY INCLUDED:
- YES
- PRODUCT DIMMER:
- TRIAC OR ELV DIMMING
- PRODUCT DIMMING PERCENTAGE:
- 100% - 10%
- PRODUCT WATTAGE:
- 8W
- IMAGE INFO:
- ''DOWNEY_SF15701-WH.JPG:DEFAULT''
- OPTION1:
- TITLE 24
- LENGTH:
- 5.9
- WEIGHT:
- 3.74
- BULB INCLUDED:
- NO
- BULB LIGHT SOURCE NAME:
- LED WITH DC DRIVER
- BULB RATED LIFE:
- 50000 HOURS
- BULB WATTAGE:
- 7 W
- DELIVERED LUMENS:
- 274
- DIFFUSER:
- CLEAR ACRYLIC TIR LENS
- DIMMER TYPE:
- TRIAC OR ELV DIMMER (NOT INCLUDED)
- DIMMING:
- 100% - 10%
- DRY RATED:
- YES
- SAFETY RATING:
- ETL APPROVED
- TITLE 24:
- YES
- TOTAL NOM LUMENS:
- 510LM
- VOLUME:
- 0.003
- OPTION2:
- TITLE 24
- JA8-19:
- YES
- BULB HOURS:
- 50000
- INTRODUCTION DATE:
- 06/01/2019
- CANOPY STYLE:
- ROUND
- CEC COMPLIANT:
- YES
- DIFFUSER MATERIAL:
- CLEAR ACRYLIC TIR LENS
- DIMMING TYPE:
- TRIAC/ELV COMPATIBLE (OPTIONAL NOT INCLUDED)
- LIGHT SOURCE:
- LED WITH DC DRIVER
- LOCATION RATING:
- DRY RATED
- TOTAL LUMENS:
- 510
- HTTPS:
- //S3-US-WEST-2.AMAZONAWS.COM/CATSY.870/SF15701_SPEC_SHEET.PDF:CLICK HERE TO VIEW SPEC SHEET
- HTTPS1:
- //S3-US-WEST-2.AMAZONAWS.COM/CATSY.870/SF15701_INSTALLATION_INSTRUCTIONS.PDF:CLICK HERE TO VIEW INSTALLATION SHEET
- MATERIAL:
- ALUMINUM
- More Info {1}:
- DESIGNED FOR HALLWAY ENTRYWAY KITCHEN AND BEYOND
- More Info {2}:
- DIMMABLE SEE SPECS FOR DETAIL
- More Info {3}:
- EASY ASSEMBLY INSTRUCTIONS INCLUDED IN BOX
- More Info {4}:
- INSTALLATION HARDWARE INCLUDED
- More Info {5}:
- INTEGRATED LED WITH 3000K WARM WHITE COLOR TEMPERATURE
- More Info {6}:
- MODERN CONTEMPORARY STYLE WITH DECORATIVE DETAILS
- COLOR:
- WHITE
- ILLUMINATION DIRECTION:
- DOWN
- MAX WATTAGE:
- 7 W
