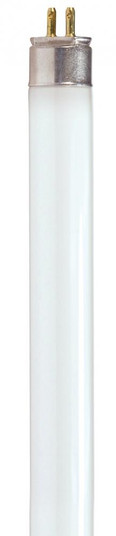

24 Watt; T5; Fluorescent; 3500K Neutral White; 85 CRI; Miniature Bi Pin base The SATCO S8138 T5 high output fluorescent lamp gives off roughly twice the light output of standard T8 bulbs. This lamp is suitable for use in high-ceiling applications, along with fixtures in T-grid ceilings. Our T5 HO lamp offers superior quality color and advanced lumen maintenance over time. {ADDITIONAL FINISH INFORMATION: ''White''}
- AVAILABLE FOR PURCHASE:
- NO
- BULB HOURS:
- 30000
- BULB KELVIN:
- 3500K
- BULB SHAPE:
- T5
- DIAMETER:
- 0.63
- HARMONIZED CODES:
- 8539.31.0070
- LENGTH:
- 22.19
- LUMENS:
- 2000L
- SHIP CARTON HEIGHT:
- 0.6899999999999999''
- SHIP CARTON LENGTH:
- 22.17
- SHIP CARTON WIDTH:
- 0.6899999999999999''
- SHIP WEIGHT:
- 0.13
- WARRANTY:
- 3-YEARS
- BEAM SPREAD:
- 360
- BULB ANSI BASE:
- G5
- BULB BASE:
- MINIATURE BI PIN
- BULB FINISH:
- WHITE
- CARTON CUBIC FEET:
- 0.0061
- CARTONS PER UNIT:
- 1
- CEC:
- NON-COMPLIANT - MERCURY CONTENT
- CEC TERSE:
- NON-COMPLIANT
- CEC WEB TEXT:
- NON-COMPLIANT
- COLOR TEMPRATURE:
- NEUTRAL WHITE
- CRI:
- 85+
- HOUSING COLOR:
- NONE
- LENS:
- YES
- NOMINAL LENGTH:
- 24
- OPERATING TEMP:
- BALLAST DEPENDENT
- PACK TYPE:
- SLEEVE
- WATTS:
- 24W
- QUANTITY AVAILABLE AT MANUFACTURER:
- 1229
- FINISH:
- WHITE
- LOCAL_ON_DISPLAY:
- 0
- ON DISPLAY IN SHOWROOM:
- No
- LOCAL_COUNT_ON_DISPLAY:
- 0
- LOCAL_SALE:
- 0
- LOCAL_COUNT_SALE:
- 0
- LOCAL_IN_STOCK:
- 0
- IN STOCK IN SHOWROOM:
- No
- LOCAL_COUNT-IN_STOCK:
- 0
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- STANDARD STYLE:
- FLUORESCENT LIGHT BULBS
- WIDTH:
- 0.69
- WIDTH RANGE:
- 0-15''
- DIMMABLE:
- NON-DIMMABLE
- CCT SELECTABLE:
- NO
- FEATURE 1:
- 360-DEGREE BEAM SPREAD
- FEATURE 2:
- OPERATING TEMPERATURE: BALLAST DEPENDENT
- FEATURE 3:
- RATED FOR USE IN ENCLOSED FIXTURES
- FEATURE 4:
- DRY LOCATION RATED
- FEATURE 5:
- LUMINOUS EFFICACY: 83.33 LM/W
- FEATURE 6:
- NON-DIMMABLE
- LONG DESCRIPTION:
- THE SATCO S8138 T5 HIGH OUTPUT FLUORESCENT LAMP GIVES OFF ROUGHLY TWICE THE LIGHT OUTPUT OF STANDARD T8 BULBS. THIS LAMP IS SUITABLE FOR USE IN HIGH-CEILING APPLICATIONS ALONG WITH FIXTURES IN T-GRID CEILINGS. OUR T5 HO LAMP OFFERS SUPERI...
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- SDS CLASS:
- LINEAR_FLUORESCENT_LAMP
- SDS SHEET LINK:
- #REF!
- TECHNOLOGY:
- FLUORESCENT
- BURNING POSITION:
- UNIVERSAL
- BALLAST BYPASS DIRECT:
- DIRECT
- BALLASTING REQUIREMENTS:
- FOR USE WITH ELECTRONIC BALLASTS
- LAMP BALLAST TYPE A/B/C:
- TYPE A
- LAMPS:
- YES
- DLC APPROVED:
- NO
- WATTAGE SELECTABLE:
- NO
- ENCLOSURE RATING:
- 0
- BAA COMPLIANT:
- NO
- 3-WAY:
- #REF!
- MAX. DIAMETER:
- #REF!
- EFFICACY:
- 83.33 LPW
- JA8 COMPLIANT:
- NO
- ROMANCE COPY:
- THE SATCO T5 HIGH OUTPUT FLUORESCENT LAMPS GIVE OFF ROUGHLY TWICE THE LIGHT OUTPUT OF STANDARD T8 BULBS. THESE LAMPS ARE SUITABLE FOR USE IN HIGH-CEILING APPLICATIONS ALONG WITH FIXTURES IN T-GRID CEILINGS. OUR T5 HO LAMPS OFFER SUPERIOR ...
- SHORT DESCRIPTION:
- F24T5/835/HO/ENV
- TITLE 20 COMPLIANT:
- NO
- TITLE 24 COMPLIANT:
- NO
- BULB DIMMABLE:
- NON-DIMMABLE
- EA LENGTH:
- 22.17
- SHAP CARTON WIDTH:
- 0.6899999999999999''
- WEIGHT:
- 0.12
- CA PROP-65:
- LEAD
- RI TERSE:
- NON-COMPLIANT
- HAS CAMERA:
- NO
- HAS EMERGENCY BATTERY:
- NO
- IOT ENABLED:
- NO
- IMAGE INFO:
- ''S8138.JPG:DEFAULT''
- HEIGHT:
- 0.69
- HEIGHT RANGE:
- 0-15''
