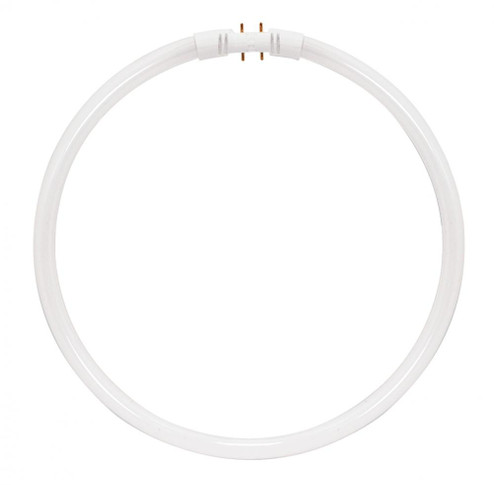

40 Watt; T5; Circline Fluorescent; 3500K Neutral White; 82 CRI; 2GX13 (4-Pin) base The SATCO S8159 T5 circline fluorescent lamp is designed to provide energy savings in slim spaces. The 40-Watt, 3500K neutral white lamp fits into circular fixtures with four-pin bases. This Circline lamp can be used in both decorative and retail environments. {ADDITIONAL FINISH INFORMATION: ''White''}
- AVAILABLE FOR PURCHASE:
- NO
- BULB HOURS:
- 12000
- BULB KELVIN:
- 3500K
- BULB SHAPE:
- 2GX13 (4-PIN)
- DIAMETER:
- 0.63
- HARMONIZED CODES:
- 8539.31.0070
- LENGTH:
- 12.01
- LUMENS:
- 3300L
- SHIP CARTON HEIGHT:
- 12.01''
- SHIP CARTON LENGTH:
- 12.01
- SHIP CARTON WIDTH:
- 0.79''
- SHIP WEIGHT:
- 0.47
- WARRANTY:
- 3-YEARS
- BEAM SPREAD:
- 360
- BULB ANSI BASE:
- 2GX13
- BULB BASE:
- 2GX13 (4-PIN)
- BULB FINISH:
- FROST
- CARTON CUBIC FEET:
- 0.0659
- CARTONS PER UNIT:
- 1
- CEC:
- NON-COMPLIANT - MERCURY CONTENT
- CEC TERSE:
- NON-COMPLIANT
- CEC WEB TEXT:
- NON-COMPLIANT
- COLOR TEMPRATURE:
- NEUTRAL WHITE
- CRI:
- 80+
- LENS:
- YES
- MAX. DIAMETER:
- #REF!
- NOMINAL LENGTH:
- 12
- PACK TYPE:
- BOX
- WATTS:
- 40W
- QUANTITY AVAILABLE AT MANUFACTURER:
- 1732
- FINISH:
- WHITE
- LOCAL_ON_DISPLAY:
- 0
- ON DISPLAY IN SHOWROOM:
- No
- LOCAL_COUNT_ON_DISPLAY:
- 0
- LOCAL_SALE:
- 0
- LOCAL_COUNT_SALE:
- 0
- LOCAL_IN_STOCK:
- 0
- IN STOCK IN SHOWROOM:
- No
- LOCAL_COUNT-IN_STOCK:
- 0
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- STANDARD STYLE:
- FLUORESCENT LIGHT BULBS
- WIDTH:
- 0.79
- WIDTH RANGE:
- 0-15''
- DIMMABLE:
- NON-DIMMABLE
- CCT SELECTABLE:
- NO
- FEATURE 1:
- 360-DEGREE BEAM SPREAD
- FEATURE 2:
- OPERATING TEMPERATURE: BALLAST DEPENDENT
- FEATURE 3:
- RATED FOR USE IN ENCLOSED FIXTURES
- FEATURE 4:
- DRY LOCATION RATED
- FEATURE 5:
- LUMINOUS EFFICACY: 82.50 LM/W
- FEATURE 6:
- NON-DIMMABLE
- INSTALLATION NOTES:
- OUTER DIAMETER IS 12 INCHES
- LONG DESCRIPTION:
- THE SATCO S8159 T5 CIRCLINE FLUORESCENT LAMP IS DESIGNED TO PROVIDE ENERGY SAVINGS IN SLIM SPACES. THE 40-WATT 3500K NEUTRAL WHITE LAMP FITS INTO CIRCULAR FIXTURES WITH FOUR-PIN BASES. THIS CIRCLINE LAMP CAN BE USED IN BOTH DECORATIVE AND...
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- SDS CLASS:
- LINEAR_FLUORESCENT_LAMP
- SDS SHEET LINK:
- #REF!
- TECHNOLOGY:
- FLUORESCENT
- BURNING POSITION:
- UNIVERSAL
- OPERATING TEMP:
- BALLAST DEPENDENT
- BALLAST BYPASS DIRECT:
- DIRECT
- BALLASTING REQUIREMENTS:
- FOR USE WITH ELECTRONIC BALLASTS
- LAMP BALLAST TYPE A/B/C:
- TYPE A
- LAMPS:
- YES
- DLC APPROVED:
- NO
- WATTAGE SELECTABLE:
- NO
- ENCLOSURE RATING:
- 0
- BAA COMPLIANT:
- NO
- 3-WAY:
- #REF!
- EFFICACY:
- 82.50 LPW
- JA8 COMPLIANT:
- NO
- ROMANCE COPY:
- THE SATCO T5 CIRCLINE FLUORESCENT LAMPS ARE DESIGNED TO PROVIDE ENERGY SAVINGS IN SLIM SPACES. THESE LAMPS ARE DESIGNED TO FIT INTO CIRCULAR FIXTURES WITH FOUR-PIN BASES. CIRCLINE LAMPS CAN BE USED IN BOTH DECORATIVE AND RETAIL ENVIRONMENT...
- SHORT DESCRIPTION:
- FC40T5/835
- TITLE 20 COMPLIANT:
- NO
- TITLE 24 COMPLIANT:
- NO
- BULB DIMMABLE:
- NON-DIMMABLE
- EA LENGTH:
- 12.01
- SHAP CARTON WIDTH:
- 0.79''
- CA PROP-65:
- LEAD
- RI TERSE:
- NON-COMPLIANT
- HOUSING COLOR:
- NONE
- HAS CAMERA:
- NO
- HAS EMERGENCY BATTERY:
- NO
- IOT ENABLED:
- NO
- IMAGE INFO:
- ''S8159.JPG:DEFAULT''
- HEIGHT:
- 12.01
- KELVIN:
- 3500K
- LENGTH1:
- 12
- LUMENS / LIGHT OUTPUT:
- 3300L
- More Info {1}:
- T5
- BEAM ANGLE SELECTABLE:
- NO
- CA PROP-65 STATEMENT:
- WARNING: THIS PRODUCT CAN EXPOSE YOU TO CHEMICALS INCLUDING LEAD WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER OR BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. FOR MORE INFORMATION GO TO HTTP://WWW.P65WARNINGS.CA.GOV.
- CASE CUFT:
- 0.995
- CASE HEIGHT:
- 12.6''
- CASE LENGTH:
- 12.6
- CASE QTY:
- 12
- CASE WEIGHT:
- 6.38
- CASE WIDTH:
- 10.83''
- CERTIFICATION:
- NOT APPLICABLE
- ENCLOSED FIXTURE USE:
- YES
- HG CONTENT:
- 2.7
- MEAN LUMENS:
- 3350
- US STATE RESTRICTIONS:
- CA CO HI ME MN OR RI VT
