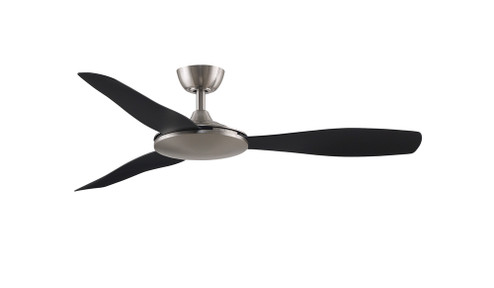

GlideAire - 52 Inch - BN with BL Blades (90|FPD8520BNBL)

Shop This Collection
$420.00
Free Shipping on orders over $99. Usually ships in 1-3 days.
Write a Review
Finish: NICKEL
Width: 52.00in
Height: 9.98in

Estimated Quantity at Manufacturer 300

On Display In Store

X
GlideAire by fanimation has a contemporary design and uses the latest technology. fanSync Bluetooth is included with purchase and GlideAire is WiFi compatible with the purchase of an optional control. This damp rated fan is available in three finish combinations and comes with a 31 speed DC motor. *Damp Rated for indoor or outdoor use *Can be controlled using the Fanimation bluetooth fanSync app *Reversible airflow for multi-season use GlideAire by fanimation has a contemporary design and uses the latest technology. fanSync Bluetooth is included with purchase and GlideAire is WiFi compatible with the purchase of an optional control. This damp rated fan is available in three finish combinations and comes with a 31 speed DC motor. *Damp Rated for indoor or outdoor use *Can be controlled using the Fanimation bluetooth fanSync app *Reversible airflow for multi-season use {ADDITIONAL FINISH INFORMATION: ''Brushed Nickel''}
OPTION:
DAMP
FAMILY:
GlideAire
ADDITIONAL INFO:
5876 CFM on High
ADDITIONAL INFO1:
COMPATIBLE WITH MOST SMART HOME DEVICES (REQUIRED CONTROLS SOLD SEPARATELY)
AIR FLOW CFM:
5538
AIR FLOW EFFICIENCY:
215
AMPERAGE:
0.36
BLADE FINISH:
Black
BLADE PITCH:
15
BLADES INCLUDED:
3
CANOPY:
5.71 DIA X 2.23 H
DIAMETER:
11.02
DOWN ROD INCLUDED:
4.5
ELECTRICITY USED:
26
HARMONIZED CODES:
8414.51.3000
LENGTH:
52
MATERIAL:
Composite
MOTOR FAN SPEED:
16
MOTOR RPM:
173
MOTOR SIZE:
158 X 15
MOTOR TYPE:
DC
REMOTE CONTROL INCLUDED:
TR205D
SHIP CARTON HEIGHT:
8.58''
SHIP CARTON LENGTH:
24.61
SHIP CARTON WIDTH:
12.8''
SHIP WEIGHT:
15.9
SOLD BY:
EACH
VOLTAGE:
120 V
WARRANTY:
LIMITED LIFETIME
WEIGHT:
13.3
AIRFLOW EFFICIENCY LOW:
192
AIRFLOW EFFICIENCY MEDIUM:
456
AVG AIRFLOW EFFICIENCY:
218
AVG CFM ENERGY:
3746
AVG ENERGY USE (WATTS):
17
AVG ESTIMATED YEARLY ENERGY COST:
5
AVG ESTIMATED YEARLY ENERGY COST ON HIGH:
7
BLADE FINISH METHOD:
Painted
BLADE MATERIAL:
Composite
BLADE SWEEP:
52
CARTON CUBIC FEET:
1.56
CARTONS PER UNIT:
1
CASE HEIGHT:
8.58''
CASE LENGTH:
24.61
CASE WEIGHT POUNDS:
15.9
CASE WIDTH:
12.8''
CFM LOW:
538
CFM MEDIUM:
3371
COMPATIBLE ACCESSORIES:
CCK8002BN DR1-12BN DR1-18BN DR1-24BN DR1-36BN DR1-48BN DR1-60BN DR1-72BN DR1-CPBN SCK1-52BN
COMPATIBLE CONTROLS:
WFR8159
COMPATIBLE WALL CONTROLS:
TW306
CONTROL TYPE:
Handheld
CURRENT DRAW LOW:
0.05
CURRENT DRAW MEDIUM:
0.11
DAMP RATED:
Yes
DOE CLASSIFICATION:
LSSD
FAN ENERGY STAR 5:
Yes
INCLUDED CONTROL:
TR205D
LEADWIRE:
54
MOTOR REVERSIBLE:
Yes
REGULATED PRODUCT:
Yes
RPM LOW (II):
28
RPM MEDIUM (IV):
105
SAFETY RATING:
UL APPROVED CUL APPROVED
VOLTAGE CYCLES:
60 HZ
WATTS LOW:
3
WATTS MEDIUM:
7
HEIGHT:
9.98
HEIGHT RANGE:
0-15''
WIDTH:
52.00
WIDTH RANGE:
50-55''
WALL:
YES
FINISH:
NICKEL
LOCAL_ON_DISPLAY:
1
ON DISPLAY IN SHOWROOM:
Yes
IN STOCK IN SHOWROOM:
No
Standard Style:
Traditional
ADDITIONAL INFO2:
DC MOTOR WITH REVERSE SWITCH VARIABLE FAN SPEEDS LIGHT CONTROL SLEEP TIMER HOME AWAY FRESH AIR
ADDITIONAL INFO3:
ENERGY STAR MOST EFFICIENT 2020
ADDITIONAL INFO4:
SET OF (3) 52 INCH DAMP RATED BLACK OR BRUSHED NICKEL BLADES INCLUDED
CANOPY1:
Diameter- 6.34 Height- 2.83''
CANOPY2:
Diameter- 6.52 Height- 2.59''
LIGHT KIT INCLUDED:
No
MOTOR RPM1:
70
BLADE REVERSIBLE:
No
CAP INCLUDED:
No
CEC UPLOADED:
Yes
CEILING TO BLADE EDGE:
4
CEILING TO BLADE EDGE1:
9.15
CEILING TO BOTTOM (NO LK):
9.98
COMPATIBLE CONTROLS1:
WFR8520
DOE-FTC UPLOADED:
Yes
HAMONIZED CODE:
8414.51.3000
LEAD WIRE:
54
REVERSE SWITCH LOCATION:
Control
RPM MEDIUM (IV)1:
50
CEILING:
YES
AVAILABLE FOR PURCHASE:
YES
ADDITIONAL INFO5:
TR205 HANDHELD REMOTE WITH CR2032 BATTERIES INCLUDED
BLADE FINISH METHOD TYPE:
PAINTED
EXEMPT FROM DOE PROCEDURE:
NO
FAN ENERGY STAR 4:
YES
MAXIMUM SLOPE DEGREE:
19
MOTOR FINISH METHOD TYPE:
PLATED
NUMBER OF BLADES:
3
PRODUCT CERTIFICATION LABEL:
UL/CUL
QUANTITY AVAILABLE AT MANUFACTURER:
300
More Info {1}:
5876 CFM ON HIGH
More Info {2}:
COMPATIBLE WITH MOST SMART HOME DEVICES (REQUIRED CONTROLS SOLD SEPARATELY)
More Info {3}:
DC MOTOR WITH REVERSE SWITCH VARIABLE FAN SPEEDS LIGHT CONTROL SLEEP TIMER HOME AWAY FRESH AIR
More Info {4}:
ENERGY STAR MOST EFFICIENT 2020
More Info {5}:
SET OF (3) 52 INCH DAMP RATED BLACK OR BRUSHED NICKEL BLADES INCLUDED
More Info {6}:
TR205 HANDHELD REMOTE WITH CR2032 BATTERIES INCLUDED
AVG ENERGY USE WATTS:
17
CANOPY DIAMETER:
5.71 DIA
CANOPY HEIGHT:
2.23 H''
CASE QUANTITY:
1
CURRENT DRAW HIGH:
0.36
DOEFTC UPLOADED:
YES
DOWNROD LENGTH:
4.5
HOUSING DIAMETER:
11.02
INCLUDED CONTROL TYPE:
HANDHELD
MAX CEILING SLOPE:
19
MAX WATT:
26
NUMBER OF SPEEDS:
16
RPM HIGH (VI):
173
