LED Adjustable Vapor Tight Fixture; 20W; 5000K; Gray Finish; 100-277V {ADDITIONAL FINISH INFORMATION: ''Gray''}
- STYLE:
- Utility
- BULB DIMMABLE:
- Non-Dimmable
- BULB HOURS:
- 50000
- BULB SHAPE:
- Integrated LED
- BULB TYPE:
- LED
- HARMONIZED CODES:
- 9405.42.6000
- HEIGHT:
- 12.40
- LUMENS:
- 2200L
- SHIP CARTON HEIGHT:
- 4.72''
- SHIP CARTON LENGTH:
- 12.8
- SHIP CARTON WIDTH:
- 4.72''
- SHIP WEIGHT:
- 2.65
- VOLTAGE:
- 277V
- WARRANTY:
- 5 Year Limited - Fixtures
- CARTON CUBIC FEET:
- 0.165
- CARTONS PER UNIT:
- 1
- CEC:
- T20 EXEMPT - FIXTURES NOT REGULATED
- COLOR TEMPRATURE:
- Natural Light
- CRI:
- 80+
- IP RATING:
- IP65
- LOCATION RATING:
- Wet
- OPERATING TEMP:
- -40C (-40F) TO +45C (+113F)
- PACK TYPE:
- Box
- WIDTH:
- 5.68
- FINISH:
- GRAY
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- BULBS:
- 20W WATT:20W WATT:1
- STANDARD STYLE:
- TRADITIONAL
- DIMMABLE:
- Non-Dimmable
- WIDTH RANGE:
- 0-15''
- HEIGHT MAX:
- 12.4''
- AVAILABLE FOR PURCHASE:
- YES
- REQUIRED (NOT INCLUDED):
- 1 INTEGRATED BULBS
- QUANTITY AVAILABLE AT MANUFACTURER:
- 133
- ANSI BASE:
- INTEGRATED
- CONNECTION:
- DIRECT WIRED
- FCC COMPLIANT:
- YES
- FINISH FAMILY:
- GRAY
- INDOOR OUTDOOR:
- OUTDOOR
- INSTALLATION NOTES:

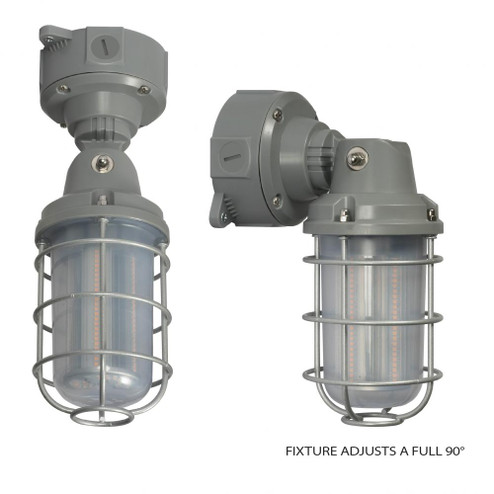

- ADJUSTS 90 DEGREES IN MULTIPLE INCREMENTS. IF WALL MOUNTED EXTENDS RANGES FROM 10.20 IN. TO 12.40 IN.
- MATERIAL:
- POLYCARBONATE (PC)
- MOUNTING PROCEDURE:
- CEILING/WALL
- NUMBER OF LAMPS:
- 1
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- SDS CLASS:
- LED_FIXTURE
- TEMPERATURE (CCT):
- 5000K
- WEIGHT LB.:
- 2.52
- LAMPS:
- YES
- AMPS:
- 0.200-0.072A
- SDS SHEET LINK:
- #REF!
- BULB KELVIN:
- NATURAL LIGHT
- MAX HEIGHT:
- 12.4''
- CA PROP-65:
- LEAD
- CEC WEB TEXT:
- LAWFUL FOR SALE
- OPERATING TEMPRATURE:
- -40C (-40F) TO +45C (+113F)
- REPLACEABLE LIGHT SOURCE:
- NO
- SAFETY LISTING:
- CULUS - LISTED
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- CCT SELECTABLE:
- NO
- WATTAGE SELECTABLE:
- NO
- INCANDESCENT EQUIVALENT:
- 100W
- OPERATING FREQUENCY:
- 50/60HZ
- REPLACES:
- #REF!
- AVG RATED HOURS:
- 50000
- BULB SHAPE1:
- INTEGRATED LED
- BULB TYPE1:
- LED
- COLOR TEMPERATURE:
- NATURAL LIGHT
- EACH HEIGHT:
- 4.72''
- EACH LENGTH:
- 12.8
- EACH WIDTH:
- 4.72''
- TARIFF CODE:
- 9405.42.6000
- BAA COMPLIANT:
- NO
- EACH CUBE:
- 0.165
- EACH QUANTITY:
- 1
- EFFICACY:
- 110.00 LPW
- JA8 COMPLIANT:
- NO
- R9 VALUE:
- 22
- SHORT DESCRIPTION:
- LED ADJUSTABLE VAPOR TIGHT
- TITLE 20 COMPLIANT:
- NO
- TITLE 24 COMPLIANT:
- NO
