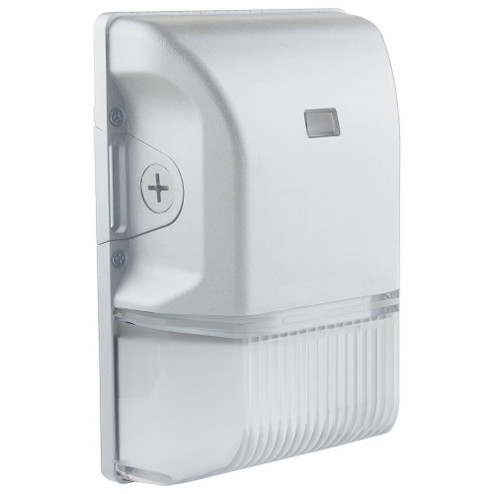

LED Small Wall Pack; 20W; CCT Selectable 3K/4K/5K; White Finish; 100-277V {ADDITIONAL FINISH INFORMATION: ''White''}
- AVAILABLE FOR PURCHASE:
- YES
- REQUIRED (NOT INCLUDED):
- 1 INTEGRATED BULBS
- STYLE:
- UTILITY
- BULB HOURS:
- 50000
- BULB TYPE:
- LED
- DIMMABLE:
- YES-DIMMABLE
- EXTENDS:
- 3.09
- HARMONIZED CODES:
- 9405.42.6000
- LUMENS:
- 2608.9L/2920.8L/2703.4L
- SHIP CARTON HEIGHT:
- 8.9''
- SHIP CARTON LENGTH:
- 6.1
- SHIP CARTON WIDTH:
- 3.5''
- SHIP WEIGHT:
- 2.03
- WARRANTY:
- 5-YEARS
- BEAM ANGLE:
- 100
- CARTON CUBIC FEET:
- 0.11
- CARTONS PER UNIT:
- 1
- CCT SELECTABLE:
- YES
- CEC:
- T20 EXEMPT - FIXTURES NOT REGULATED
- COLOR TEMPRATURE:
- WARM TO COOL WHITE
- CONNECTION:
- HARDWIRE
- CRI:
- 80+
- DIMMABLE FUNCTION:
- 0-10V DIMMING
- DLC APPROVED:
- YES
- DLC CLASSIFICATION:
- PREMIUM
- DLC ID:
- S-GL6EYJ
- DLC PRIMARY USE:
- OUTDOOR NON-CUTOFF AND SEMI-CUTOFF WALL-MOUNTED AREA LUMINAIRES
- FCC COMPLIANT:
- YES
- FEATURE 1:
- CCT SELECTABLE
- FEATURE 2:
- 0-10V DIMMABLE
- FEATURE 3:
- MAINTENANCE FREE - NO BULB TO CHANGE
- FEATURE 4:
- DIE-CAST ALUMINUM BODY
- FEATURE 5:
- IP65 WET RATED FOR OUTDOOR USE
- FEATURE 6:
- UV STABILIZED POWDER COATED FINISH
- FINISH:
- WHITE
- FIXTURE SHAPE:
- RECTANGLE
- INDOOR OUTDOOR:
- OUTDOOR
- IOT ENABLED:
- NO
- IP RATING:
- IP65
- LENS MATERIAL:
- POLYCARBONATE (PC)
- LOCATION RATING:
- WET
- LONG DESCRIPTION:
- SATCO NUVO'S 65-749 20W LED SMALL WALL PACK IS NOW CCT SELECTABLE. AVAILABLE IN A WHITE FINISH AND FEATURING LIGHTING CHOICES FROM WARM COOL AND NATURAL LIGHT THIS FIXTURE IS PERFECT FOR ALL OF YOUR LIGHTING NEEDS. THIS PREMIUM WALL PAC...
- MATERIAL:
- CAST ALUMINUM
- MOUNTING PROCEDURE:
- WALL
- OPERATING FREQUENCY:
- 50/60HZ
- OPERATING TEMP:
- -20C (-4F) TO +45C (+113F)
- PACK TYPE:
- BOX
- PHOTOCELL:
- HAS PHOTOCELL
- ROHS COMPLIANT:
- YES
- SDS CLASS:
- LED_FIXTURE
- SURGE PROTECTION:
- 2.5KV
- TEMPERATURE (CCT):
- 3000K/4000K/5000K
- WEIGHT LB.:
- 1.98
- QUANTITY AVAILABLE AT MANUFACTURER:
- 113
- LOCAL_ON_DISPLAY:
- 0
- ON DISPLAY IN SHOWROOM:
- No
- LOCAL_COUNT_ON_DISPLAY:
- 0
- LOCAL_SALE:
- 0
- LOCAL_COUNT_SALE:
- 0
- LOCAL_IN_STOCK:
- 0
- IN STOCK IN SHOWROOM:
- No
- LOCAL_COUNT-IN_STOCK:
- 0
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- HEIGHT:
- 8.59
- HEIGHT RANGE:
- 0-15''
- WIDTH:
- 5.81
- WIDTH RANGE:
- 0-15''
- AMPS:
- 0.167-0.072A
- SDS SHEET LINK:
- #REF!
- B_U_G_RATING:
- B1-U3-G2
- QUANTITY IN PACK:
- 1
- NUMBER OF LAMPS:
- 1
- LAMPS:
- YES
- BULB KELVIN:
- WARM TO COOL WHITE
- BULB SHAPE:
- INTEGRATED LED
- ANSI BASE:
- INTEGRATED
- BEAM SPREAD:
- 100
- CA PROP-65:
- LEAD
- CEC WEB TEXT:
- LAWFUL FOR SALE
- HID EQUIV:
- 100W-150W
- NSF APPROVED:
- YES
- OPERATING TEMPRATURE:
- -20C (-4F) TO +45C (+113F)
- REPLACEABLE LIGHT SOURCE:
- NO
- SAFETY LISTING:
- CULUS - CERTIFIED
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- IMAGE INFO:
- ''65-749.JPG:DEFAULT''
- WATTAGE SELECTABLE:
- NO
- INCANDESCENT EQUIVALENT:
- 100W
- REPLACES:
- #REF!
- AVG RATED HOURS:
- 50000
- BULB SHAPE1:
- INTEGRATED LED
- BULB TYPE1:
- LED
- COLOR TEMPERATURE:
- WARM TO COOL WHITE
- EACH HEIGHT:
- 8.9''
- EACH LENGTH:
- 6.1
- EACH WIDTH:
- 3.5''
- TARIFF CODE:
- 9405.42.6000
- BAA COMPLIANT:
- NO
- EACH CUBE:
- 0.11
- EACH QUANTITY:
- 1
- EFFICACY:
- 130.45/146.04/135.17 LPW
- JA8 COMPLIANT:
- NO
- ROMANCE COPY:
- SATCO NUVO'S 20W LED SMALL WALL PACK IS NOW CCT SELECTABLE. AVAILABLE IN THREE FINISHES AND FEATURING LIGHTING CHOICES FROM WARM COOL AND NATURAL LIGHT THIS FIXTURE IS PERFECT FOR ALL OF YOUR LIGHTING NEEDS. THIS PREMIUM WALL PACK HAS A...
- SHORT DESCRIPTION:
- LED SMALL WALL PACK W/PHOTOCEL
- TITLE 20 COMPLIANT:
- EXEMPT
- TITLE 24 COMPLIANT:
- NO
- TOTAL HARMONIC DISTORTION:
- 20%
- WALL:
- YES
- POWER FACTOR:
- 0.99
- ORDER IN MULTIPLES OF:
- 1
- STANDARD STYLE:
- OUTDOOR WALL LIGHTS
- CATEGORY:
- WALL PACK
- SUB CATEGORY:
- STANDARD
- COUNTRY OF ORIGIN:
- VIETNAM
- 4/29/2025 14:
- 18
- HAS CAMERA:
- NO
- HAS EMERGENCY BATTERY:
- NO
