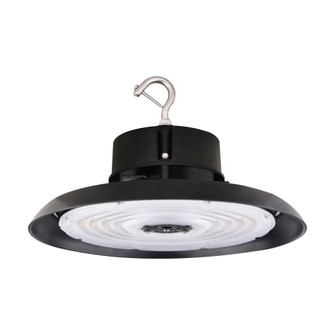

150W UFO LED High Bay; 21000 Lumens; 4000K; 277-480 Volt; 0-10V Dimmable; Black Finish {ADDITIONAL FINISH INFORMATION: ''Black''}
- BULB HOURS:
- 50000
- BULB TYPE:
- LED
- DIAMETER:
- 11.81
- DIMMABLE:
- Yes-Dimmable
- LUMENS:
- 21000L
- SHIP CARTON HEIGHT:
- 7.68''
- SHIP CARTON LENGTH:
- 14.17
- SHIP CARTON WIDTH:
- 14.17''
- SHIP WEIGHT:
- 6.83
- WARRANTY:
- 5 Year Limited - Fixtures
- WIRE INCLUDED:
- 72
- BEAM ANGLE:
- 90
- BULB DIMMABLE:
- 0-10V Dimming Only
- CARTON CUBIC FEET:
- 0.8924
- CARTONS PER UNIT:
- 1
- CEC:
- T20 EXEMPT - FIXTURES NOT REGULATED
- COLOR TEMPRATURE:
- Cool White
- CRI:
- 80
- DLC APPROVED:
- Yes
- DLC ID:
- PLDPESZL2L1G
- IP RATING:
- IP65
- LOCATION RATING:
- Wet
- OPERATING TEMP:
- -40C (-40F) TO +45C (+113F)
- PACK TYPE:
- Box
- SURGE PROTECTION:
- Built-in surge protection - 4KV
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- HEIGHT:
- 7.99
- WIDTH:
- 11.81
- REQUIRED (NOT INCLUDED):
- 1 INTEGRATED BULBS
- BULB SHAPE:
- Integrated LED
- HARMONIZED CODES:
- 9405.11.6020
- DIMMABLE FUNCTION:
- 0-10V DIMMING ONLY
- HEIGHT RANGE:
- 0-15''
- AVAILABLE FOR PURCHASE:
- YES
- QUANTITY AVAILABLE AT MANUFACTURER:
- 17
- FINISH:
- BLACK
- STANDARD STYLE:
- TRADITIONAL
- ANSI BASE:
- INTEGRATED
- CCT SELECTABLE:
- NO
- DIMMING TYPE:
- 0-10V
- DLC CLASSIFICATION:
- PREMIUM
- DLC PRIMARY USE:
- HIGH-BAY LUMINAIRES FOR COMMERCIAL AND INDUSTRIAL BUILDINGS
- FCC COMPLIANT:
- YES
- FEATURE 1:
- INTEGRATED SENSOR PORT
- FEATURE 2:
- IP65
- FEATURE 3:
- 4KV SURGE PROTECTION
- FEATURE 4:
- 6 FOOT WHIP
- FEATURE 5:
- 90 DEGREE BEAM ANGLE
- FEATURE 6:
- 50000 HOURS
- FEATURE 7:
- 5 YEAR WARRANTY
- FINISH FAMILY:
- BLACK
- HAS DRIVER:
- YES
- HID EQUIV:
- 400W
- HOUSING COLOR:
- BLACK
- IMPACT RATING (IK):
- IK08
- INDOOR OUTDOOR:
- INDOOR
- LENS FINISH:
- CLEAR
- LENS MATERIAL:
- POLYCARBONATE (PC)
- LONG DESCRIPTION:
- INTRODUCING 65-803 SATCO'S 150-WATT 277-480 VOLT 4000K BLACK UFO LED HIGH BAY. THE SUPERIOR VALUE OFFERED IN OUR NEW COMMERCIAL LED HIGH BAY UFO'S MEETS THE NEEDS OF NUMEROUS APPLICATIONS. A FEW ADD-ONS THAT ARE AVAILABLE FOR PURCHASE ...
- MATERIAL:
- DIE-CAST ALUMINUM
- NSF APPROVED:
- YES
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- SDS CLASS:
- LED_FIXTURE
- SLOPED CEILING COMPATIBLE:
- NO
- TEMPERATURE (CCT):
- 4000K
- WEIGHT LB.:
- 6.58
- CEILING:
- YES
- STYLE:
- UTILITY
- AMPS:
- 0.542-0.313A
- SDS SHEET LINK:
- #REF!
- BULB KELVIN:
- COOL WHITE
- BEAM SPREAD:
- 90
- CA PROP-65:
- LEAD
- INCANDESCENT EQUIVALENT:
- 1000W
- OPERATING TEMPRATURE:
- -40C (-40F) TO +45C (+113F)
- REPLACEABLE LIGHT SOURCE:
- NO
- SAFETY LISTING:
- CULUS
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- MOUNTING PROCEDURE:
- CEILING
- CONNECTION:
- HARDWIRE
- WATTAGE SELECTABLE:
- NO
- REPLACES:
- #REF!
- AVG RATED HOURS:
- 50000
- BULB SHAPE1:
- INTEGRATED LED
- BULB TYPE1:
- LED
- COLOR TEMPERATURE:
- COOL WHITE
- EACH HEIGHT:
- 7.68''
- EACH LENGTH:
- 14.17
- EACH WIDTH:
- 14.17''
- TARIFF CODE:
- 9405.11.6020
- WIRE LENGTH:
- 72
- BAA COMPLIANT:
- NO
- DIMMABLE DOWN TO:
- 100 TO 20 PERCENT
- EACH CUBE:
- 0.8924
- EACH QUANTITY:
- 1
- EFFICACY:
- 140.00 LPW
- JA8 COMPLIANT:
- NO
- SHORT DESCRIPTION:
- LED UFO HIGHBAY 150W/4000K
- TITLE 20 COMPLIANT:
- NO
- TITLE 24 COMPLIANT:
- NO
- TOTAL HARMONIC DISTORTION:
- 15%
