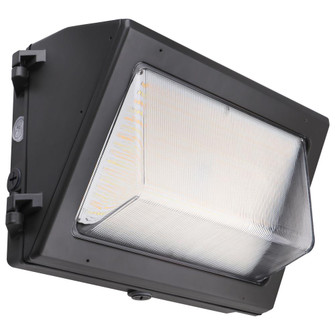

CCT and Wattage Adjustable LED Wall Pack; Integrated Bypassable Photocell; CCT Selectable from 3000, 4000 or 5000K; Wattage Selectable from 80, 100, or 120 Watt; 120-347 Volt {ADDITIONAL FINISH INFORMATION: ''Bronze''}
- AVAILABLE FOR PURCHASE:
- YES
- REQUIRED (NOT INCLUDED):
- 1 INTEGRATED BULBS
- BULB HOURS:
- 50000
- BULB SHAPE:
- INTEGRATED LED
- BULB TYPE:
- LED
- DIMMABLE:
- YES-DIMMABLE
- EXTENDS:
- 7.39
- HARMONIZED CODES:
- 9405.42.6000
- LUMENS:
- 11360L-17400L
- SHIP CARTON HEIGHT:
- 9.84''
- SHIP CARTON LENGTH:
- 15.63
- SHIP CARTON WIDTH:
- 11.69''
- SHIP WEIGHT:
- 10.14
- WARRANTY:
- 5 YEAR LIMITED - FIXTURES
- BEAM ANGLE:
- 110
- CARTON CUBIC FEET:
- 1.0405
- CARTONS PER UNIT:
- 1
- CEC:
- T20 EXEMPT - FIXTURES NOT REGULATED
- COLOR TEMPRATURE:
- WARM TO COOL WHITE
- CRI:
- 80+
- DIMMABLE FUNCTION:
- 0-10V DIMMING ONLY
- DLC APPROVED:
- YES
- DLC ID:
- PLQPRK37PQUE
- IP RATING:
- IP65
- LOCATION RATING:
- WET
- OPERATING TEMP:
- -40C (-40F) TO +50C (+122F)
- PHOTOCELL:
- YES - BYPASSABLE
- SURGE PROTECTION:
- BUILT-IN SURGE PROTECTION - 4KV
- QUANTITY AVAILABLE AT MANUFACTURER:
- 168
- FINISH:
- BRONZE
- LOCAL_ON_DISPLAY:
- 0
- ON DISPLAY IN SHOWROOM:
- No
- LOCAL_COUNT_ON_DISPLAY:
- 0
- LOCAL_SALE:
- 0
- LOCAL_COUNT_SALE:
- 0
- LOCAL_IN_STOCK:
- 0
- IN STOCK IN SHOWROOM:
- No
- LOCAL_COUNT-IN_STOCK:
- 0
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- HEIGHT:
- 9.35
- HEIGHT RANGE:
- 0-15''
- WIDTH:
- 14.36
- STANDARD STYLE:
- TRADITIONAL
- IMAGE INFO:
- ''''
- STYLE:
- TRADITIONAL
- ANSI BASE:
- INTEGRATED
- B_U_G_RATING:
- B2-U4-G5
- CCT SELECTABLE:
- YES
- DIMMING TYPE:
- 0-10V
- DLC CLASSIFICATION:
- PREMIUM
- DLC PRIMARY USE:
- OUTDOOR NON-CUTOFF AND SEMI-CUTOFF WALL-MOUNTED AREA LUMINAIRES
- FCC COMPLIANT:
- YES
- FEATURE 1:
- WATTAGE SELECTABLE 80W/100W/120W
- FEATURE 2:
- CCT SELECTABLE 3000K/4000K/5000K
- FEATURE 3:
- INTEGRATED BY-PASSABLE PHOTOCELL
- FEATURE 4:
- 4KV SURGE PROTECTION
- FEATURE 5:
- 50000 HOURS
- FEATURE 6:
- DLC PREMIUM
- FEATURE 7:
- 5 YEAR WARRANTY
- FINISH FAMILY:
- BRONZE
- HID EQUIV:
- 200W-400W
- INDOOR OUTDOOR:
- INDOOR OUTDOOR
- IOT ENABLED:
- NO
- LENS MATERIAL:
- GLASS
- LONG DESCRIPTION:
- INTRODUCING 65-758 SATCO
- MATERIAL:
- DIE-CAST ALUMINUM
- MOUNTING PROCEDURE:
- WALL
- NUMBER OF LAMPS:
- 1
- PACK TYPE:
- BOX
- POWER FACTOR:
- >0.9
- QUANTITY IN PACK:
- 1
- SDS CLASS:
- LED_FIXTURE
- TEMPERATURE (CCT):
- 3000K/4000K/5000K
- WATTAGE SELECTABLE:
- YES
- WEIGHT LB.:
- 9.5
- LAMPS:
- YES
- AMPS:
- 0.667-0.231/0.833-0.288/1.000-0.346A
- SDS SHEET LINK:
- #REF!
- BULB KELVIN:
- WARM TO COOL WHITE
- BEAM SPREAD:
- 110
- CA PROP-65:
- LEAD
- INCANDESCENT EQUIVALENT:
- 600W-1000W
- OPERATING TEMPRATURE:
- -40C (-40F) TO +50C (+122F)
- REPLACEABLE LIGHT SOURCE:
- NO
- SAFETY LISTING:
- CULUS - LISTED
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- ROHS COMPLIANT:
- YES
- CONNECTION:
- HARDWIRE
- CEC WEB TEXT:
- LAWFUL FOR SALE
- OPERATING FREQUENCY:
- 50/60HZ
- REPLACES:
- #REF!
- AVG RATED HOURS:
- 50000
- BULB SHAPE1:
- INTEGRATED LED
- BULB TYPE1:
- LED
- COLOR TEMPERATURE:
- WARM TO COOL WHITE
- EACH HEIGHT:
- 9.84''
- EACH LENGTH:
- 15.63
- EACH WIDTH:
- 11.69''
- TARIFF CODE:
- 9405.42.6000
- BAA COMPLIANT:
- NO
- DIMMABLE DOWN TO:
- 100 TO 20 PERCENT
- EACH CUBE:
- 1.0405
- EACH QUANTITY:
- 1
- EFFICACY:
- 142.00/143.80/145.00 LPW
- JA8 COMPLIANT:
- NO
- ROMANCE COPY:
- INTRODUCING SATCO
- SHORT DESCRIPTION:
- LED WALL PACK CCT & WATT ADJ
- TITLE 20 COMPLIANT:
- NO
- TITLE 24 COMPLIANT:
- NO
- TOTAL HARMONIC DISTORTION:
- 15%
- WALL:
- YES
